EMC Brocade 6505 24x 16Gb SFP (24-Active) FC SAN Switch EM-6505-12-8G-0R
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

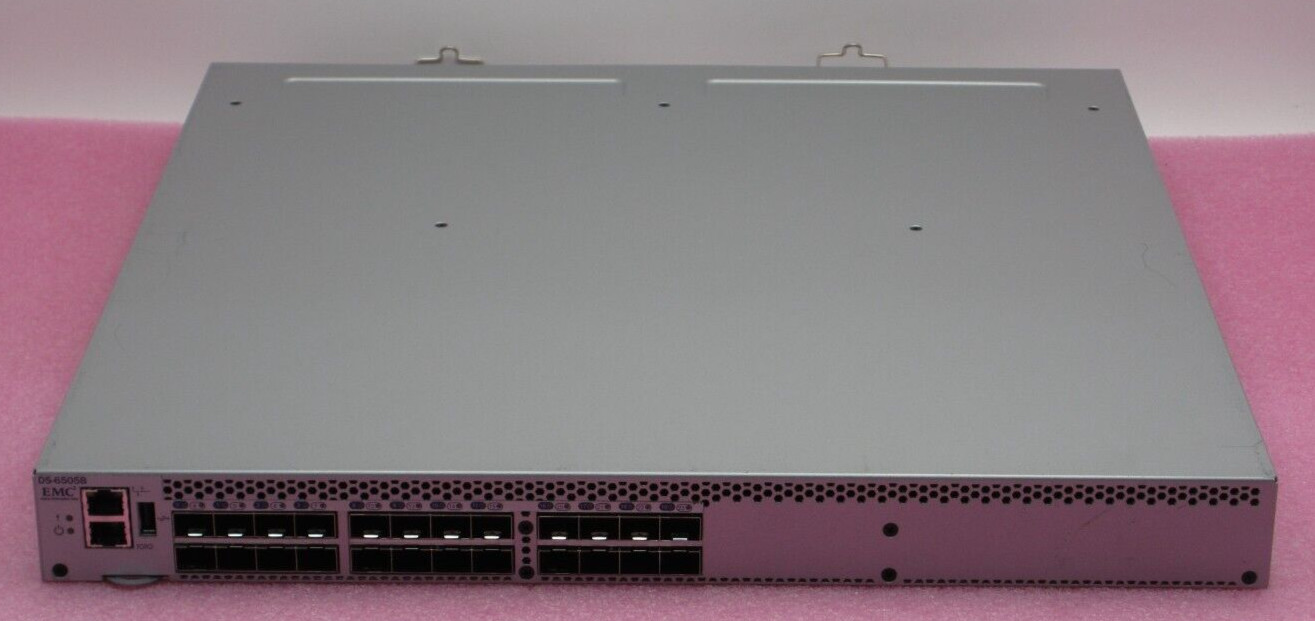

EMC Brocade 6505 24x 16Gb SFP (24-Active) FC SAN Switch EM-6505-12-8G-0R
Price: GB $480.53
EMC Brocade 6505 24x 16Gb SFP (24-Active) FC SAN Switch EM-6505-12-8G-0RModel: DS-6505BBrocade Part Number:EM-6505-12-8G-0R
In Good Condition, Full Working OrderTested2 Year Warranty
Back to Front Airflow
Additional 12 Ports Upgrade License -24 x 16Gb Active Ports total
Included:
  • 1 xEMC Brocade 6505 24x 16Gb SFP (24-Active) FC SAN Switch EM-6505-12-8G-0R
  • 2 x Power Easy-to-Use Entry-Level SAN Switch for Private Cloud StorageTo keep pace with growing business demands, data centers are transitioning to highly virtualized, private cloud storage environments. This approach enables organizations to consolidate and simplify their IT resources, resulting in increased business agility and lower capital and operating expenses. But virtualization is not without its challenges. Data centers must keep up with the explosive data growth and dynamic changes driven by virtualized workloads. Selecting the right network is key to realizing the full benefits of these cloud-based architectures.
    The Brocade 6505 Switch with Gen 5 Fibre Channel provides exceptional price/performance value, combining flexibility, simplicity, and enterprise-class functionality in an entry-level switch. Designed to enable maximum flexibility and reliability.
    A simplified deployment process and a point-and-click user interface make the Brocade 6505 both powerful and easy to use. Moreover, the Brocade 6505 offers low-cost access to industry-leading Gen 5 Fibre Channel technology while providing "pay-as-you-grow" scalability to meet the needs of an evolving storage environment.
    Exceptional Price/Performance for Growing SAN WorkloadsThe Brocade 6505 combines market-leading throughput with an affordable switch form factor, making it ideal for growing SAN workloads. The 24 ports produce an aggregate 384 Gbps full-duplex throughput; any eight ports can be trunked for 128 Gbps Inter-Switch Links (ISLs). Exchange-based Dynamic Path Selection (DPS) optimizes fabric-wide performance and load balancing by automatically routing data to the most efficient and available path in the fabric. It augments Brocade ISL Trunking to provide more effective load balancing in certain configurations.
    In addition, the Brocade 6505 provides a low Total Cost of Ownership (TCO) thanks to a 12-port base configuration, easy administration, 1U footprint, and low-energy consumption—0.22 watts per Gbps and 3.3 watts per port. Enterprise-class capabilities combined with a low TCO yield 40 percent higher performance compared to 10 Gigabit Ethernet (GbE) alternatives at a similar cost.
    Industry-Leading Technology That Is Flexible, Simple, and Easy to UseThe Brocade 6505 delivers industry-leading Gen 5 Fibre Channel technology within a flexible, simple, and easy-to-use solution. The base configuration includes 12 ports, with up to 24 ports on demand. In addition to providing best-in-class scalability, the Brocade 6505 is easy to deploy with the Brocade EZSwitchSetup wizard and the ClearLink Diagnostic Ports (D_Ports) feature, which simplifies setup.
    Features
    • Provides exceptional price/performance value, combining flexibility, simplicity, and enterprise-class functionality in a 24-port, 1U entry-level switch
    • Enables fast, easy, and cost-effective scaling from 12 to 24 ports
    • Leverages Brocade Fabric Vision technology's powerful monitoring, management, and diagnostic tools to simplify administration, increase uptime, and reduce costs
    • Helps pinpoint problems faster and simplify SAN configuration and management with Brocade Network Advisor
    • Simplifies deployment with the Brocade EZSwitchSetup wizard and supports high-performance fabrics by using Brocade ClearLink D_Ports to identify optic and cable issues
    • Maximizes resiliency with non-disruptive software upgrades and an optional redundant power supply

    Boot Log:

    sw0:admin> version
    Kernel: 2.6.14.2
    Fabric OS: v8.1.2d
    Made on: Thu May 24 00:55:40 2018
    Flash: Wed Oct 10 12:49:50 2018
    BootProm: 1.0.11sw0:admin> switchshow
    switchName: sw0
    switchType: 118.1
    switchState: Online
    switchMode: Native
    switchRole: Principal
    switchDomain: 1
    switchId: fffc01
    switchWwn: 10:00:c4:f5:7c:23:e9:c4
    zoning: OFF
    switchBeacon: OFF
    HIF Mode: OFFIndex Port Address Media Speed State 0 0 010000 -- N16 No_Module FC
    1 1 010100 -- N16 No_Module FC
    2 2 010200 -- N16 No_Module FC
    3 3 010300 -- N16 No_Module FC
    4 4 010400 -- N16 No_Module FC
    5 5 010500 -- N16 No_Module FC
    6 6 010600 -- N16 No_Module FC
    7 7 010700 -- N16 No_Module FC
    8 8 010800 -- N16 No_Module FC
    9 9 010900 -- N16 No_Module FC
    10 10 010a00 -- N16 No_Module FC
    11 11 010b00 -- N16 No_Module FC
    12 12 010c00 -- N16 No_Module FC
    13 13 010d00 -- N16 No_Module FC
    14 14 010e00 -- N16 No_Module FC
    15 15 010f00 -- N16 No_Module FC
    16 16 011000 -- N16 No_Module FC
    17 17 011100 -- N16 No_Module FC
    18 18 011200 -- N16 No_Module FC
    19 19 011300 -- N16 No_Module FC
    20 20 011400 -- N16 No_Module FC
    21 21 011500 -- N16 No_Module FC
    22 22 011600 -- N16 No_Module FC
    23 23 011700 -- N16 No_Module FCsw0:admin> chassisshowFAN Unit: 1
    Fan Direction: Reverse (Non-portside Intake)
    Time Awake: 0 daysFAN Unit: 2
    Fan Direction: Reverse (Non-portside Intake)
    Time Awake: 0 daysPOWER SUPPLY Unit: 1
    Power Source: AC
    Time Awake: 0 daysPOWER SUPPLY Unit: 2
    Power Source: AC
    Time Awake: 0 daysCHASSIS/WWN Unit: 1
    Header Version: 2
    Power Usage: -32W
    Factory Part Num: 40-1000737-03
    Factory Serial Num: CCD1905M02G
    Manufacture: Day: 6 Month: 1 Year: 2016
    Update: Day: 21 Month: 8 Year: 2023
    Time Alive: 2626 days
    Time Awake: 0 days
    ID: EMC0000
    Part Num: CONTRX0000
    Serial Num: BRCCCD1905M02Gsw0:admin> Second Ports on Demand license - additional 12 port upgrade license

    VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED£300.00 excluding VAT
    VAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UK
    LJM316905 316906 316907 316908
