Manufacturer: Eaton

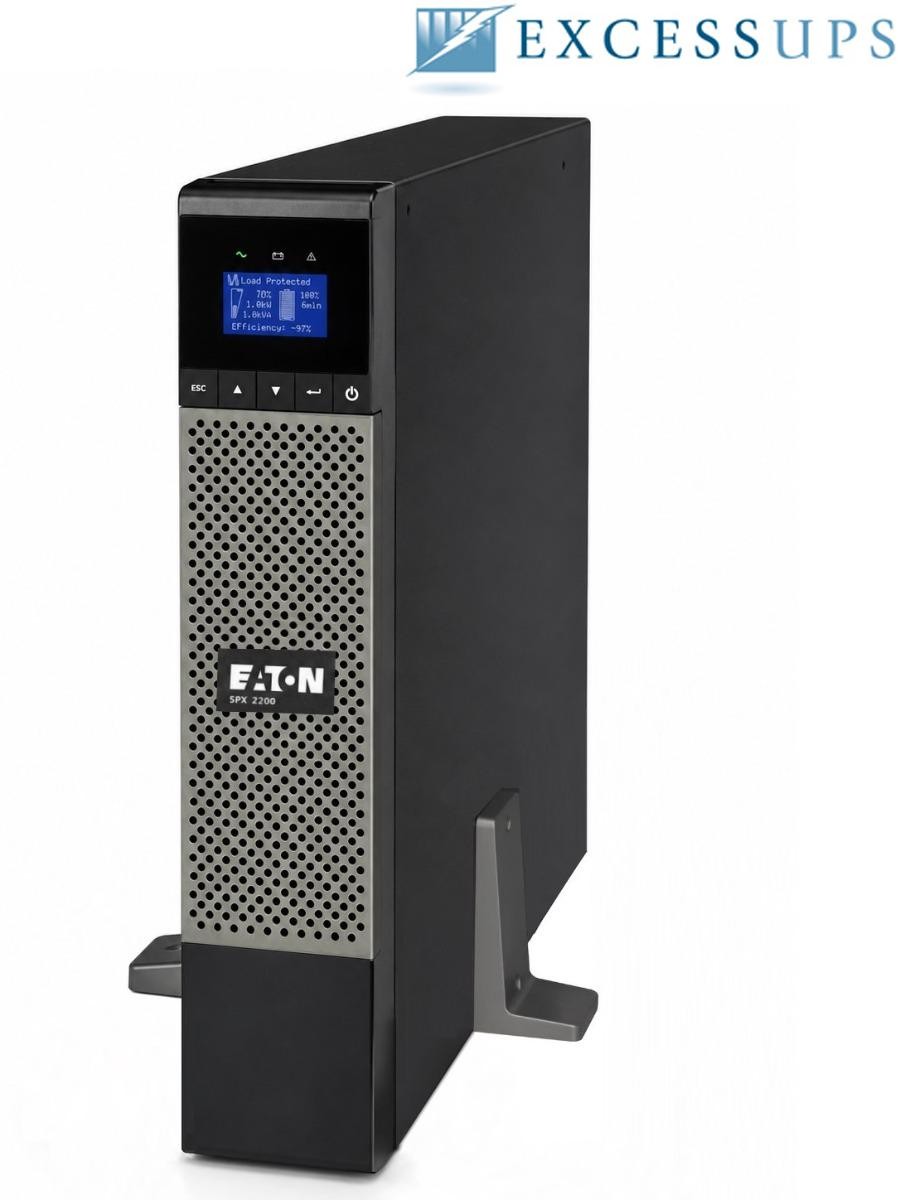

Model: Eaton 5PX 2200VA 1920W Tower, 120V
Condition: New batteries, refurbished UPS
Part Number: 5PX2200RT
Maximum output: 1920W / 2200VA
Typical backup time at half load: 7 minutes (960 Watts)
Typical backup time at full load: 3 minutes (1920 Watts)
Warranty: 1 Year Full Replacement Warranty
Description: The Eaton 5PX2200RT Tower is a line-interactive tower UPS designed to provide reliable power protection for servers, network switches, storage systems, and critical IT equipment. Delivering 2200VA / 1920W of pure sine wave output power, it features Automatic Voltage Regulation (AVR), Eaton ABM® advanced battery management technology, hot-swappable batteries, and an LCD graphical display for real-time monitoring. With support for up to four external battery modules, optional network management capabilities, and up to 97% efficiency, the 5PX2200RT is ideal for business-critical power protection and extended runtime applications.
Eaton 5PX - 1950VA 1920W Tower 120V 5PX2200RT - User Manual
5PX2200RT - Eaton UPS 1950VA Specifications:
Key Features UPS TopologyLine-InteractiveForm FactorTowerRated Power Capacity2200VA / 1920WOutput Power Factor0.98Waveform TypePure Sine WaveInput Voltage120VOutput Voltage120VInput ConnectionNEMA 5-20POutput Connections(8) NEMA 5-20RInput Cord Length8 ftEfficiencyUp to 97%Automatic Voltage Regulation (AVR)YesHot-Swappable BatteriesYesExtended Runtime SupportYesExternal Battery Module CompatibilityEaton 5PXEBM48RTSupports Up To4 External Battery ModulesUser InterfaceLCD Graphical DisplayApplicationServers, switches, storage, and networking equipment Output Nominal Output Voltage120V (100/120/125V selectable)Output Receptacles(8) NEMA 5-20RMaximum Output Power1920WMaximum Output Capacity2200VAOutput Frequency50/60 HzOutput Voltage Range102–132 VACWaveform OutputPure Sine WaveOutput Power Factor0.98Surge ProtectionIntegratedEfficiency at Full LoadUp to 97% Input Input Voltage Range89–151 VAC (adjustable to 70–153 VAC)Nominal Input Voltage120V default (100/110/120/127V selectable)Input Frequency50/60 Hz auto-sensingInput Frequency Range47–70 HzInput Power Factor0.98Maximum Input Current20AGenerator CompatibleYesInput Frequency Auto-SensingYes Battery & Runtime Battery TypeSealed Lead-AcidBattery Rating12V / 9AhBattery ReplacementUser ReplaceableBattery ManagementABM® technology with automatic battery testingDeep Discharge ProtectionYesTypical Runtime Half Load7 minutes (960W)Typical Runtime Full Load3 minutes (1920W)External Battery Module5PXEBM48RTRuntime ExpansionSupports up to 4 EBMsAutomatic Recognition of EBMsYes Communications & Management User InterfaceLCD Graphical DisplayExpansion SlotOne slot for optional card Network-MS or Network-M2 Software CompatibilityEaton Intelligent Power ManagerRemote MonitoringSupported with optional network cardEvent LoggingSupportedBattery MonitoringAdvanced battery health monitoringAlarm NotificationsAudible and visual alarmsEnvironmental MonitoringSupported with optional network cardUser ConfigurationLCD-based local configuration Physical Height3.4 inches (86 mm)Width17.4 inches (441 mm)Depth20.6 inches (522 mm)Net Weight65 lbs (29 kg)ColorBlack / SilverRack Mounting KitNot IncludedNoise Level<45 dB at 1 meter Environmental Operating Temperature0°C to 40°C (32°F to 104°F)Operating Humidity20–95% non-condensingOperating AltitudeUp to 10,000 ft (3000 m) without deratingBTU Rating305 BTU/hr Online, 2047 BTU/hr On BatteryCertificationsUL 1778, cUL Listed, cTUVus, NOM, UL 497AComplianceCE Marked, FCC Part 15 Class A
