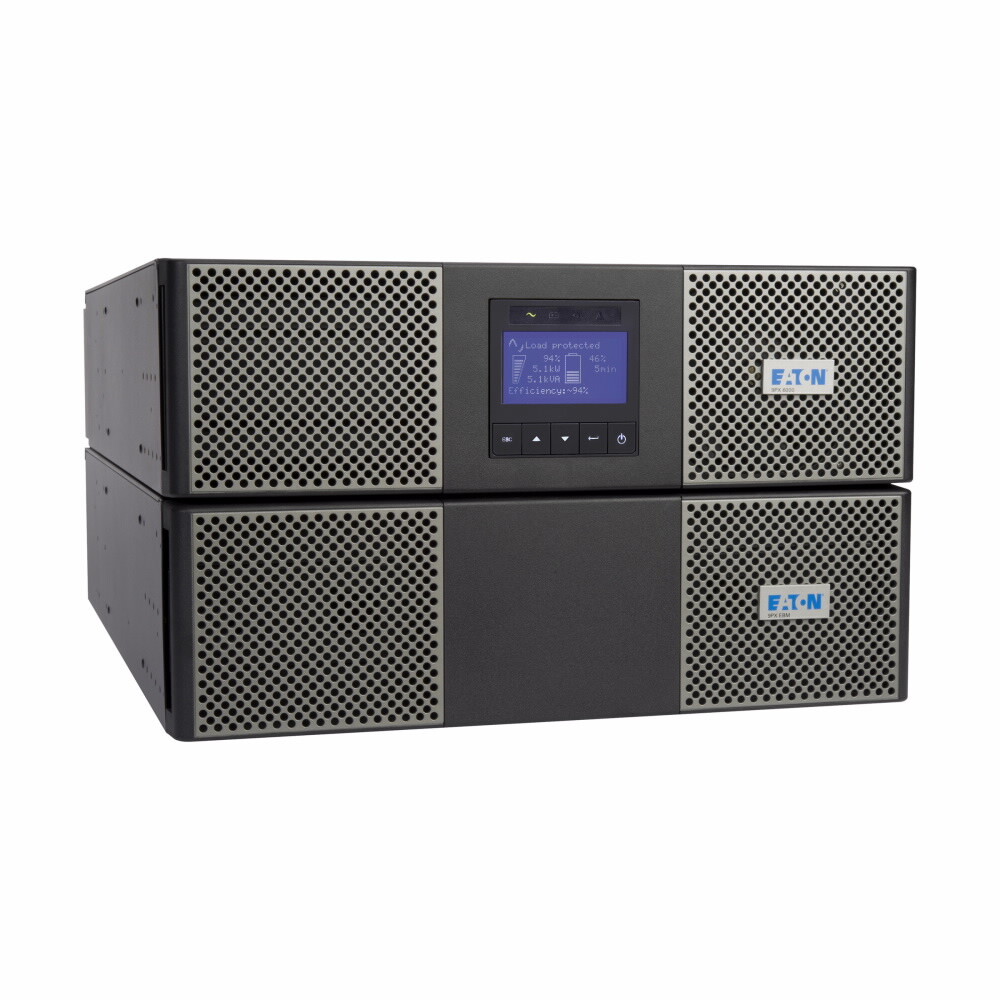

Eaton 9PX 9PX11KHW 11kVA/10kW 208V w/9PXEBM240RT EBM Rack/Tower UPS
GeneralTopologyDouble-conversion onlineConfigurationRack/TowerCatalog Number9PX11KHWColorBlack and silverRating system self test at power upUPS BypassMBP11K208 optional. Rear-mount 3U, 208V maintenance bypass for 8 and 11 kVA 9PX UPS models. Hardwired input. Hardwired and (3) L6-30R outputDimensions (H x W x D, inches)10.2 (6U) x 17.3 x 27.6Dimensions (H x W x D, mm)259 (6U) x 439 x 701Weight (kg)86Weight (lbs)190Warranty2 yearsRail Kit Included4-post rail kit and tower pedastals includedRemote Emergency Power off (REPO)ROO/RPO: Rear deck emergency stop connectors (for remote on/off and power off)Contents
(Ships with the following items)9PX11KPM 11 kVA 3U UPS power module
9PXEBM240RT 3U extended battery module
Gigabit Network card (Network-M2)
4-post rail kit
User manual
Quick start guide
Tower pedestals
Intelligent Power Software Suite CD
RS-232 serial cable
USB cable
Cable gland for hardwire connection
Phillips head screw driverEfficiency94% with resistive loadElectrical InputConnectionHardwired - see manual for terminal block layout
Input CordNone; hardwiredInput Voltage RangeFull load: 176-276V, Derating: 100-276VNominal Voltage208V default HzFrequency Range60 Hz: 50–70 Hz, 50 Hz: 40–60 HzInput Power Factor>99Input Current Distortion<5%Electrical OutputNominal Voltage208V default (200/208/220/230/240/250V)Output voltage regulation±1% steady-stateVoltage THD<2% for linear loadsOutput ReceptaclesHardwired - see manual for terminal block layout
Power Factor0.9+Transfer Time0 msCircuit BreakerCustomer providedNoteConfigurations with more than 5 EBMs require the SC240RT super charger module
Optional Extended Battery Module9PXEBM240RTBattery DescriptionSealed, lead-acid; maintenance freeMaximum number of extended battery modules (EBM)Add up to 5 extended battery modules (EBM) with UPS; add up to 12 EBMs with SC240RT supercharger moduleBattery ManagementABM technology; 3-stage charging extends battery service life by 50% and provides advance warning for battery replacementBattery ReplacementHot-swappable extended battery modules (EBMs); no internal batteries in UPS moduleStart On BatteryCold-start enabled; first cold start is always forofferdenCommunicationsUser InterfaceGraphical display. UPS status in a single view.LEDs4 status-indicating LEDsCommunication PortsRS-232 (RJ45) ports; USB port as standard (HID). 6-foot RS-232 and USB cables includedCommunications Card SlotsGigabit Network Card (Network-M2) includedPower Management SoftwareEaton Intelligent Power Software Suite CD(included)Environmental & StandardsRoHS ComplianceYesSurge ProtectionIEEE ANSI C62.41 Cat B2Heat Dissipation (BTU)Online: 1920
Battery: 2900
(BTU/hr; battery full charged, resistive load)Audible Noise<45 dB at 1 meterOperating Temperature0 to 40°C (32°F to 104°F)Safety markingsCE / cULus / NOMEMC MarkingsIEC 62040-2:2006 Cat C2 / CISPR22 Class A / FCC part 15 Class AStorage Temperature0 to 35°C (32°F to 95°F); without batteries: -15 to 60°C (5°F to 140°F)Relative Humidity0 to 95%Altitude<1,000 meters for nominal power; 10% power derating every 1000 meters (up to 3000 meters)
