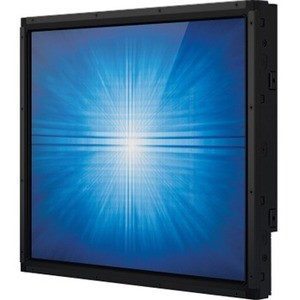

Elo 1790L 17" VGA 1280x1024 5:4 Open-frame LCD Touchscreen Monitor Brand: Elo Touch Solutions UPC: 0815335025792 Mfr Part #: E326347
General Information
The Elo 1790L 17-inch open-frame LCD touch display features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch with proven Elo expertise and reliability built in. The 1790L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the 17-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.
Touch ready.
The 1790L is available with a choice of industry-leading touch technologies, in both single touch and multi touch versions. The seamless zero-bezel 17-inch multi-touch display is available with our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
- Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
- High quality energy-saving LED panel
- 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
- Display Port and VGA video interfaces
Technical InformationScreen Size Class:17"Viewable Screen Size:17"Screen Mode:SXGAResponse Time:5 msAspect Ratio:5:4Mount Type:Front MountMount Type:Rack-mountableBacklight Technology:LED
VideoMaximum Resolution:1280 x 1024Color Supported:16.7 Million ColorsContrast Ratio:800:1Brightness:250 Nit
Touchscreen InformationTouchscreen Type:5-wire Resistive
Power DescriptionOperating Power Consumption:17.80 W
Physical CharacteristicsVESA Mount Compatible:YesProduct (Approximate):7.94 lb
1790L 17" Open Frame Touchscreen (Rev B) HDMI cable VGA Cable RJ45 OSD Remote Touch USB Cable User Manual CD Quick Install Guide "L" (Side Mount) Brackets and w/Screws Japan Class-B info sheet Certifications & Standards:
T?VEnvironmentally Friendly:YesEnvironmental Compliance:Waste Electrical and Electronic Equipment Directive (WEEE)Environmental Compliance:China Restriction of Hazardous Substances (China RoHS)Environmental Compliance:Restriction of Hazardous Substances (RoHS)
