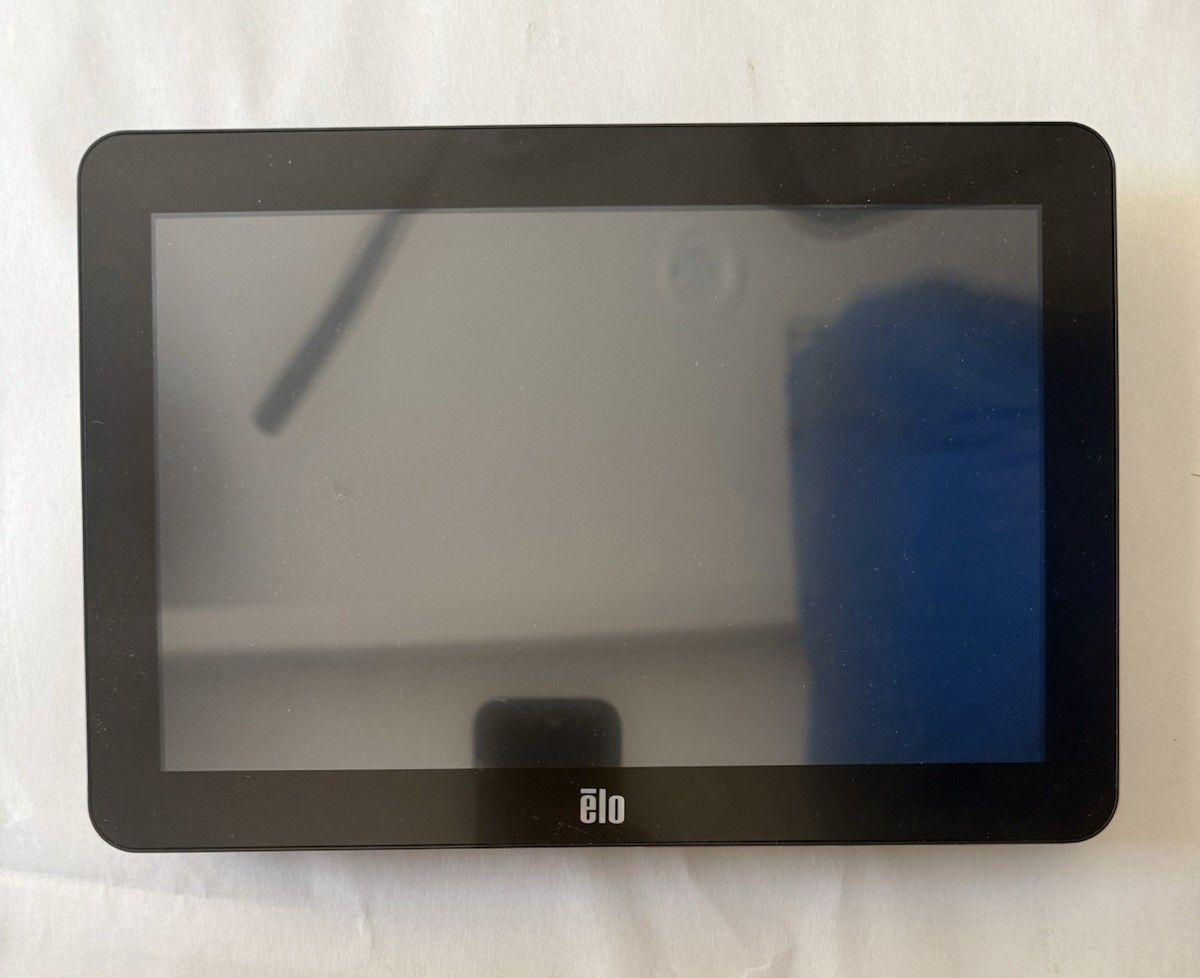

NEW IN THE BOXElo’s 1002L Touchscreen Monitor
The Elo 1002L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. With a compact form factor and clean design for easy integration, the 1002L offers the flexibility to install as a traditional POS terminal or a customer facing point of interaction - making it well-suited for point-of-sale, self-service, signage and hospitality applications. And with a variety of peripherals, the monitor can be transformed to meet the demands of almost any blueprint.
Single Cable Connection
The 1002L provides a USB Type-C interface that provides touch, video and power. By reducing the number of cables required for any set up from 3 to 1, installation and servicing is a breeze. In case your PC isn’t equipped with USB Type-C yet, you can still use traditional HDMI or VGA to connect to your PC.
One for You.
One for Your Customers.
The 02-Series offers dual functionality. Use it as a traditional POS terminal or customer facing display – or BOTH! Start increasing brand loyalty and customer satisfaction by offering your customers a point of interaction to review transactions, participate in loyalty programs or see the latest promotion.
Specifications
Part Number(s)
PCAP (Worldwide) - E155834
Non-Touch (Worldwide) - E324341
Enclosure Color
Black
Touch Technology & Capacity
Non-Touch
PCAP (Projected Capacitive) - 10 Touch
Diagonal Size
10.1'' diagonal, Active matrix TFT LCD (LED)
Monitor Thickness
1.12" / 28.45 mm panel depth
Aspect Ratio
16:10
Active Area
8.54" x 5.34" / 216.96 mm x 135.6 mm
Resolution
1280 x 800
Other Supported Resolutions
640 x 480 @ 60Hz
800 x 600 @ 60Hz
1024 x 768 @ 60Hz
1280 x 800 @ 60Hz
1920 x 1080 @ 60Hz
1920 x 1200 @ 60Hz
Viewing Angle
Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
Number of Colors
262,000
Brightness (typical)
LCD panel: 350 nits
PCAP + DC Power: 315 nits
PCAP + USB-C 5V power: 200 nits
Response Time-total (typical)
29 msec
Contrast Ratio
800:1
Touch Interface
USB
Surface Treatment
Anti-glare
On Screen Display
Accessible through switches along the bottom:
Controls: Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Video Priority, Information, Touch on Sleep Mode, Peripheral Port
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: OSD, Power
I/O Ports
1 x USB Type-C
1 x Audio jack (Line-in)
1 x VGA (Micro-HDMI female connecter)
1 x HDMI
1 x 12V D/C input
3 x Micro-USB ports (Top, Left, Right) to support Elo Edge Connect peripherals
Speakers
2 x 2W internal speakers
Video
Analog VGA
HDMI
USB Type-C (support DP Alt mode)
Suggest using Elo USB Type-C to Type-C (Elo P/N: E710364) cable to prevent any compatibility issues
Input Video Frequency
Horizontal: 31.5 - 80 KHz
Vertical: 60 Hz
Power
Option 1: USB Type-C Input range: 5V±5% 3A/9V±5% 3A/15V±5% 1.8A/20V±5% 1.35A
Option 2: External DC Adapter 12V/36W in box
Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth)
Monitor input voltage range: 12VDC +/- 5%
Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length)
Adapter input voltage range: 100-240 VAC
Input frequency: 50-60 Hz
Power Consumption (Typical)
Monitor + AC/DC adapter
ON: 7.43 W
SLEEP: 1.26 W
OFF: 0.2 W
Monitor Dimensions (without Stand)
10.03" x 6.99" x 1.14" / 254.80 mm x 177.50 mm x 29.00 mm
Weight (Unpackaged)
1.95 lbs / 0.8842 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)
MTBF
50,000 hours demonstrated
Mounting Options
VESA 4-hole 75mm mounting interface on rear of unit
Ingress Protection
IPX1 for front side
Impact Protection
IK05
What's in the Box
Touchmonitor
HDMI cable
USB Cable (USB Type-A to Type-C)
Quick Install Guide
EEI Label
Power brick
NA Power cable
EU Power cable
2 x cable clamps
2 x tie wraps
3 x screws (M3x8mm) for cable clamps
2 x screws (M3x10mm) for cable doors
Part Number(s)
PCAP (Worldwide) - E155834
Non-Touch (Worldwide) - E324341
Enclosure Color
Black
Touch Technology & Capacity
Non-Touch
PCAP (Projected Capacitive) - 10 Touch
Diagonal Size
10.1'' diagonal, Active matrix TFT LCD (LED)
Monitor Thickness
1.12" / 28.45 mm panel depth
Aspect Ratio
16:10
Active Area
8.54" x 5.34" / 216.96 mm x 135.6 mm
Resolution
1280 x 800
Other Supported Resolutions
640 x 480 @ 60Hz
800 x 600 @ 60Hz
1024 x 768 @ 60Hz
1280 x 800 @ 60Hz
1920 x 1080 @ 60Hz
1920 x 1200 @ 60Hz
Viewing Angle
Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
Number of Colors
262,000
Brightness (typical)
LCD panel: 350 nits
PCAP + DC Power: 315 nits
PCAP + USB-C 5V power: 200 nits
Response Time-total (typical)
29 msec
Contrast Ratio
800:1
Touch Interface
USB
Surface Treatment
Anti-glare
On Screen Display
Accessible through switches along the bottom:
Controls: Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Video Priority, Information, Touch on Sleep Mode, Peripheral Port
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: OSD, Power
I/O Ports
1 x USB Type-C
1 x Audio jack (Line-in)
1 x VGA (Micro-HDMI female connecter)
1 x HDMI
1 x 12V D/C input
3 x Micro-USB ports (Top, Left, Right) to support Elo Edge Connect peripherals
Speakers
2 x 2W internal speakers
Video
Analog VGA
HDMI
USB Type-C (support DP Alt mode)
Suggest using Elo USB Type-C to Type-C (Elo P/N: E710364) cable to prevent any compatibility issues
Input Video Frequency
Horizontal: 31.5 - 80 KHz
Vertical: 60 Hz
Power
Option 1: USB Type-C Input range: 5V±5% 3A/9V±5% 3A/15V±5% 1.8A/20V±5% 1.35A
Option 2: External DC Adapter 12V/36W in box
Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth)
Monitor input voltage range: 12VDC +/- 5%
Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length)
Adapter input voltage range: 100-240 VAC
Input frequency: 50-60 Hz
Power Consumption (Typical)
Monitor + AC/DC adapter
ON: 7.43 W
SLEEP: 1.26 W
OFF: 0.2 W
Monitor Dimensions (without Stand)
10.03" x 6.99" x 1.14" / 254.80 mm x 177.50 mm x 29.00 mm
Shipping Box Dimensions
12.4" x 9.57" x 5.67" / 315 mm x 243 mm x 144 mm
Weight (Unpackaged)
1.95 lbs / 0.8842 kg
Weight (Packaged)
4.02 lbs / 1.8266 kg
Operating Temperature
0°C to 40°C / 32°F to 104°F
Storage Temperature
-20°C to 60°C / -4°F to 140°F
Humidity
Operating: 20% to 80%; Storage: 10% to 95% (38.7℃ max wet bulb temperature)
MTBF
50,000 hours demonstrated
Mounting Options
VESA 4-hole 75mm mounting interface on rear of unit
Warranty
3-year
Extended Service Options
4 year warranty coverage - Elo P/N: E898247
5 year warranty coverage - Elo P/N: E898449
3 year warranty coverage + AUR - Elo P/N: E898648
4 year warranty coverage + AUR - Elo P/N: E894921
5 year warranty coverage + AUR - Elo P/N: E895125
Regulatory approvals and declarations
Canada cUL, IC
Europe CE
United Kingdom UKCA
Japan VCCI
United States UL, FCC
China CCC
Korea, KCC, e-standby
Australia RCM
Mexico NOM
Taiwan BSMI
International CB
RoHS, China RoHS, WEEE, REACH
India BIS
Russia EAC
Ingress Protection
IPX1 for front side
Impact Protection
IK05
What's in the Box
Touchmonitor
HDMI cable
USB Cable (USB Type-A to Type-C)
Quick Install Guide
EEI Label
Power brick
NA Power cable
EU Power cable
2 x cable clamps
2 x tie wraps
3 x screws (M3x8mm) for cable clamps
2 x screws (M3x10mm) for cable doors
Optional Peripherals
Magnetic Stripe Reader (MSR) – Elo P/N: E001002
Fingerprint Scanner – Elo P/N: E134286
2D Barcode Scanner (Black - SE2707) – Elo P/N: E393160
2D Barcode Scanner (Black - SE4720) – Elo P/N: E384627
2D Barcode Scanner (Black - SE4107) – Elo P/N: E245047
PCAP Stylus Pen - Elo P/N: E066148
EMV Cradle for MagTek eDynamo - Elo P/N: E375343
EMV Cradle for Ingenico RP457c (with Audio Jack, BT and USB) - Elo P/N: E586981
EMV Cradle for Ingenico RP457c (with BT and USB) - Elo P/N: E710930
Status Light (Micro-USB Connectivity) - Elo P/N: E644767
Webcam - Elo P/N: E201494
RFID - Elo P/N: E673037
Speaker Bar (Black) - Elo P/N: E894719
Speaker Bar (White) - Elo P/N: E133780
Stands, Mounts & Kits
Wall Mount Kit (75mm or 100mm VESA) – Elo P/N: E143088
Short Tabletop Stand for 10'' I-Series - Elo P/N: E160104
Shelf Mount Bracket (75mm or 100mm VESA) - Elo P/N: E043382
Floor Stand (75mm or 100mm VESA) - Elo P/N: E048069
Mounting Bracket for 0700L as Rear-Facing Display - Elo p/n: E332358
Pole Mount – 6 inch (75mm or 100mm VESA) - Elo P/N: E047458
Pole Mount – 12 inch (75mm or 100mm VESA) - Elo P/N: E047663
Pole Mount – 18 inch (75mm or 100mm VESA) - Elo P/N: E047864
Pole Mount Bracket (75mm or 100mm VESA) - Elo P/N: E045151
Power USB to USB-C/DC-IN (2.1 mm) cable – 1.8 m - Elo P/N: E214097
Power USB to USB-C/DC-IN (2.1 mm) cable - 3 m - Elo P/N: E214282
Elo Stand 1302L - Black (75 mm VESA) - Elo P/N: E307788
Wallaby™ POS Stand (Black) - Elo P/N: E949536
USB-C to USB-C Cable Kit – Elo P/N: E710364
VGA-DB15 to Micro Cable Kit – Elo P/N: E710549
DVI-D to HDMI Cable Kit – Elo P/N: E538507
1.8 m USB-C Cable Kit - includes VGA, USB, HDMI and audio cables - Elo P/N: E408388
Power Brick – 36W - Elo P/N: E593458
Elo Backpack® 4 (Value Model) - Elo P/N: E393754
Elo Backpack® 4 (Standard Model) - Elo P/N: E393359
North America Power Cable C5 - Elo P/N: E793990
Australia Power Cable C5 - Elo P/N: E794186
Europe Power Cable C5 - Elo P/N: E794376
Korea Power Cable C5 - Elo P/N: E794574
China Power Cable C5 - Elo P/N: E794756
Taiwan Power Cable C5 - Elo P/N: E794957
Japan Power Cable C5 - Elo P/N: E795147
Power USB to USB-B/DC-IN (2.5 mm) cable – 1.8 m - Elo P/N: E752302
Power USB to USB-B/DC-IN (2.5 mm) cable – 3 m - Elo P/N: E76302
