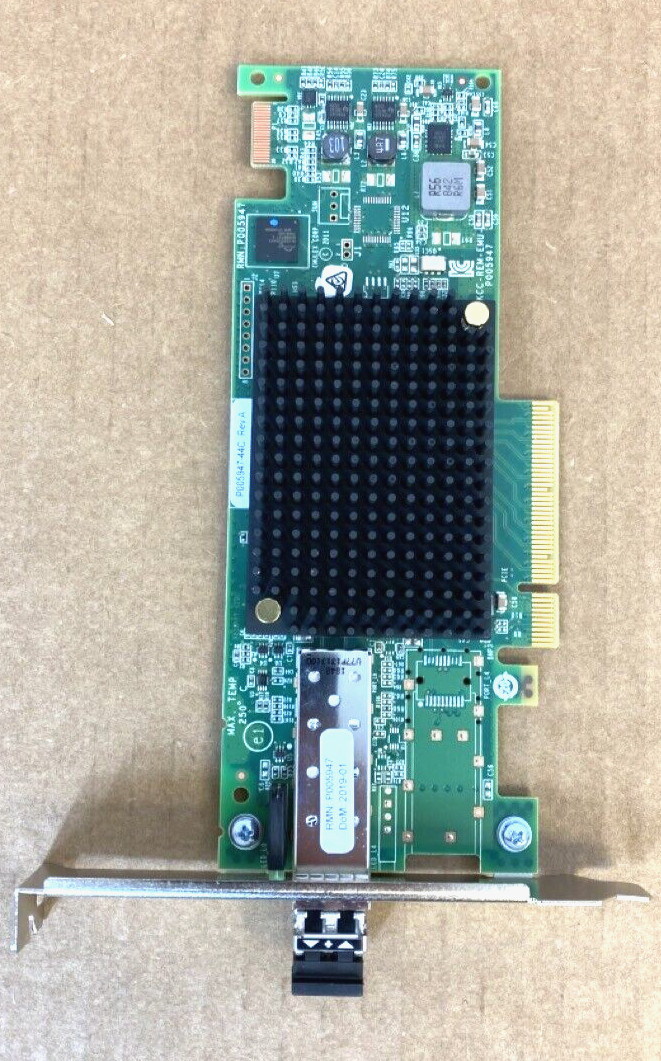

Emulex LightPulse 16Gb Single Port Fibre Channel PCI-Ex8 Card (LPE16000B-M6)
New in open box (does not come in original box/packaging).Key Features
- M6 Gen 5 (16Gb)
- single-port HBA
- Network adapter
- PCIe 3.0 x8 low profile
- 16Gb Fibre Channel
Overview
The LPe16000B Gen 5 (16Gb) PCIe 3.0 single-port FC HBA delivers best Gen 5 reliability and performance (1.2 million IOPS) on a single port and lightning-fast latency to accelerate application performance. Ideal for use with high-performance SSDs. Features ExpressLane QoS, ClearLink diagnostics and T10 PI data integrity with offload.SpecsGeneralDevice TypeNetwork adapterForm FactorPlug-in card - low profileInterface (Bus) TypePCI Express 3.0 x8PCI Specification RevisionPCIe 3.0NetworkingPorts16Gb Fibre ChannelConnectivity TechnologyWiredData Link Protocol16Gb Fibre Channel (Short Wave)Fibre ChannelFC-AL, FC-AL-2, FC-DA, FC-FLA, FC-FS, FC-GS-2, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PLDA, FC-SB-2, FC-Tape, FC-SP, FCP-4, FCP, FCP-2, FC-PI-2, FC-FS-2, FC-GS-5, FC-PI-4, FC-GS-6, FC-HBA, FC-PI-5, FC-LS-2, FC-SP-2, FC-MJS, FC-SB-4Data Transfer Rate14.025 GbpsFeaturesAuto-negotiationExpansion / ConnectivityExpansion Slots1 (total) / 0 (free) x SFP+Interfaces1 x 16Gb Fibre Channel (Short Wave) - LC multi-mode - x 2Compatible Slots1 x PCI Express 3.0 x8MiscellaneousIncluded AccessoriesLow-profile bracket, full-height bracketCompliant StandardsC-Tick, CISPR 22 Class A, EN55024, CB, ICES-003 Class A, RoHS, UL 60950-1, IEC 60950-1, EN 60950-1, MIC Class A, TUV Bauart, FCC Part 15 B Class A, BSMI Class A, KCC Class A, AS/NZS, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, EN 55022 Class ASoftware / System RequirementsOS RequiredSunSoft Solaris, Linux, Microsoft Windows ServerDimensions & WeightDepth6.6 inHeight2.7 inEnvironmental ParametersMin Operating Temperature32 °FMax Operating Temperature131 °FHumidity Range Operating5 - 95% (non-condensing)
