ExtronAC+USB 200 Series Power Modulesfor Cable Cubby®Series and select TouchLink®enclosures are available with discrete AC power outlets for the US, Europe, and other major world markets. They feature one or two unswitched AC power outlets, and two USB Type-A power outlets. TheAC+USB244USprovides +5VDC up to 4A / 20watts of USB power; while the non-US modules provide +5VDC up to 3.0A / 15watts of USB power for charging mobile devices such as laptops, smartphones, and tablets. AC+USB244US cord and conduit US power modules are UL/c-UL listed.

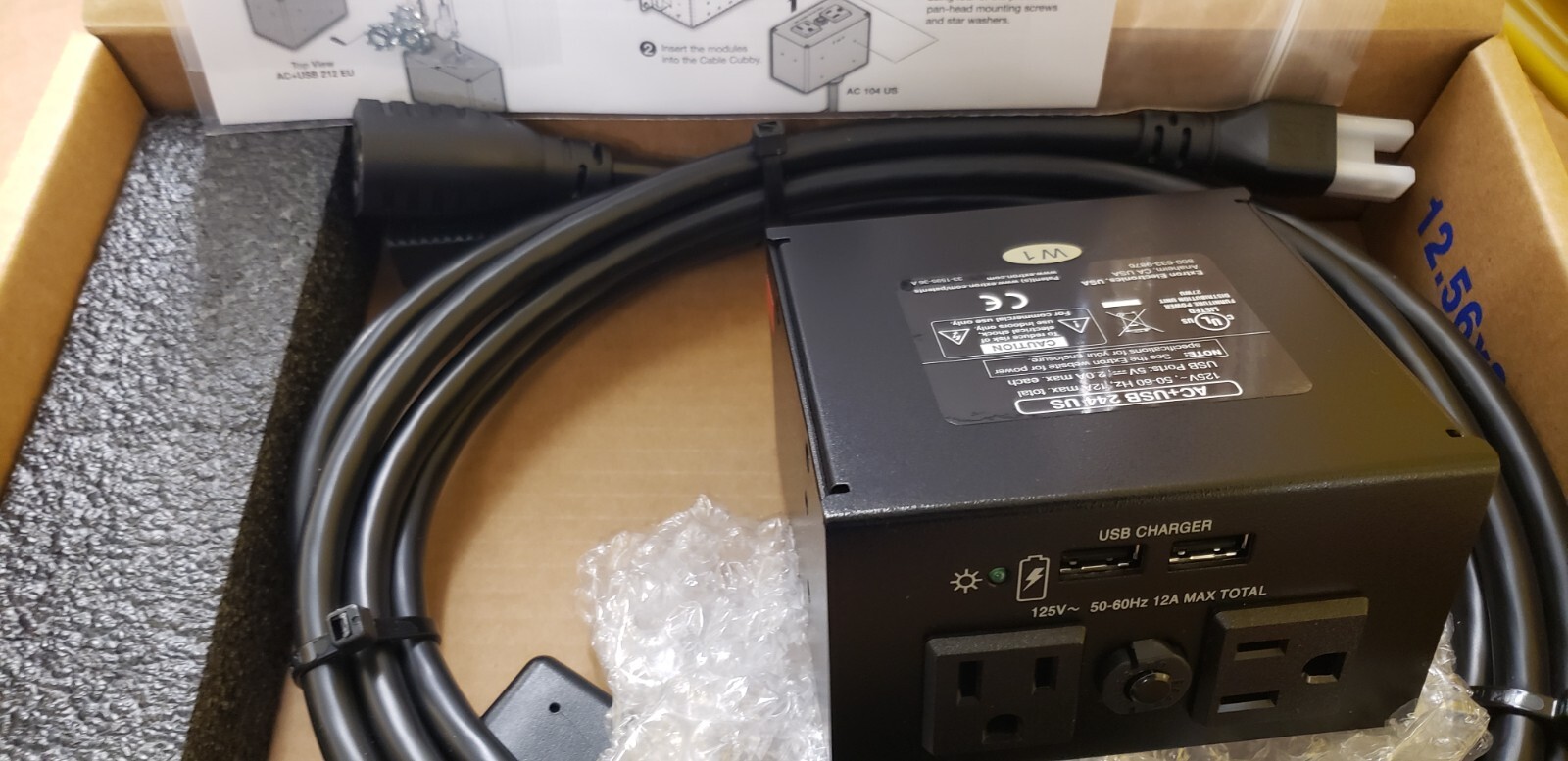

AC+USB 244 US power modules featurea 12A circuit breaker for current overload protection and are UL/c-ul listed, meeting applicable safety standards when installed properly. Both US models have two unswitched AC outlets and two USB Type-A outlets powered by an integrated power supply. Each module is equipped with a 9.5' (2.90-meter) power cord and two 2' USAC outlet cables on the bottom of the module to power optional devices or a 6' (1.83-meter) length of 3/8" flexible conduit with a 6" (15-cm) pigtail of three-wire cable for applications requiring a hard-wired conduit to AC power. These power modules have a total of up to 4A / 20watts of USB power.
AC+USB 200 non-US power modules feature one unswitched AC outlet and are equipped with an IEC power connector. They provide +5 VDC up to 3.0A / 15watts of power to two USB power outlets and can deliver full power to either USB outlet when only one device is connected. The Multi-Region model accepts a variety of AC plug types.
AC+USB 200 Series USB power outlets receive power from highly reliable, Extron-designed and engineered power supplies. The US model features an integrated Extron power supply for convenient installation. All non-US models include an Extron external standalone power supply that meets the LevelV standard for energy efficiency and a ZipClip100 Mounting Kit. ZipClip 100 Mounting Kits securely mount Extron power supplies onto most surfaces, including under tables and inside lecterns.
GeneralPower outputAC (US model)125 VAC. 50-60 Hz, 12 A max totalAC (non-US models)240 VAC, 50-60 Hz, 10 A max totalUSB (US model)5 VDC, 4.0 A, 20 watts total; two Type A connectorsUSB (non-US models)5 VDC, up to 2.4 A on a single port and up to 3.0 A total shared; two Type A connectorsUSB power supply (non-US models)External
Input: 100-240 VAC, 50-60Hz
Output: 12 VDC, 1.5 AUSB power consumptionUS model24.4 wattsNon-US modelsDevice 17.1 wattsDevice and power supply 19.5 wattsAmbient temperature/humidityStorage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensingCoolingConvection, no ventsUSB thermal dissipationUS modelDevice and internal power supply18.5 BTU/hrNon-US modelsDevice 8.1 BTU/hrDevice and power supply 16.3 BTU/hrMountingMountable into select Cable Cubby enclosuresEnclosure dimensionsUS model2.40" H x 4.20" W x 4.00" D
(61 mm H x 107 mm W x102 mmD)
For US AC cord models: Allow an additional 2.50" (64 mm) depth to
account for the attached AC power cord bend radius.
For US AC conduit model: Allow an additional 5.00" (127 mm) depth to
account for the attached flexible conduit bend radius.MaterialMetalProduct weight US AC cord model2.5 lbs (1.1 kg)US AC conduit model2.4 lbs (1.1 kg)Non-US models2.2 lbs (1.0 kg)Regulatory complianceCE, c-UL, UL, RoHs, and WEEE
