C45
Condition: Tested, Warranty - 90 Days

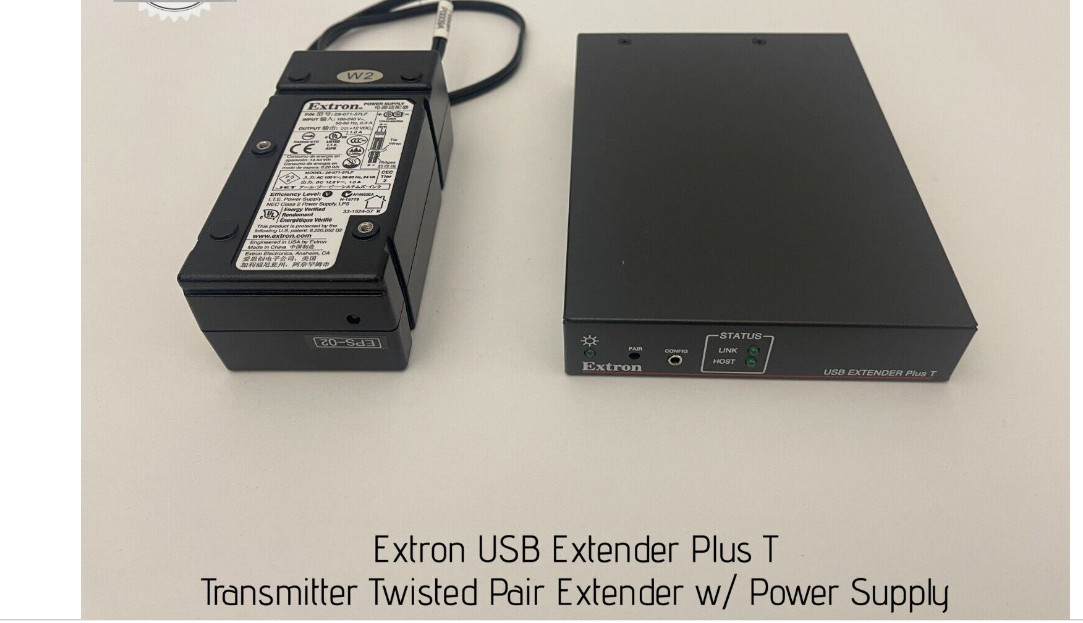

Product Description:Includes 1 x Plus T Transmitter and PSU

The USB Extender Plus Series extends and switches USB signals from peripheral devices to a host computer up to 1,980feet (600m) through a Gigabit Ethernet network or up to 330feet (100m) point-to-point over one CATx cable. It supports USB2.0 through 1.0 devices with data rates up to 480Mbps and it is compatible with USB3.0 devices that can operate at USB2.0 data rates. The transmitter includes USB peripheral emulation to enable trouble-free booting of a host computer that is not connected to a keyboard or mouse. The receiver features a built‑in, active four‑port hub. The controller provides simple setup and control for creating a distributed USB matrix switching system over an Ethernet network. The USB Extender Plus Series supports USB peripherals such as keyboards, mice, mass storage devices, and webcams in pro AV environments.

The transmitter features peripheral emulation to support uninterrupted communication between the host and the USB device, ensuring USB port recognition during system boot-up, even without a connected keyboard or mouse. Port LED indicators provide visual confirmation of system activity.

The USBExtenderPlusSeries is capable of transmitting USB signals long distances over a CATx twisted pair infrastructure. For distances up to 330feet (100meters), installation of the USBExtenderPlus enables direct connection of USB peripherals to the remote host computer without needing additional IP network drops, equipment, software, or drivers. This simplifies integration in Keyboard-Video-Mouse - KVMapplications by avoiding IT-specific design criteria that may be in conflict with the need forKVM extension in professional AV installations.

For installations where longer distances are required or when pairing one transmitter to multiple receivers, the USBExtenderPlus Series transmitter and receiver can be connected to a Gigabit Ethernet switch located up to 330feet (100meters) away to extend the total distance to 660feet (200meters).In addition, the signal can be extended through a network of as many as five Gigabit Ethernet switches, with up to 330feet (100meters) between each pair of switches, for a total transmission distance of 1,980feet (600meters).

The extender supports USB peripherals such as interactive whiteboards, keyboards, mice, mass storage devices, webcams, headsets and speakers, along with other USB devices. For secure environments, the USBExtenderPlusHID model is designed to ensure that only authorised device types are recognised. It allows connection of a keyboard, mouse, smart card reader,or similar USB device, and prevents connection of unauthorised hardware, such as a storage device.

Transmitters and receivers are available in three form factors that can be mixed and matched for optimum integration flexibility. The compact, 1‑inch quarter rack width metal enclosure is designed for desktop, under desk, lectern, or rack mounting. The USBExtenderPlusAAP model fits into a double-space Architectural Adapter Plate - AAP opening, providing convenient and elegant architectural USB connectivity. The USBExtenderPlusD is a decorator-style wallplate that fits into a single-gang wall box.

The USB Plus Matrix Controller provides a simple management interface to create USB switching systems using up to 64USB Extender Plus Series transmitters and receivers. Any AV control processor can easily control USB switching using SIS commands sent via Ethernet or RS‑232. The USB Plus Matrix Controller can be combined with USB Extender Plus Series transmitters and receivers to create a simple distributed USB matrix switching system within a single room or spanning an entire building. The system can be configured quickly and easily using Extron's Product Configuration Software - PCS.

The USBExtenderPlusSeries is ideal for a wide variety of environments requiring extension and switching of USB3.0, 2.0, 1.1, and 1.0 signals with data rates up to 480Mbps, including courtrooms, conference and meeting spaces, classrooms, and lecture halls.

• Extends USB peripherals up to 1,980feet (600meters) through a Gigabit Ethernet network
• Extends USB peripherals up to 330feet (100meters) point-to-point over one CATx cable
• Supports USB2.0 through 1.0 devices with data rates of up to 480Mbps. Compatible with USB3.0 devices that can operate at USB2.0 data rates— Enables bulk, control, interrupt, and isochronous transfers as defined by the USB specification.
• Receiver features an integrated four port hub with 5Volts, 500mA available on each port— Allows simultaneous connection to multiple peripheral devices such as the Extron Annotator300, mass storage devices, keyboards, mice, or other HID – Human Interface Devices.
• One transmitter can connect to multiple receivers— Using a Gigabit Ethernet switch, one transmitter can support up to four receivers via an IP network.
• Peripheral emulation— Offers increased system reliability by emulating a continuous connection between the host and an HID-compliant keyboard and mouse.
• Real-time status LED indicators for troubleshooting and monitoring— Provides visual confirmation of port activity between an active host and each connected peripheral device.
• Choice of rack-mountable and architectural form factors— Available in a compact, 1‑inch rack-mountable metal enclosure, an AAP - Architectural Adapter Plate, and a single-gang decorator-style wallplate for easy integration into a variety of environments.
• USB switching controller lets you easily create small or large USB switching systems— Any switcher configuration using up to 64USB Extender Plus transmitters and receivers can be configured using one controller. Enables the use of serial or IP commands for integration into a control system.
• Device class filtering on select models restricts the range of device types to HID and smart card readers - USBExtender PlusHID— Device class filtering prevents unauthorised downloading or uploading of content via the USB port in secure environments. The USBExtender PlusHID is configured at the factory, such that device class filtering cannot be removed or altered in the field.
