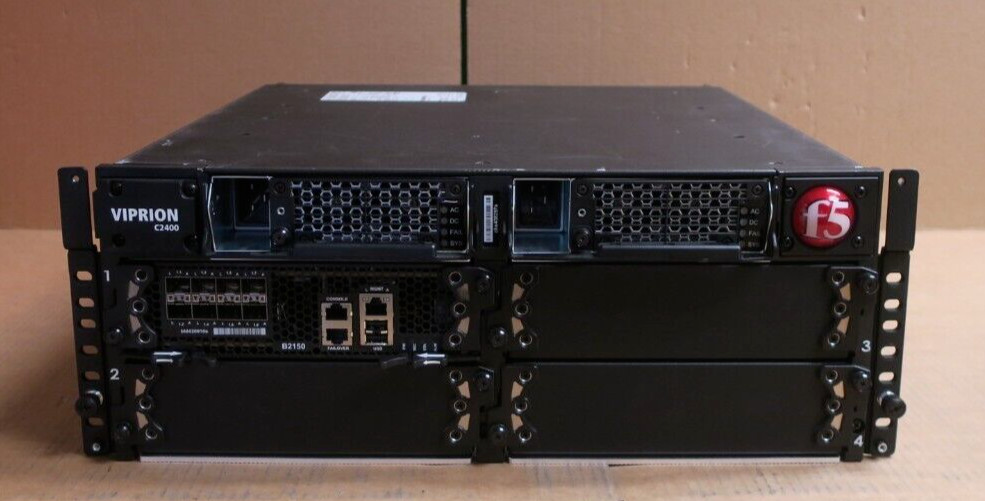

F5 Viprion C2400 4-Slot Local Traffic Manager LTM Blade Chassis +1x B2150 Blade For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
F5 Viprion C2400 4-Slot Local Traffic Manager LTM Blade Chassis +1x B2150 BladeChassis Model: F5 ViprionC2400Chassis P/N:F5-VPR-LTM-C2400-ACBlade Model: B2150Blade P/N:F5-VPR-LTM-B2150In Good ConditionTestedPowered OnSold As Hardware Only - No Operating System/Firmware, No Hard Drives Included Includes:
1 xF5 Viprion C2400 4-Slot Blade Chassis
2 x 1400W Power Supply
1 x Fan Tray
1 x F5 Viprion B2150 Blade (No HDD/SSD)
Chassis Specification:
Intelligent Traffic Processing:
1M L7 requests per second
400K L4 connections per second
7M L4 HTTP requests per second
24M max L4 concurrent connections
40 Gbps L4, 18 Gbps L7
400 Mbps included compression
10 Gbps maximum hardware compression
Included SSL TPS: 4,000/Blade
Maximum SSL TPS: 10,000 TPS (2K keys)
Bulk crypto: 9 Gbps
Note: Compression and SSL resources are allocated evenly across the number of vCMP guests set up.
Hardware DDoS Protection:Hardware SYN cookies: 40M SYN cookies per second
Software Architecture:64-bit TMOS
Virtualization (Max Number of vCMP Guests):32 (4 B2150 blades, 8 per blade)
Hard Drive Capacity:400 GB solid state drive (Not Included)
Network Interfaces:One 10/100/1,000 Mbps Ethernet management portEight 1,000 Mbps/10 Gbps SFP+ ports(2 ea. 10GBASE-SR - 850nm transceivers included)(Optional 1G SFP fiber SX or LX) or copper RJ45 transceivers, 10G SFP+ SR or LR, 10G copper direct attach)Note: Only optics provided by F5 are supported.
Power Consumption and Heat Output:Note: Please refer to the VIPRION 2200 Platform Guide or the VIPRION 2400 Platform Guide for the latest relevant blade power ratings.
