FTTH Optical Fiber Microscope 1.25mm 2.5mm Cleaning Sticks Cassette Cleaner Fiber Cleaning Tools KitDescription:
Cassette Cleaner Box
Fiber optic connector cleaners utilize a specially formulated dry cloth for thorough and efficient cleaning of fiber optic end-faces. They eliminate the need for hazardous cleaning fluids that can leave a residue. the cloth is extremely effective in removing grease, dust and other contaminants. These products offer substantial labor savings over conventional, high volume applications and have been adopted by manufacturers and carriers worldwide.Model NameOptical Fiber Connector CleanerFerrule2.5mm & 1.25mmCleans per reelOver 500 timesDimension W×H×D (mm)130 × 75 × 40Weight200gConnectors cleanedSC, SC2, FC,ST, DIN, D4 MU, LC, MT, MPO, MT-RJ without pins,Feature
1.Suitable for cleaning tasks in factories and field applications
2.Environmentally friendly
3.Achieve high quality cleaning without alcohol or other solvents
4.The cleaning tape is replaceable thus reducing the long term costs
5.This is an ideal tool for use when the connector face is available to you for cleaning
6.Specifically designed to clean ST, SC, FC, SMA D-4, DIN
7.Diamond connector faces
Application*Fiber network panels and assemblies
*Outdoor FTTX applications
*Cable assembly production facility
*Testing laboratories
*Clean ST, SC, FC, SMA D-4, DIN, and 7.Diamond connector faces connectors1.25&2.5mm Cleaning SticksA stick , used for cleaning end-faces inside the plug-in fiber-optic connectors and various adaptors and connectors . Suitable for cleaning inside adaptors due to dust control. Specification of Cleaning Stick Type ø2.5mm Type ø1.25mm
Connectors cleaned: SC, SC2, FC, ST, DIN, D4 MU, LC, MT
* Environment Operation Temperature -20°C to 60°C
* Humidity 20% to 80%H.
* Preservation Temperature -20°C to 60°C
* size: ø2.5mm 146mm (Length) / ø1.25mm 100mm (Length)TypeClean Stick ø2.5mmPackage100pcs per boxSuitable connectorSC/FC/STStorage Temperature--20°C to 60°COperation Temperature-20°C to 60°CTypeClean Stick ø1.25mmPackage100pcs per boxSuitable connectorLC/MU/MTStorage Temperature--20°C to 60°COperation Temperature-20°C to 60°C
3. Microscope
The CL-Series Hand Held Fiber Microscope utilize a white LED for coaxial illumination. Light is introduced into the optical path (axis) so that it comes out the tip of the objective and strikes the sample perpendicular to the fiber end-face. It produces excellent detail of scratches and contamination. For critical examination of polish quality. We strongly recommend the CL-Series Hand Held Fiber Microscope.
Optical Magnification: 100X,160X, 200X, 320X, 400X
Power Requirements: 3 “AAA” alkaline batteries
LED:Rated life: 10000hrs
Weight: 0.6kg
Size: 225mm/8.76 “Length x 32mm/1.25” Diameter
Controls: Momentary on/off switch; Fine-Focus control
Laser Safety Filter: Built-in
Adapter interface: Use interchangeable, presented universal or dedicated adapters.
Cat.No. Description
CL-100 100X Fiber Microscope with universal “slip-grip” adapterCL-160 160X Fiber Microscope with universal “slip-grip” adapterCL-200 200X Fiber Microscope with universal “slip-grip” adapterCL-320 320X Fiber Microscope with universal “slip-grip” adapterCL-400 400X Fiber Microscope with universal “slip-grip” adapter
Operation Step:
Step 1. Input the Fiber which will be checked into the Fiber Insert Entrance, insert another fiber connector into the light source entrance.
Step 2. See from the eyepiece and press on the on/off LED switch(Illumination)
Step 3. Adjust the focus control. just to find the clearest viewing.
Guarantee Terms:
All products from company are warranted to be free of all defects in material and workmanship for a period of 12 months from the date of delivery. The warranty does not apply to any instrument which has become worn, defective, damage or broken due to abuse, miuse, tampering or unauthorized repair. Under this warranty, we will repair or replace, without charge to the purchaser, any part of which upon our examination appears to be defective in material or workmanship.
How to choose between the CL-Series and the OL-Series ?
Both series of our Hand Held Fiber Microscope provide excellent views of the ferrule end face. We recommend 400x magnification foe single-mode and 200x magnification for muti-mode:
(1)if you frequantly termiate fiber and have received professional training, you are probably best served our CL-Series Microscope.
(2)If you only occasionally termiate fiber, and are unsure, you might consider the OL-Series.

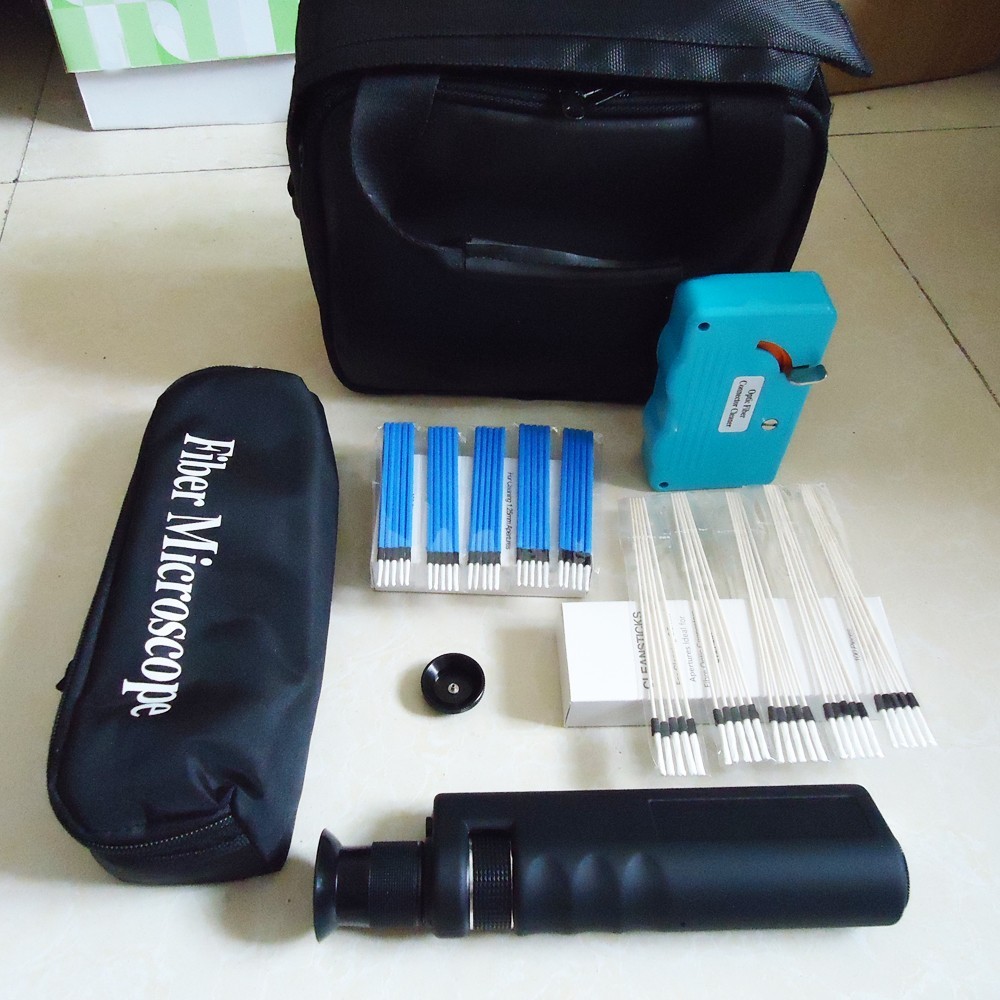

Package:
1. 100pcs 1.25mm fiber cleaning sticks
2. 100pcs 2.5mm fiber cleaning sticks
3.Optical Fiber Connector Cleaner
4. 400x Fiber Microscope
5. Bag
