Fiber Optic Adapter Flange Coupler – Multi-Thread to FC/APC FC/PC SMA905 ST/PC
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

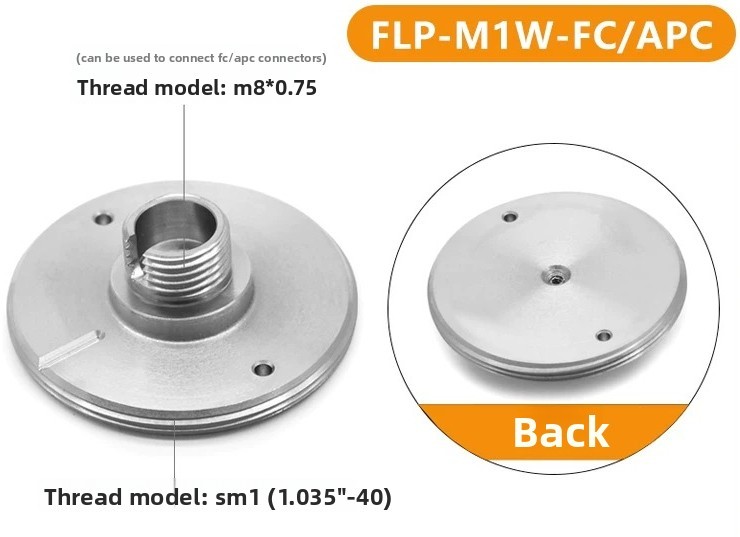

Fiber Optic Adapter Flange Coupler – Multi-Thread to FC/APC FC/PC SMA905 ST/PC
Price: CN $67.25
Table 1: FC/APC & FC/PC Series Parameters
ModelModel Spec (A) Spec (B) Height (H) Thickness (T) Width (W) FLP-M1W-FC/APC SM1(1.035'-40) M8*0.75 / 2.2mm 2.2mm FLP-1-FC/APC 25.4mm M8*0.75 / 2.2mm 2.2mm FLP-M1W-FC/APC2 SM1(1.035'-40) M8*0.75 / 2.2mm 2.0mm FLP-M05W-FC/APC SM05(0.535'-40) M8*0.75 9.1mm 1.5mm 2.2mm FLP-05-FC/APC 12.7mm M8*0.75 9.1mm 1.5mm 2.2mm FLP-M05W-FC/APC2 SM05(0.535'-40) M8*0.75 9.1mm 1.5mm 2.0mm FLP-05-FC/APC2 12.7mm M8*0.75 9.1mm 1.5mm 2.0mm FLP-M1W-FC/PC SM1(1.035'-40) M8*0.75 / 8.3mm 2.2mm FLP-M05W-FC/PC SM05(0.535'-40) M8*0.75 / 8.3mm 2.2mm FLP-1-FC/PC 25.4mm M8*0.75 / 8.3mm 2.2mm FLP-05-FC/PC 12.7mm M8*0.75 / 8.3mm 2.2mm FLP-M1W-FC/PC2 SM1(1.035'-40) M8*0.75 / 8.3mm 2.0mm FLP-M05W-FC/PC2 SM05(0.535'-40) M8*0.75 / 8.3mm 2.0mm
Table 2: SMA Series Parameters
Model Spec (A) Spec (B) Thickness (T) FLP-M1W-SMA SM1(1.035'-40) 1/4-36 8.2mm FLP-M05W-SMA SM05(0.535'-40) 1/4-36 8.2mm FLP-1-SMA 25.4mm 1/4-36 8.2mm FLP-05-SMA 12.7mm 1/4-36 8.2mm
Table 3: N-Type Interface (FC/APC & ST/PC) Series Parameters
Model Diameter (A) Spec (A) Spec (B)/Internal Thread Diameter (B) L1 L2 FLP-M1N-FC/APC 30.5mm / SM1(1.035'-40) / 20.3mm 7.6mm FLP-M05N-FC/APC 15.9mm / SM05(0.535'-40) / / / FLP-M05N-ST/PC / SM05(0.535'-40) / 15.9mm / / FLP-M1N-ST/PC / SM1(1.035'-40) / 30.5mm / /
