Key Features & Specifications:

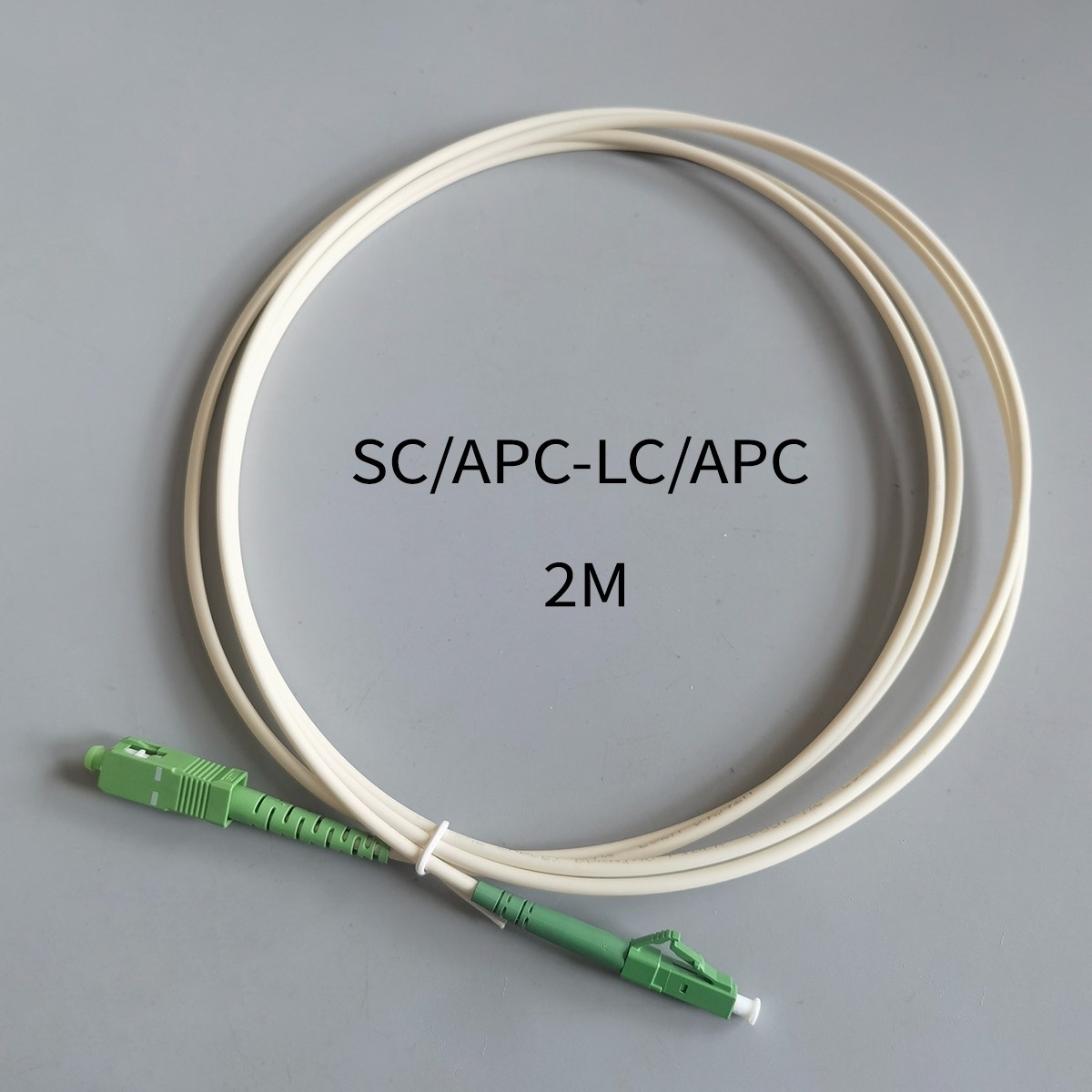

• Connector Configuration:LC/APC to SC/APC (Simplex). This hybrid design connects devices with different APC port types, commonly used to link optical line terminal (OLT) equipment to distribution terminals or drop points in FTTH architectures.

• Polish Type:Angled Physical Contact (APC). The 8-degree angled end-face significantly reduces back reflection (return loss >65dB), making it perfect for high-speed digital systems like GPON, XGS-PON, CATV, and other RFoG systems.

• Fiber Type & Standard:G657A2 Bend-Insensitive Single Mode Fiber. This advanced fiber offers exceptional performance with:

  • Ultra-low macro/micro-bend loss, allowing tight turns (bend radius as low as 7.5mm for installation, 5mm for long-term) without significant signal degradation.

  • Full compatibility with standard G652D fiber.

  • Optimized for 1310nm, 1490nm, and 1550nm wavelengths.

• Cable Construction:

  • Jacket Material:LSZH (Low Smoke Zero Halogen). Enhances safety by minimizing toxic and corrosive smoke emission in case of fire, suitable for indoor and confined spaces.

  • Cable Diameter:Standard 2.0mm or 3.0mm (specify if needed), offering a robust yet flexible design.

  • Strength Members:Aramid yarn (Kevlar) provides excellent tensile strength and crush resistance.

• Available Lengths:Choose from standard factory lengths:2 Meters, 3 Meters, 5 Meters, 10 Meters, 15 Meters.Custom lengths are available for wholesale/volume orders.

• Performance Specifications (Typical):

  • Insertion Loss:≤ 0.3 dB

  • Return Loss:≥ 65 dB

  • Operating Temperature:-20°C to +70°C

• Applications:

  • Fiber-to-the-Home (FTTH) Drop Wiring & Installations

  • Optical Distribution Frames (ODF) & Network Access Points

  • Interconnection between OLT equipment and optical splitters

  • CATV & RF Video Signal Distribution

  • Test & Measurement Setups

  • General Patching in Data Centers and Telecom Central Offices

Factory Wholesale Advantages:

• Direct Source Pricing:Eliminate intermediary markups. Competitive pricing for bulk orders, project offers, and resellers.

• Consistent Quality:Rigorous factory testing ensures every cable meets or exceeds industry standards (IEC, TIA/EIA).

• Reliable Supply & Customization:Stable manufacturing capacity supports large-volume demands. Options for custom labeling, packaging, and specific length reels available.
