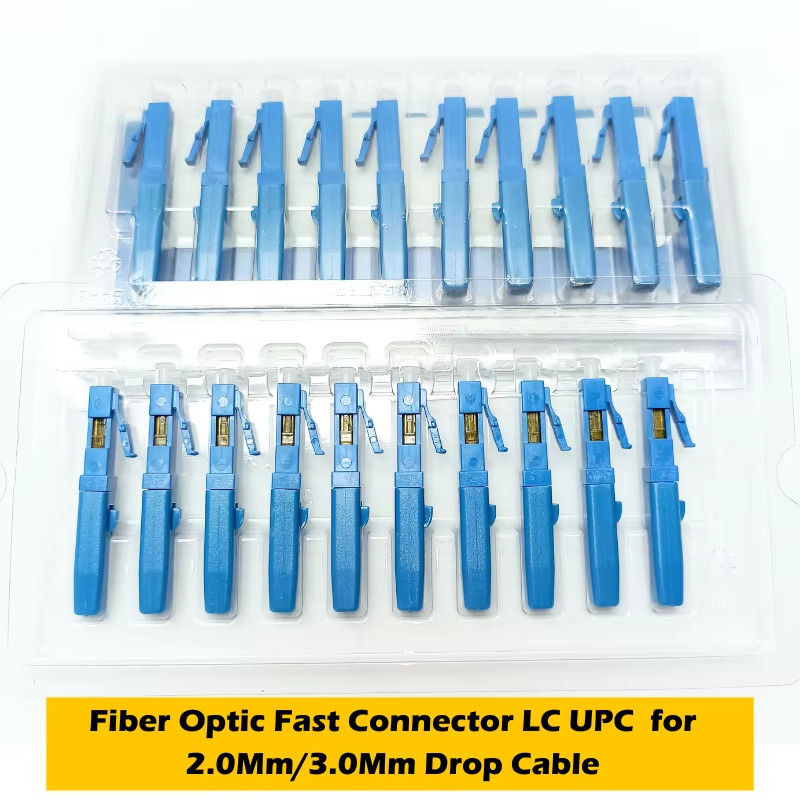

Fiber Optic Fast Connector LC UPC Quick Cold Connection Adapter For Telecommunication LC UPC 2.0mm/3.0mm Drop Cable FTTH
1. FTTH project usable
2. Field installable
3. Insert loss less than 0.5dB
4. Metal V-shape cavity work well in high and low temperature
5. Installation less than 1 minutes
6. Reliable and superior optical performance
7. Cable Tensile test complies with Telcordia GR-326-COR
Application:
1. Distribution frames
2. Maintenance or emergency restoration of fiber networks
3. Patch panels
4. FTTH Outlets
5. Field word
6. 4G network cable dedicated 2*3.0mm length 28mm
ITEM
Technical Parameters
Applicable for
Drop cable / Indoor cable
2.0mm*3.0mm Drop Cable
Optical fiber diameter
SM(9/125)
125μm ( 657A 657B )
Tight buffer diameter
250μm
Fiber mode
Single mode
Operation time
About 100s(no fiber cut)
Insert loss
≤ 0.3dB(1310nm 1550nm)
Return loss
50db(PC), 55db(UPC), 65db(APC)
Fastening strength of naked fiber
5 N
Fastening strength of naked fiber holder
10 N
Tensile strength
50 N
Using temperature
-40~+75°C
On-line tensile strength (20 N)
IL ≤ 0.5dB RL ≤ 5dB
Mechanical durability (500 times)
IL ≤ 0.5dB RL ≤ 5dB
Applicable Fiber Type: Single ModeFiber Diameter: SM(9/125) 125μm (657A, 657B)Tight Buffer Diameter: 250μmFiber Mode: Single ModeOperation Time: Approximately 100 seconds (no fiber cut)Insertion Loss: Less than 0.3dB (1310nm, 1550nm)**High-Performance Connectivity for Fiber Optic Networks**The Fiber Optic Fast Connector LC UPC Quick Cold Connection Adapter is a vital component for ensuring reliable and efficient fiber optic networks. Designed for use in FTTH (Fiber to the Home) projects and other high-speed telecommunication applications, this connector is engineered to deliver superior optical performance. With an insertion loss of less than 0.3dB at both 1310nm and 1550nm wavelengths, it ensures minimal signal degradation, making it ideal for maintaining or restoring fiber networks.**Ease of Installation and Durability**Installation of this LC UPC connector is a breeze, taking less than a minute to complete without the need for any special tools. The cold connection feature allows for quick and easy termination, making it an excellent choice for field installations or emergency restoration. The robust metal V-shape cavity design ensures reliable performance in a wide range of temperatures, from -40°C to +75°C, making it suitable for both indoor and outdoor installations. With a tensile strength of 50 N, it can withstand the rigors of daily use, and the mechanical durability of 500 times ensures long-lasting performance.**Versatile and Compatible**Designed for versatility, this LC UPC fiber connector is compatible with a variety of applications, including distribution frames, patch panels, and FTTH outlets. Its compact size, with a 2.0mm*3.0mm drop cable diameter, makes it ideal for use in tight spaces, while the 28mm length of the cable ensures ample reach for installation. Whether you're working on a 4G network cable dedicated to 2*3.0mm length or any other fiber optic project, this connector is a reliable choice for ensuring high-speed, low-loss connections.
