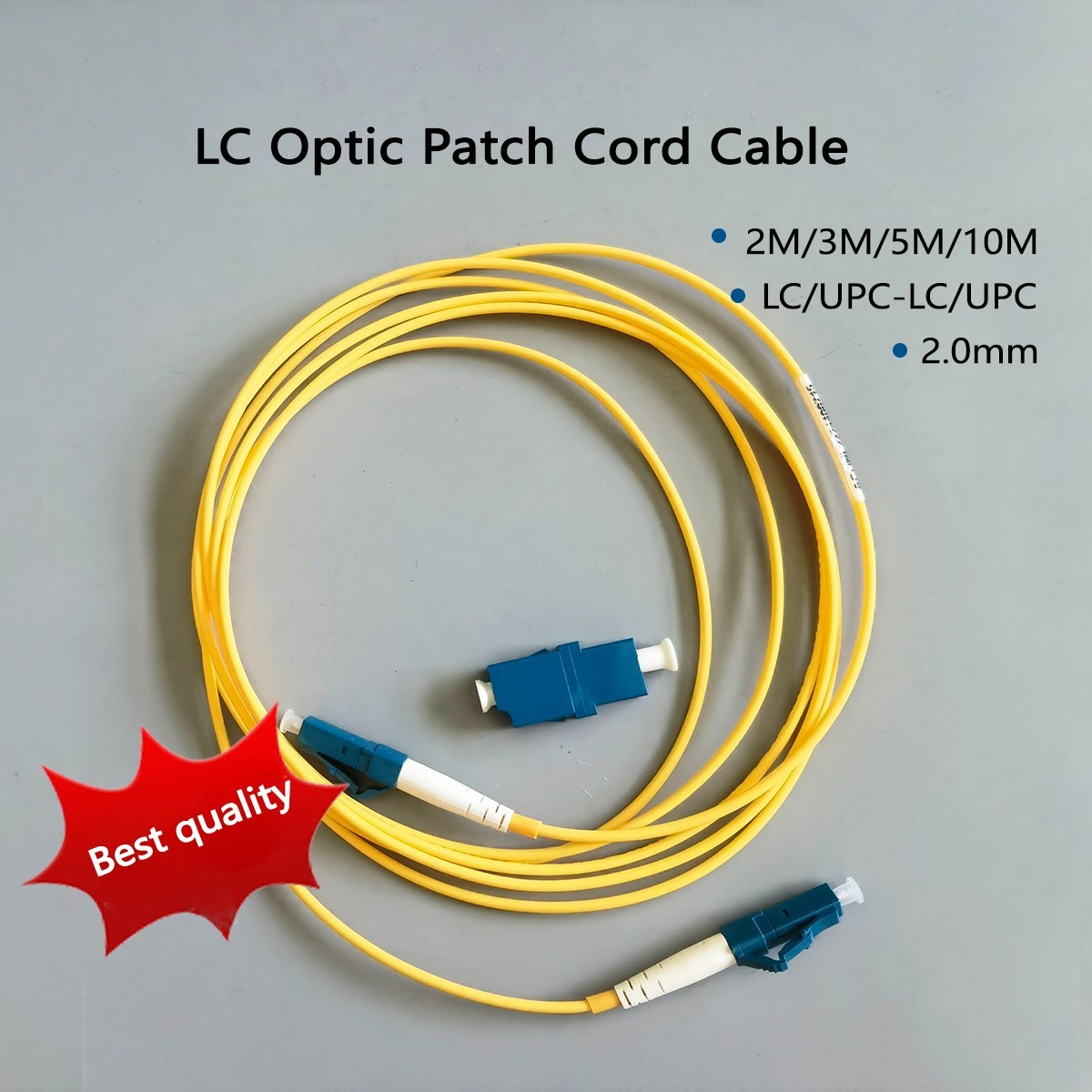

Fiber Optic Patch Cables LC/UPC-LC/UPC Single mode Bend Insensitive 2.0mm 2M-10M
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Fiber Optic Patch Cables LC/UPC-LC/UPC Single mode Bend Insensitive 2.0mm 2M-10M
Price: CN $7.70

Key Features & Benefits:

  • Bend-Insensitive Technology:G657A1/G657A2 compatible fiber enables tight bending radii (down to 7.5mm) without signal loss

  • High-Density optimized:Small form factor LC connectors ideal for space-constrained patch panels and equipment

  • Superior Optical Performance:Ultra-low insertion loss (<0.2dB typical) and high return loss (>55dB)

  • Durable Construction:2.0mm diameter provides perfect balance of flexibility and protection

  • Multiple Length Options:Available in 2M/3M/5M/10M lengths to suit various deployment needs

Technical TypeSingle-Mode OS2Cable TypeSimplexConnectorsLC/UPC to LC/UPCPolish TypeUPC (Ultra Physical Contact)Insertion Loss≤0.3dB (Typical <0.2dB)Return Loss≥55dBCable Diameter2.0mmJacket MaterialLSZH/PVCOperating Temperature-20°C to +70°CMinimum Bend Radius7.5mm (under load)Tensile Load100N maximumPulling Force50N (long term), 100N (short term)
