✔High-Performance OM3 Fiber– Optimized for 10G/40G/100G Ethernet, LAN/WAN, and data center applications with 850nm VCSEL laser sources.​✔12-Core Multimode (50/125μm)– Provides high bandwidth (2000 MHz·km) for short to medium-distance high-speed transmissions.​✔LC/UPC Connector– Ultra-polished UPC ceramic ferrule ensures low insertion loss (<0.3dB) and high return loss (>50dB).​✔0.9mm Tight-Buffered Cable– Flexible, lightweight, and durable for easy indoor installation (FTTH, patch panels, ODFs).​✔– Custom lengths available upon request.​✔Reliable Termination– Factory pre-terminated with premium connectors for plug-and-play deployment.

• Data Centers(SAN, NAS, server interconnects)

• FTTH/FTTX Networks(fiber distribution hubs, splitters)

• Telecom & CATV(patch panels, splicing closures)

• Enterprise Networks(LAN backbone, security systems)

Parameter

Details

Fiber Type

OM3 50/125μm Multimode

Core Count

12-core

Connector Type

LC/UPC (simplex)

Cable Diameter

0.9mm tight buffer

Length

1M/2M (customizable)

Insertion Loss

≤0.3 dB

Return Loss

≥50 dB

Operating Temp.

-20°C to +70°C

Standards

IEC 60793-2-10, Includes:

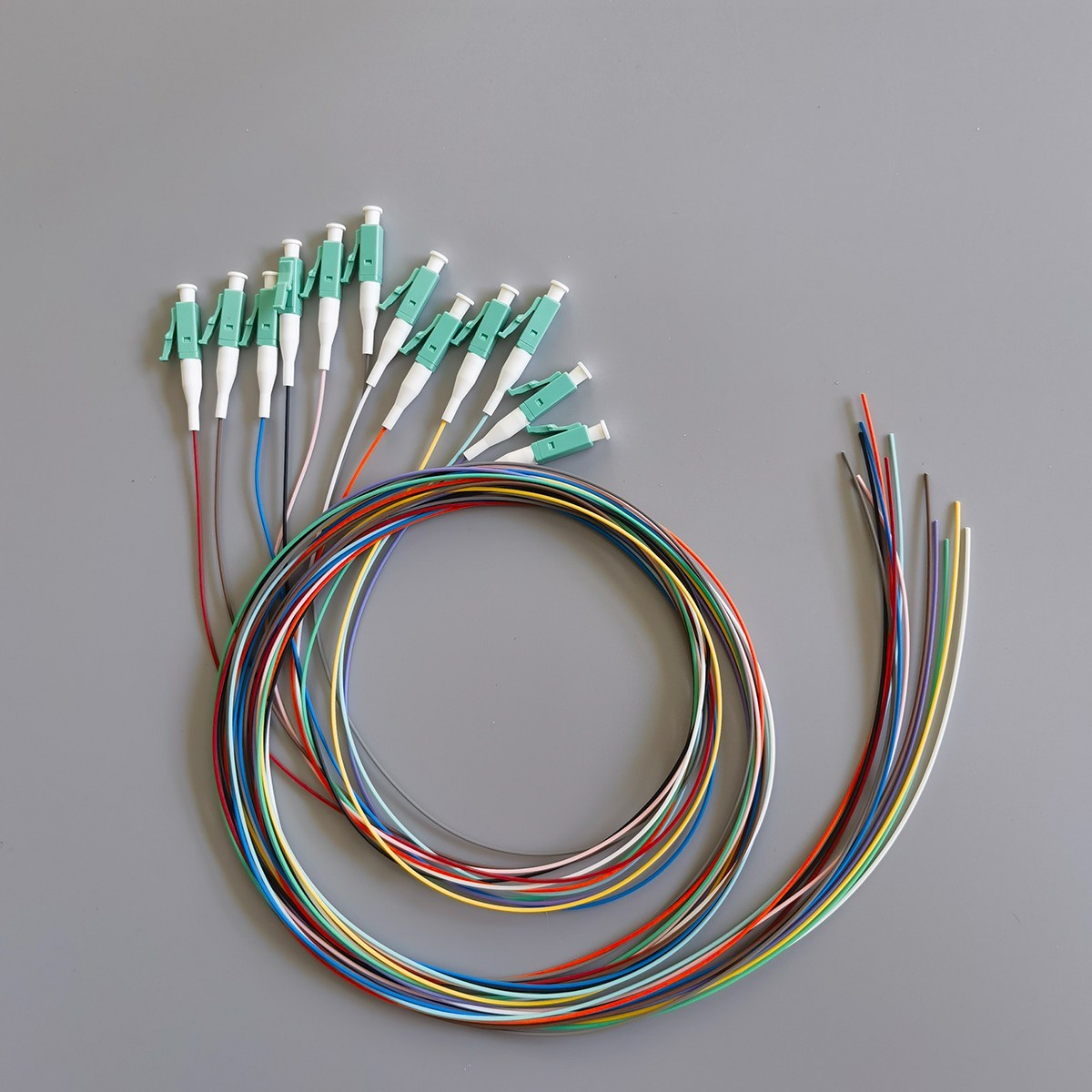

• 1x OM3 12-core LC/UPC fiber optic tail cable (1M/2M)

• Protective caps on connectors

•
