Description:
Fiberdyne Labs

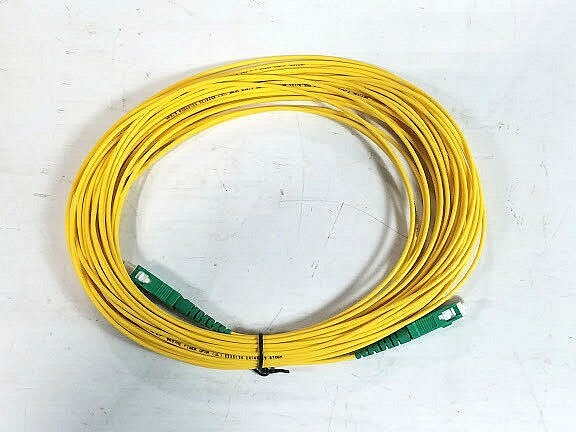

Sm(Single-mode) Simplex B/I(Bi-Directional) 2.0mm; SC/APC-SC/APC, 15meters long; Optical Fiber Cable, 9/125;BIF(Bend Insensitive Fiber), OFNR(Optical Fiber Nonconductive Riser);
Sm(Single-mode) Simplex B/I(Bi-Directional)-Singlemode offerirectional Duplex fiber-Singlemode fiber optic cable has a small core and only one pathway of light. With only a single wavelength of light passing through its core, singlemode realigns the light toward the center of the core instead of simply bouncing it off the edge of the core as with multimode.Singlemode is typically used in long-haul network connections spread out over extended areas--longer than a few miles. For example, telcos use it for connections between switching offices. Singlemode cable features a 9-micron glass core. Asimplex fibercable consists of a single strand of glass of plasticfiber.Simplex fiberis most often used where only a single transmit and/or receive line is required between devices or when a multiplex data signal is used (bi-directional communication over a singlefiber).
OFNR- Optical Fiber Nonconductive Riser-OFNRrefers to thefiberrating of thecablejacketing.OFNRis the designation given by the National Fire Protection Association (NFPA) to interiorfiber-optic cableswhich contain no electrically conductive component, and which are certified for use in Riser application. It is usually used as part of the fiber backbone in between floors in call centers.
BIF- Bend Insensitive Fiber-Opticalfiberis sensitive to stress, particularlybending. ... An optical "trench" - the term used for a ring of lower index of refraction material - was built into thefiberto basically reflect the lost light back into the core of thefiber.Bend insensitive fiber cable offers greater flexibility in demanding environments than traditional fiber cable. Bend insensitive fiber is typically used in data centers or any space constrained area where tight bends and flexibility are required.
SC/APC-SC/APC Connectors-SCis a type offiber optic connectorwith snap (push-pull coupling) coupling type and a 2.5 mm diameter ferrule, which is popularly used in single mode duplex system for its high performance and accurate alignment. APC stands for Angled Polished Connector.This angle prevents back-reflections which will seriously degrade the performance of any analog fiber optic system, such as CATV and Satellite. Sc/apc connectors are green incolor.
*Note- This is a new item. Please take a look at the pictures of the item to make sure it is the product you are wanting to purchase. If you have any questions, feel free to contact us for more information, and we we will do our best to asssist you. Thank you for your business!
Part and Used Items: -All Items listed as new and used are eligible for returns within 30 days -Items must be unused(upon receiving item) and in the same condition it was received -All returns must be in original packaging -Customer is responsible for cost of shipping *Items Listed As "For Parts/Not Working" Are Untested And May Work* *Any Items Sold "For Parts/Not Working" or "AS IS" Not Eligible For Returns*
