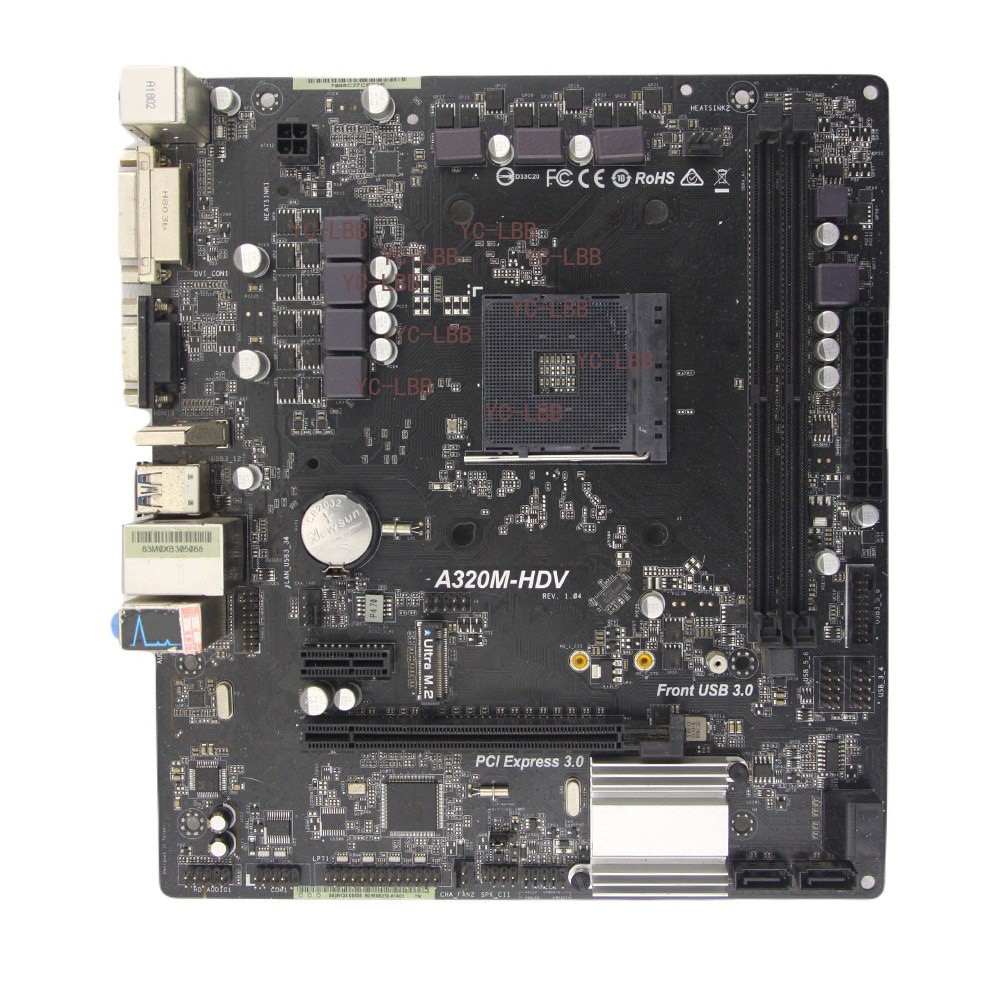

Model: A320M-HDV
Part Number: 80-MXB9L0-A1A01
Compatible Part Numbers: 80-MXB9L0-A1C01 80-MXB9L2-A1C01
Chipset: AMD A320
Socket: AMD AM4
Compatible/Supported CPU: AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge)
Max Supported Memory: 32GB
Number of Memory Slots: 2
Memory Type: DDR4 SDRAM
Storage Interface: SATA 6Gb/s
RAID Support: RAID 0, RAID 1 and RAID 10
Wireless Lan Support: Gigabit LAN 10/100/1000 Mb/s
Audio: Realtek ALC887 Audio Codec
Connectors: 1x Print Port Header; 1x COM Port Header; 1x TPM Header; 1x Chassis Intrusion and Speaker Header; 1x CPU Fan Connector (4-pin); 2x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin); 1x 24 pin ATX Power Connector; 1x 4 pin 12V Power Connector; 1x Front Panel Audio Connector; 2x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection); 1x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection).
Input/Output Ports: 1x PS/2 Mouse/Keyboard Port; 1x D-Sub Port; 1x DVI-D Port; 1x HDMI Port; 2x USB 2.0 Ports (Supports ESD Protection); 4x USB 3.1 Gen1 Ports (Supports ESD Protection); 1x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); HD Audio Jacks: Line in / Front Speaker / Microphone.
Expansion Slots: AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge): 1x PCI Express 3.0 x16 Slot (PCIE2: x16 mode); AMD 7th A-Series APUs / Raven Ridge CPUs: 1x PCI Express 3.0 x16 Slot (PCIE2: x8 mode); AMD Ryzen series CPUs (Picasso, Raven Ridge): 1x PCI Express 3.0 x16 Slot (PCIE2: x8 mode); AMD Athlon series CPUs: 1x PCI Express 3.0 x16 Slot (PCIE2: x4 mode); 1x PCI Express 2.0 x1 Slot.
Form Factor: Micro ATX
Type: Desktop Motherboard
Supported Operating System: Microsoft Windows 10 64-bit
Features: ASRock Super Alloy; Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge & Raven Ridge); Supports DDR4 3200+ (OC) (Ryzen CPU) / 2400 (A-series APU); 1 PCIe 3.0 x16, 1 PCIe 2.0 x1; Graphics Output: HDMI, DVI-D, D-Sub; 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps; 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3); 6 USB 3.1 Gen1 (2 Front, 4 Rear); Realtek Gigabit LAN.
