Welcome to our shop!!!
We have full series SFP Module ,Leave us message if you need other type .Thanks!
We will send out SFP with our default code- Cisco/Mikrotik/Small brand compatible .
Notes: Cisco 2/3/4/5 Series
(For example Cisco 2960 is belong to 2 series) need special code, You need leave us message.All following brands can be compatible, If your switch is belong to following brands, Please leave us a message ,Thanks !

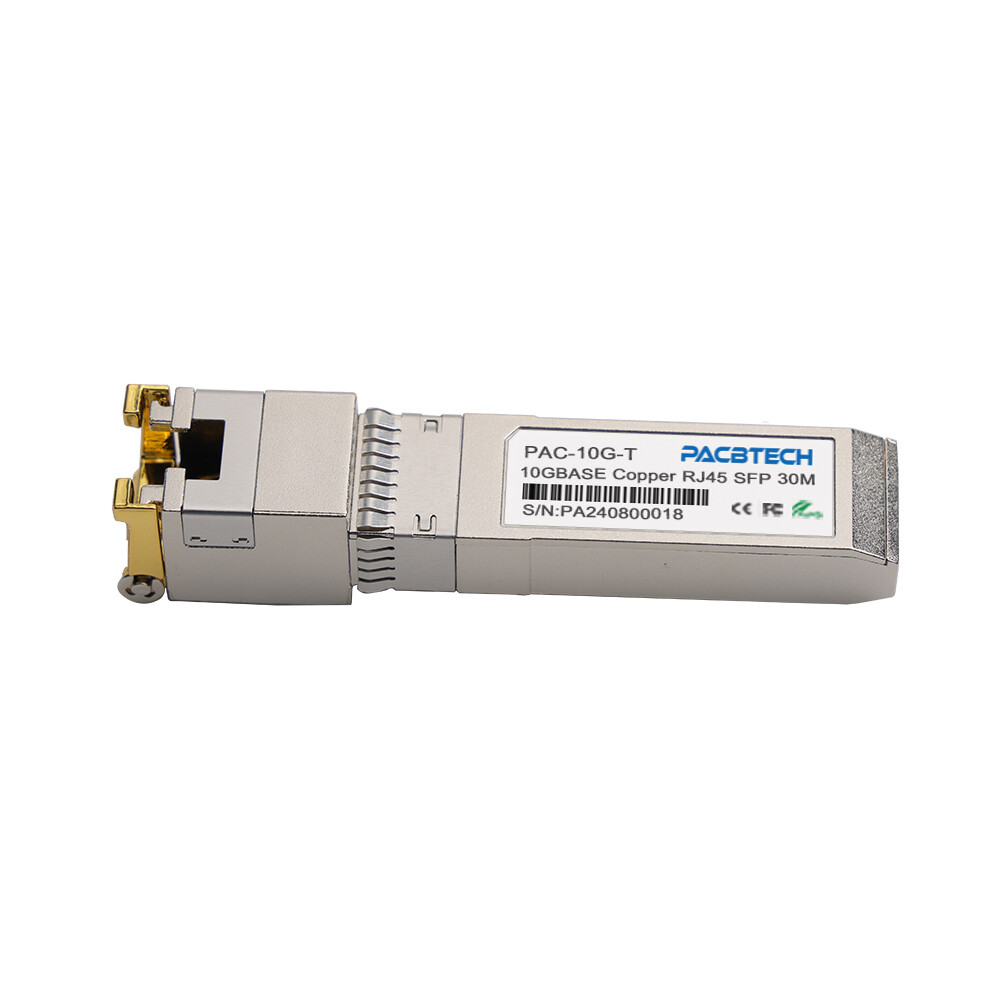

For Cisco SFP-10G-T, Ubiquiti UF-RJ45-10G, Transceiver 10G SFP+ 10Gbase-T Module
The 10GBase-T copper transceiver is a high performance integrated duplex data link for bi-directional communication over copper cable. Durable and Low Power Consumption–Less than 2.5W power dissipation and heat-conducting gasket provide superior heat dissipation function to dissipate heat away from module and increases its service life. It is specifically designed in with Marvell 88X3300 PHY chip following IEEE 802.3an andSFP+MSA.
Features:
- 10GBase-T
- Data Rate: 10G
- 30 meters transmission over CAT.6a/CAT.7
- Interface: RJ-45
- RoHS
- Compliant with 10G Base-T IEEE 802.3an
- Temp. Range(℃): 0~60
Applications:
Product Description Product Description
10GBase-T 10GBase-SR 10GBase-LR 10GBase-offerI 1000Base-T 1000Base-SX 1000Base-LX Data Rate 10G 10G 10G 10G 1.25G 1.25G 1.25G Wavelength RJ-45 850nm 1310nm 1270nm/1330nm RJ-45 850nm 1310nm Fiber Type CAT.6a/CAT.7 MMF SMF SMF CAT.5e MMF SMF Distance <30 m <300 m 10 km 20 km 100 m 550 m 20 km Optical Comp. N/A VCSEL/PIN DFB/PIN DFB/PIN N/A PF/PIN FP/PIN Tx Power(dBm) - -1~-6 1~-3 -2~2 - -8~-4 -9~-3 E.R(dBm) - ≥6 ≥3.5 ≥3.5 - >9 >9 Rx Sens.(dBm) - -11.1~-1 -12.6~0.5 -14~0.5 - -18~0 -22~-3 Temp(℃) 0~60 0~70 0~70 0~70 0~70 0~70 0~70
