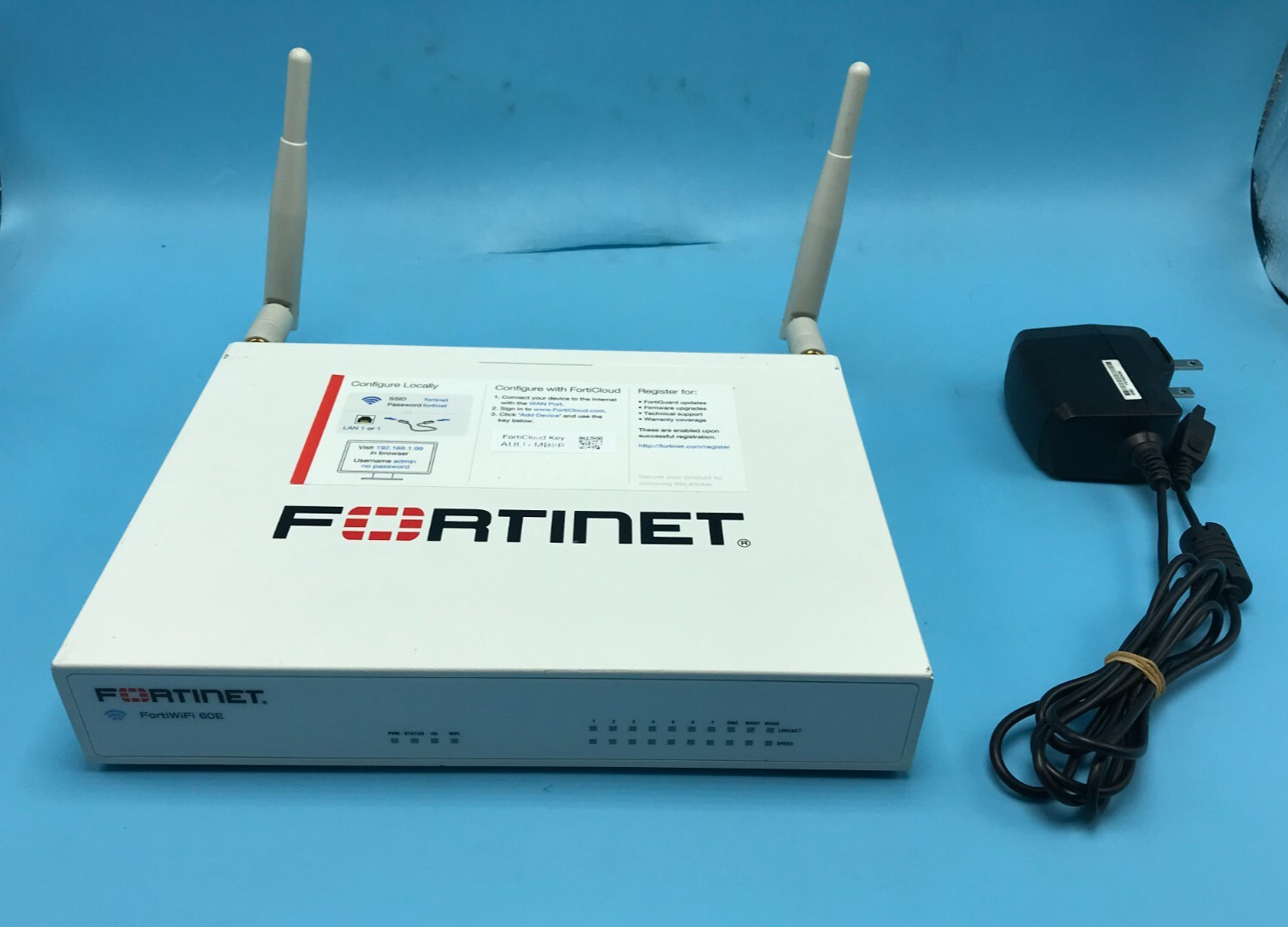

Fortinet FWF-60E FortiWiFi-60E Network Security Appliance w 2x Antenna & Adapter
It was pulled from working environment and tested working
Ac adapter and 2 antennas are included
It shows signs from normal use
OverviewGeneral InformationCategoryFirewall appliancesDescriptionFortinet FortiWiFi 60E - Security applianceManufacturerFortinetMain SpecificationsDimensions & Weight / Depth16 cmDimensions & Weight / Height3.8 cmDimensions & Weight / Weight900 gDimensions & Weight / Width21.6 cmHeader / BrandFortinetMiscellaneous / Product ColorWhiteNetworking / Connectivity Technology
- Wired
- Ethernet
- Fast Ethernet
- Gigabit Ethernet
- IEEE 802.11a
- IEEE 802.11ac
- IEEE 802.11b
- IEEE 802.11g
- IEEE 802.11n
Networking / Form FactorDesktopNetworking / TypeSecurity appliancePackaged Quantity1AntennaAntennaExternalAntenna Qty2Environmental ParametersHumidity Range Operating10 - 90% (non-condensing)Max Operating Temperature40 °CMin Operating Temperature0 °CExpansion / ConnectivityInterfaces
- 2 x 1000Base-T - RJ-45 (WAN)
- 7 x 1000Base-T - RJ-45
- 1 x console - RJ-45
- 1 x USB - Type A
- 1 x 1000Base-T - RJ-45 (DMZ)
General
Depth16 cmDevice TypeSecurity applianceHeight3.8 cmWeight900 gWidth21.6 cmMiscellaneousCompliant StandardsUL, VCCI, C-Tick, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FCC Part 15 B, ICSA Network IPS, ICSA SSL-VPNNetworkingCapacity
- Concurrent TCP sessions: 1300000
- New TCP sessions per second: 30000
- Firewall policies: 5000
- Gateway to gateway IPSec VPN Tunnels: 200
- Client to gateway IPSec VPN tunnels: 500
- Concurrent SSL VPN users: 200
- SSL inspection CPS: 135
- SSL inspection concurrent sessions: 75000
- Virtual domains: 10
- Maximum virtual domains: 10
- Number of FortiSwitches: 16
- Number of FortiAP devices: 30
- Number of FortiAP devices (tunnel mode): 10
- Number of FortiToken devices: 500
Compliant StandardsIEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11acConnectivity TechnologyWireless, wiredData Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11acEncryption AlgorithmSSL, 128-bit AES, 256-bit AES, 256-bit SHA, TLS 1.3FeaturesFirewall protection, switching, routing, VPN support, manageable, antivirus analysis, High Availability, Intrusion Prevention System (IPS), URL filtering, web threat protection, 3G/4G USB Dongle Support, CAPWAP support, application filteringForm FactorDesktopFrequency Band2.4 GHz, 5 GHzNetwork / Transport ProtocolTCP/IP, UDP/IP, IPSecPerformance
- IPS throughput: 400 Mbps
- NGFW throughput: 250 Mbps
- Threat protection throughput: 200 Mbps
- Firewall throughput (1518-byte UDP): 3 Gbps
- Firewall throughput (512-byte UDP): 3 Gbps
- Firewall throughput (64-byte UDP): 3 Gbps
- Firewall latency (64-byte UDP): 3 µs
- Firewall throughput: 4.5 Mbps
- VPN throughput (512-bit IPSec): 2 Gbps
- VPN throughput (SSL): 150 Mbps
- SSL inspection throughput: 135 Mbps
- Application control (AVC) throughput: 650 Mbps
- CAPWAP throughput: 890 Mbps
Remote Management ProtocolHTTPStatus IndicatorsLink/activitySwitching ProtocolEthernetPowerPower Consumption Operational12.6 WattPower DeviceExternal power adapterVoltage RequiredAC 120/230 V (50/60 Hz)Processor / Memory / StorageProcessors InstalledFortinet FortiASIC SOC3Software / System RequirementsOS ProvidedFortiOS
