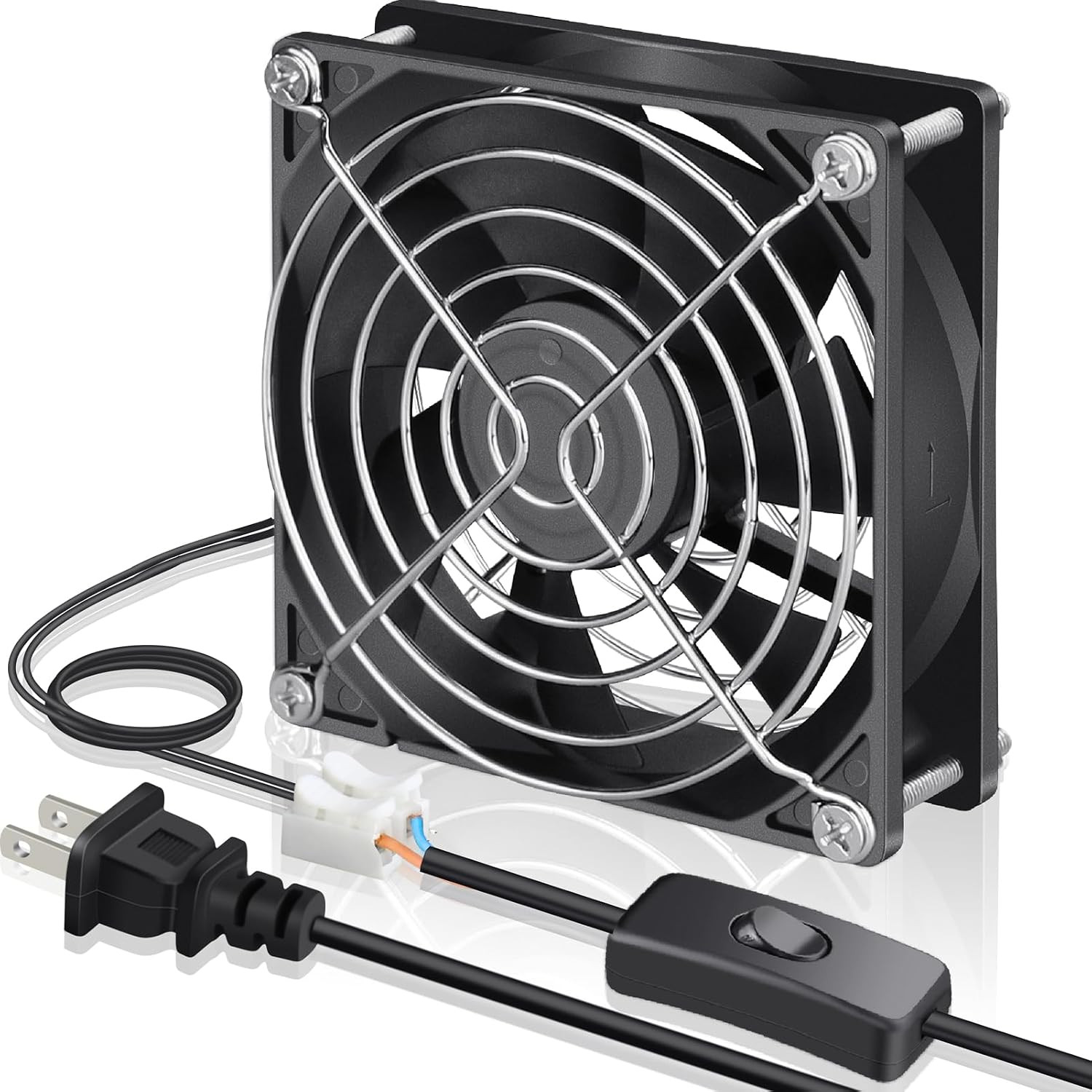

GDSTIME 92Mm EC Axial Fan AC 110V 120V Dual Ball Bearing Brushless CoolingDescription Power Connector Type 2-Pin Voltage 120 Wattage 2 watts Cooling Method Air Compatible Devices Server Noise Level 31 db Maximum Rotational Speed 2400 rpm Air Flow Capacity 54.8 cfm Item Dimensions L x W x H 3.62"L x 3.62"W x 0.98"H Material Type Plastic Brand Name GDSTIME Item Highlight 92x92x25mm, 80-240V wide, 2W Low Power, ON/OFF Switch, for Amplifier, Cabinet Ventilation Exhaust Projects Warranty Description One-year Warranty (Free Replacement) Number of Packs 1 Manufacturer GDSTIME Number of Items 1 Unit Count 1 Count Item Weight 3.1 ounces Model EC9225B Part Number EC9225B Product Dimensions 3.62"L x 3.62"W x 0.98"H Brand GDSTIME Material Plastic

Product description EC Axial Fans

EC fans/motors is highly regarded as the preferred choice for energy efficient motor and fan solutions.Available in 60mm,80mm,90mm,120mm size Run at 110V,115V,120V,220V,240V AC

90mm 110V 120V Fan

Why Choose an EC Fan?

GDSTIME’s EC fans are highly efficient, provide a more compact design, lower energy consumption and longer component life to reduce the costs of operation and maintenance.

• Certified by CE, RoHS.

What is EC Axial Fan? Do you know?

• EC stands for Electronically Commutated, and it combines AC and DC voltages bringing the best of both worlds.
• The motor runs on a DC voltage, but with a normal AC supply. The motor incorporates voltage transformation within the motor.
• The non-rotating part of the motor (stator) is extended to make room for an electronic PCB board which includes power transformation AC to DC, as well as the controls.
• Brushless DC motor / fan driven by AC source input.

• Energy efficient
• Simple connection
• Less power consumption
• Smaller-sized motor for the same level of performance

Key Features High Air Volume

Outstanding airflow performance with low static pressure. The air volume is 1.5-3 times higher than the same AC hood-level fan.

Low Energy Consumption

Efficiency EC motor, allowing EC fans to consume up to 80% less energy. Moved more air at less power consumption.

Dual Ball Bearings

Lightweight motor rotor design and low operating temperature rise, Dual-ball bearings works up to 50,000 hrs.

Global Universal Voltage

All EC axial fans run at 110V, 115V, 120V, 220V, 240V AC (Range from 90 to 270 VAC), include a power cord,wire connector,fan grill and screw set.

Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.5 out of 5 stars 577 4.5 out of 5 stars 577 4.5 out of 5 stars 577 4.4 out of 5 stars 61 4.5 out of 5 stars 79 4.4 out of 5 stars 99 Price $18.99$18.99 $17.99$17.99 $21.99$21.99 $21.99$21.99 $24.99$24.99 $22.99$22.99 Dimension: 60 x 60 x 25 mm (2.4 x 2.4 x 1 in.) 80 x 80 x 25 mm (3.2 x 3.2 x 1 in.) 92 x 92 x 25 mm (3.6 x 3.6 x 1 in.) 120 x 120 x 25mm (4.7 x 4.7 x 1 in.) 120 x 120 x 38mm (4.7 x 4.7 x 1.5 in.) 120 x 120 x 32 mm (4.7 x 4.7 x 1.3 in.) Operating Voltage: 110V - 240V AC 110V - 240V AC 110V - 240V AC 110V - 240V AC 110V - 240V AC 110V - 240V AC Rated Speed: 5000 RPM 2800 RPM 2400 RPM 2700 RPM 2800 RPM 2200 RPM Air Flow: 25.6 CFM 43.6 CFM 54.8 CFM 87 CFM 116 CFM 24.6 CFM Noise Level: 37.3 dBA 31 dBA 31.2 dBA 38 dBA 41.6 dBA 42 dBA Rated Power: 1.5 W 2 W 2 W 3 W 6 W 4 W Input Voltage: 90 - 270V AC 90 - 270V AC 90 - 270V AC 90 - 270V AC 90 - 270V AC 90 - 270V AC Fan Bearings: Dual Ball Dual Ball Dual Ball Dual Ball Dual Ball Dual Ball Lifespan: 50,000 hrs 50,000 hrs 50,000 hrs 50,000 hrs 50,000 hrs 50,000 hrs

Product Description

Lightweight Compact Construction

This EC axial fan's operating temperature rise is very low, so the EC fan's housing can be constructed of PBT Material, its impeller and blades are one-time injecting molded with thermoplastic. It has 300 millimeter AWM 1007 24 AWG 80℃ 300V VW-1 wireleads. High precisious long life dual ball bearings and ec fan motor,the fans lifespan up to for 50,000 hours at 77℉. (The Operating Temperature is 14℉ to 167℉)

Applications

The EC axial fan widely used for ventilation of residential, office and industrial buildings or as a replacements fans. It can be mounted flat or upright.

Popular used in Air Handlers, Cabinet Cooling, Commercial Refrigeration, HVAC, Copiers & Projectors, Air Cleaners & Heaters, Server/Storage Devices, Vending Machines, Mobile Devices, Purifiers, and other electronics and components.

Package Contain:

1x EC axial fan

1x Metal fan grill

1x Spring wire connector

1x 4.9ft US 110V 120V AC power cord

4x Screws and nuts for quick mounting

Add to Cart Add to Cart Add to Cart Customer Reviews 4.3 out of 5 stars 639 4.3 out of 5 stars 639 3.7 out of 5 stars 9 4.3 out of 5 stars 639 Price $24.99$24.99 $40.99$40.99 — no data $52.99$52.99 Dimension: 120 x 120 x 38 mm (4.7 x 4.7 x 1.5 in.) 150 x 150 x 50 mm (5.9 x 5.9 x 2 in.) 172 x 172 x 51 mm (6.8 x 6.8 x 2 in.) 200 x 200 x 60 m (7.9 x 7.9 x 2.4 in.) Rated Speed: 2600-2900 RPM 2550 RPM 2550 RPM 2700 RPM Air Flow: 109-118 CFM 182 CFM 182 CFM 182 CFM Noise Level: 40-41.6 dBA 42 dBA 42 dBA 42 dBA Rated Power: 25 W 38 W 38 W 38 W Fan Bearings: Dual Ball Dual Ball Dual Ball Dual Ball Voltage: 110 - 120V AC 110 - 120V AC 110 - 120V AC 110 - 120V AC

• Package include: 1 Piece fan include fan grill and mounting screws & nuts; 1x US Plug Power Cord; 1x Wire Clip
• This fan can easily run from 90 to 270VAC current without any trouble.
• 92x92x25mm AC 110V 115V 120V 220V 240V; Speed:2400rpm; 2.0W
• The motor runs on a DC voltage, but with a normal AC supply. DC motors already have low power consumption but if used in an AC application
• Dual-ball bearings have a lifespan of 50,000 hours and allows the fans to be laid flat or stand upright.
