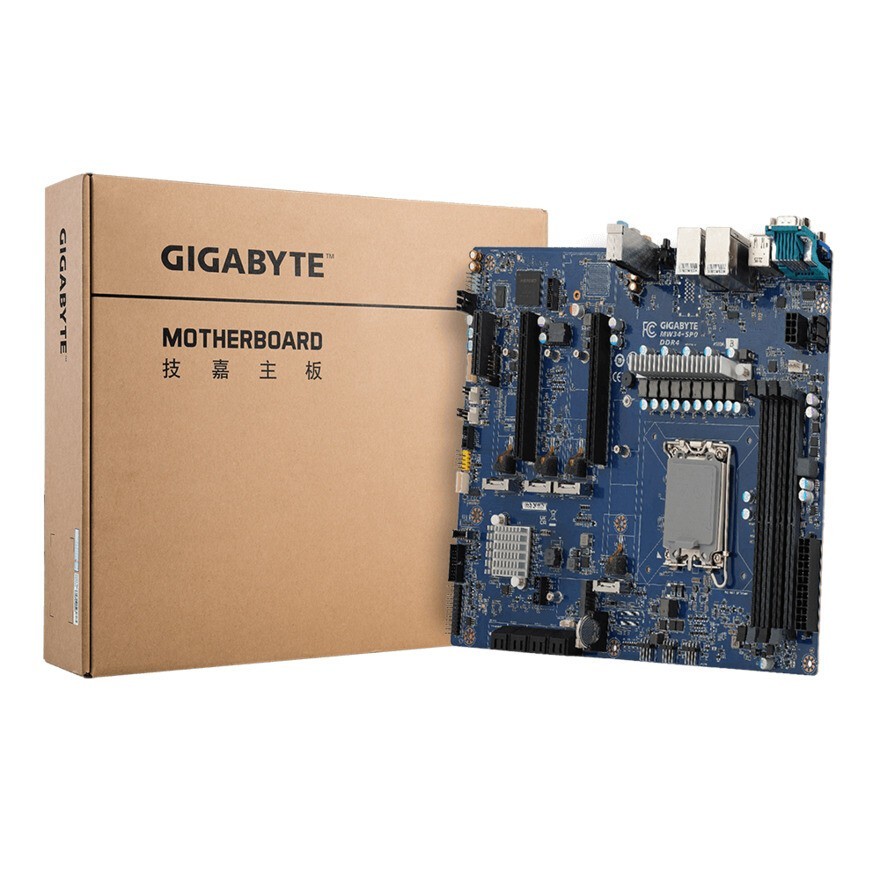

GIGABYTE MW34-SP0（Rev1.1） LGA1700 W680 DDR4 IPMI Support 12/13/14 th i7/i9 CPU For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

GIGABYTE MW34-SP0（Rev1.1） LGA1700 W680 DDR4 IPMI Support 12/13/14 th i7/i9 CPU

Price: CN $799.00

Please note: The buyer is responsible for customs clearance and payment of duties.

If you have other configuration needs, you can contact us and we will customize it for you.

GIGABYTE MW34-SP0（Rev1.1） LGA1700 W680 DDR4 IPMI Support 12/13/14 th i7/i9 CPU

Board Size

ATX
305W x 244D mm

Processor Supported

14th Gen Intel®Core™ Desktop Processor
13th Gen Intel®Core™ Desktop Processor
12th Gen Intel®Core™ Desktop Processor
Single processor

Socket

1 x LGA 1700

Chipset Description

IntelW680

Memory Type

4 x DIMM slots
DDR4 memory supported only
Dual channel memory architecture
ECC UDIMM supported
Total capacity up to 128GB
Memory speed: Up to 3200 MT/s

Storage Interface

PCH:
- 8 x SATA 6Gb/s ports

Expansion Slot

Slot_6: PCIe x16 (Gen5 x16 or x8) slot, from CPU,shared with Slot_3
Slot_3: PCIe x16 (Gen5 x8) slot, from CPU
Slot_1: PCIe x4 (Gen3 x4) slot, from PCH

1 x M.2 slot for storage:
- M-key
- PCIe Gen4 x4, from CPU
- Supports 2280/22110 cards

3 x M.2 slots for storage:
- M-key
- PCIe Gen4 x4, from PCH
- Support 2280 cards

1 x M.2 slot for Wi-Fi:
- E-key
- PCIe Gen3 x1, from PCH
- Supports 2230 cards

On-Board Connector

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
6 x System fan headers
1 x Front audio header
1 x USB3.2 Gen2x2 header
1 x USB3.2 Gen1 x2 header
1 x USB2.0 x2 header
4 x M.2 slots for storage
1 x M.2 slot for Wi-Fi
8 x SATA connectors
1 x Front panel header
1 x Backplane board header
1 x PMBus header
1 x IPMB header
1 x TPM header

Rear I/O Connectors

1 x USB 3.2 Gen2x1 (Type-C)
3 x USB 3.2 Gen1 (Type-A)
1 x HDMI
1 x DP
1 x VGA
1 x COM
1 x RJ45
1 x MLAN
3 x Audio jacks
1 x ID button with LED

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit:CTM010

PSU Connector

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector

Operating Properties

Operating temperature: 10°C to 40°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

About US

We have all models included,

due to the price and stock varies a lot, if you need other models, you can contact us，

we will give you a quote, our product price is very low and you can order in large quantities.

We are looking forward to a perfect style="text-wrap: wrap; text-align: left;">We will ship 98% of items within 5 working day upon receipt of payment, our goal is: to ship them as fast as we can.

1. All orders are shipped from China

2. Make sure your address is correct, we ship to 's address only.

4. Item will be shipped within 5 day after full payment is received(NOT counting holidays or weekends)

5. Orders are shipped Monday through Friday, excluding US federal holidays. No orders are shipped on weekends

6. All parcels will provide a tracking number for your tracking.

9.Import duties and taxes are not included in the item price or shipping charges. These charges are the buyer's responsibility.

If the product is faulty, please contact us via mail and we will provide a good solution for you.
