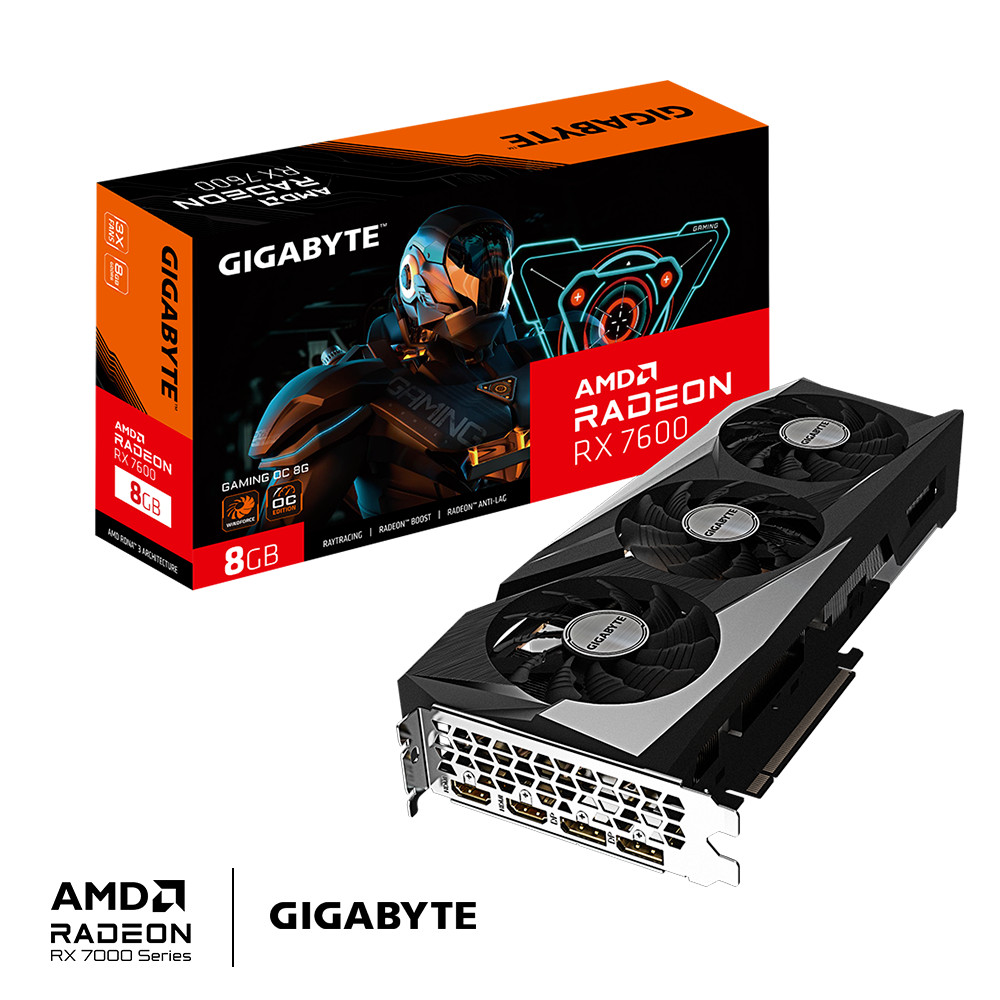

Poweredby Radeon™ RX 7600. Integrated with 8GB GDDR6 128-bit memory interface.WINDFORCE cooling system. RGB Fusion. Protection metal back plate.

• Graphics Processing

Radeon™ RX 7600

• Core Clock

Boost Clock* : up to 2755 MHz (Reference card: 2655 MHz)
Game Clock* : up to 2355 MHz (Reference card: 2250 MHz)

• Stream Processors

2048

• Memory Clock

18 Gbps

• Memory Size

8 GB

• Memory Type

GDDR6

• Memory Bus

128 bit

• Card Bus

PCI-E 4.0

• Digital max resolution

7680x4320

• 4
  • Card size

  L=282 W=115 H=50 mm

  • PCB Form

  ATX

  • 12 Ultimate
    • 4.6
      • Recommended PSU

      550W

      • Power Connectors

      8 pin*1

      • DisplayPort 1.4a *2
        HDMI 2.1a *2
        • Quick guide
          • * “Boost Clock” is the maximum frequency achievable on the GPU running abursty workload. Boost clock achievability, frequency, and sustainability willvary based on several factors, including but not limited to: thermal conditionsand variation in applications and workloads.
            * “Game Clock” is the expected GPU clock when running typical gamingapplications, set to typical TGP (Total Graphics Power). Actual individual gameclock results may vary. GD-147


            * The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dressand the HDMI Logos are trademarks or registered trademarks of HDMI LicensingAdministrator, Inc.
            * The entire materials provided herein are for reference only. GIGABYTEreserves the right to modify or revise the content at anytime without priornotice.
            * Advertised performance is based on maximum theoretical interface values fromrespective Chipset vendors or organization who defined the interfacespecification. Actual performance may vary by system configuration.
            * All trademarks and logos are the properties of their respective holders.
            * Due to standard PC architecture, a certain amount of memory is reserved forsystem usage and therefore the actual memory size is less than the statedamount.
