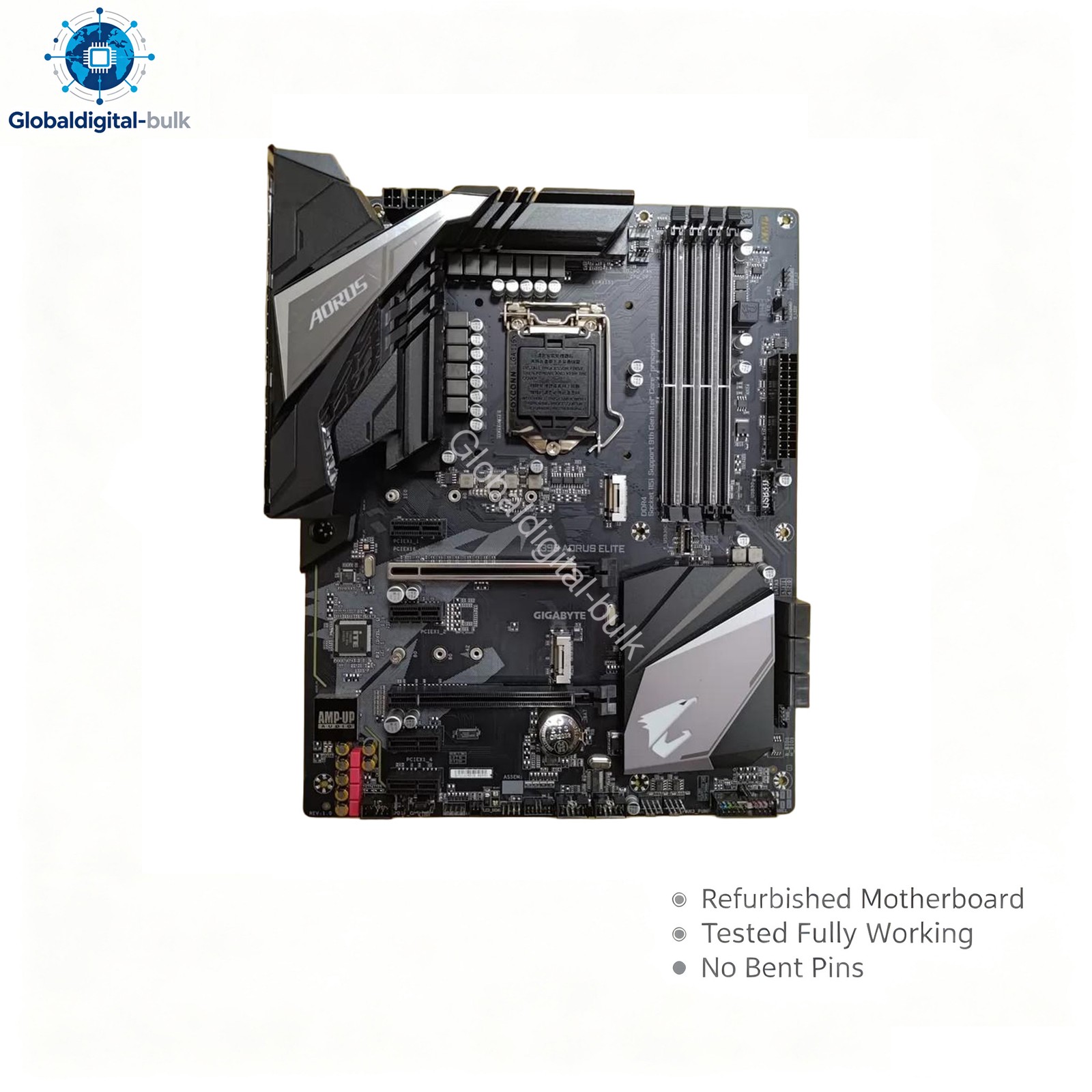

Model: GIGABYTE Z390 AORUS ELITE (Rev.1.0) - CPU SupportSocket: LGA1151Compatible CPUs: 9th & 8th Gen Intel Core i9/i7/i5/i3, Pentium Gold, Celeron ProcessorsPower: 12+1 Phase Digital DrMOS VRM, Solid 8+4 pin CPU power connector, screw-mounted VRM heatsink
- ChipsetIntel Z390
- Form FactorATX, 30.5 cm × 24.4 cm
- Memory4 × DDR4 DIMM sockets, Dual Channel Non‑ECC UnbufferedMax Memory: 128 GBSupported Speed: DDR4 MHzSupports XMP profile
- Expansion Slots
- 2 × PCIe 3.0 x16 (Primary slot x16, secondary max x4, CrossFire support)
- 3 × PCIe 3.0 x1
- Storage
- 2 × M.2 Key M sockets (Main slot with M.2 Thermal Guard; supports 2242/2260/2280 PCIe3.0 x4 NVMe SSD)
- 6 × SATA III 6Gb/s ports, Intel RAID & Intel Optane ready
- Back Panel I/O
- 1 × HDMI 1.4
- 4 × USB 3.1 Gen1
- 2 × USB 3.1 Gen2
- 4 × USB 2.0
- 1 × RJ45 Gigabit LAN
- Optical S/PDIF out
- 5 × 3.5 mm Audio Jacks
- Internal Onboard Headers
- USB 3.1 Gen1 Type-C front panel header
- USB 3.1 Gen1 header (2 ports)
- Two USB 2.0 headers
- Multiple hybrid fan headers with Smart Fan 5 & FAN STOP
- RGB LED strip header, Addressable RGB LED header
- Front audio, COM, TPM, chassis intrusion header
- LANIntel I219-V Gigabit Ethernet, bundled cFosSpeed traffic management software
- AudioRealtek ALC1220-VB HD Audio, WIMA premium audio capacitors, audio noise guard shielding
- RGB LightingRGB FUSION 2.0, multi-zone onboard RGB lighting, compatible with RGB & Addressable RGB strips
- Monitoring & ThermalSmart Fan 5 multi-point thermal sensing, hybrid fan headers, VRM heatsink with thick thermal pads
- Operating SystemWindows 10 64-bit, Windows 8.1, Windows7 64-bit
- Features2oz Copper PCB, anti-sulfur resistors, reinforced PCIe slots, pre-mounted I/O shield, CEC 2019 compliant
 |
|
