Selling The Sender Only with Power Supply
Extend DVI, USB, RS-232 and Analog Audio up to 6,600 feet (2 km)
The DVI 3500HD allows you to operate a single DVI-compliant computer from a remote workstation up to 6600 feet away. DVI, USB, analog audio, and RS-232 are extended from the local computer to the remote workstation. USB peripherals can be operated by the computer at either location exclusively.
How It Works
The DVI 3500HD system consists of a Sender and a Receiver unit. The Sender connects to the computer's DVI-compliant video card output, analog audio jack, RS-232 port, and USB port. The DVI 3500HD Receiver connects to the remote display and peripherals. Four strands of LC fiber optic cable connect the Sender and Receiver together. The DVI 3500HD has two modes of USB operation. When in local mode, the computer sees USB devices connected to the Sender unit. When in remote mode, the computer sees USB devices connected to the Receiver unit. Modes are switched using a switch on the front panel of the Sender unit. Note:
Extension distance will depend on the type of fiber media used: Single Mode: WUXGA resolution @ 2000m (6,600ft)
Multi-Mode : WUXGA resolution @ 500m (1,650ft) DVI up to 6,600 feet (2000 meters) with singlemode
Extends DVI up to 1,650 feet (500 meters) with multimode along with USB, analog audio, and RS-232
Supports video resolutions up to 1920 x 1200
Uses four-strand multi-mode LC terminated fiber cables
Supports Virtual DDC and DDC2B protocols
Supports DDWG standards for DVI compliant monitors
Supports USB 1.1
USB can be switched between the local computer and the remote workstation Pixel Clock: 165MHz
Input Video Signal: 1.2V p-p
Input DDC Signal: 5V p-p (TTL)
Video Input Connector (Sender): (1) DVI-D (24 pin), female (digital only)
Video Monitor Output Connector (Sender): (1) DVI-D (24 pin), female (digital only)
Audio Input Connector (Sender) (1) 3.5 mm mini-stereo jack
Audio Output Connector (Receiver) (1) 3.5 mm mini-stereo jack
USB Host Connector (Sender): (1) USB Type B
USB Local Device Connectors (Sender): (2) USB Type A, female
USB Device Connectors (Receiver): (4) USB Type A, female
RS-232 Port (Sender): (1) DB-9, female
RS-232 Port (Receiver): (1) DB-9, male
Link Connectors (Sender / Receiver): (4) Type LC fiber connectors (2 x LC Duplex)
Fiber Cable: CAB-LC-XXX (62.5μ multi-mode)
Console Connector (Sender / Receiver): (1) RJ-45 jack (for future use)
Power Supply (Sender / Receiver): 2 x 12V DC
Power Consumption: 36W (max.) each
Dimensions (Sender / Receiver): 12.4" W x 5" D x 1.6" H
Shipping Weight: 8 lbs.
SKU: EXT-DVI-3500HD
UPC: Good

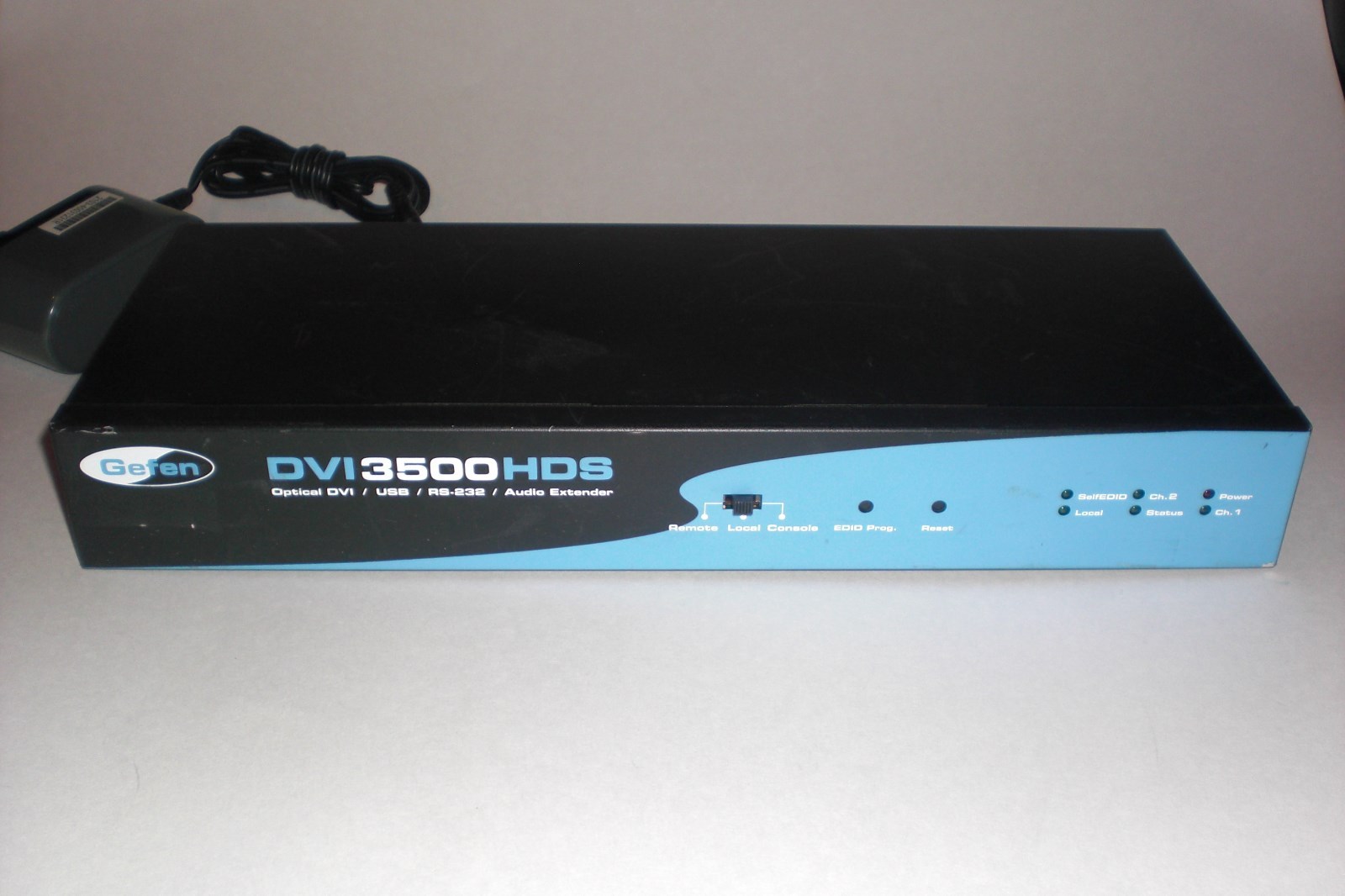

Note: Selling the Sender Only , Scratches, Blemishes, and Scrapes - The Gefen DVI Sender is in Good Condition, Used, Tested, Works
Package will Contain:
The Gefen DVI3500HDS Sender Only with Power Supply Adapter (Not The style="margin: 5pt 0in; line-height: normal; -ms-text-autospace:; mso-pagination: none; mso-layout-grid-align: none;">Payment:
