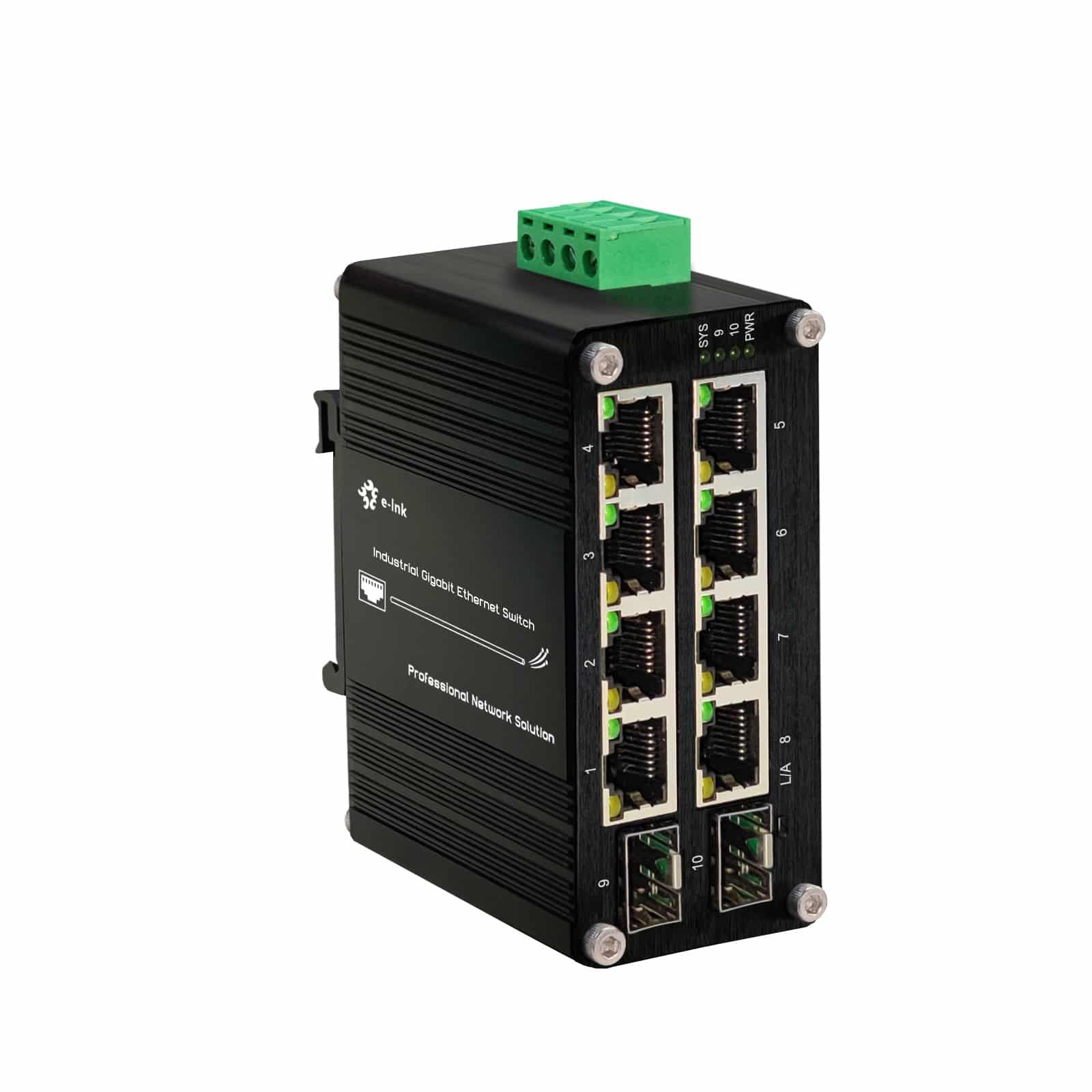

Gigabit 8-Port Network Switch (8×RJ45+2×SFP) Slots Industrial Ethernet Switch Overview
- 8×10/100/1000Base-TX + 2×100/1000Base-X SFP Fiber Switch
- 10/100/1000Mbps RJ45 Port Supports Full/Half-duplex, Auto-negotiation, Auto MDI/MDIX
- Supports 802.3x Flow Control
- Support IEEE802.3/802.3u/802.3ab/802.3z/802.3x store and forward mode
- IEEE 802.3az Energy Efficient Ethernet (EEE)
- Redundant Power Inputs
- Supports DIN-Rail installation
- -40°C to 80°C (-40°F to 176°F) operating temperature
Application
High-Speed Surveillance– 8×RJ45 Gigabit ports and 2×SFP fiber ports provide stable connectivity for IP cameras, NVRs, and wireless access points over long distances.
Industrial & Factory Networks– Supports industrial devices, automation systems, and network expansion; DIN-Rail mountable with redundant power inputs ensures reliability.
Flexible Deployment– TP ports support 10/100/1000M Base-TX, full/half duplex, auto MDI/MDIX; SFP supports single- or multi-mode fiber for versatile network design.
Rugged Harsh Environment Use– Operating temperature -40°C~80°C, fanless design, suitable for outdoor, industrial, and harsh network installations.
Mini Industrial 2SFP + 8RJ45 Fiber Switchdelivers reliable Gigabit connectivity for industrial networks, surveillance systems, and wireless access deployments.
Package does not include power supply and optical modules
Fiber Switch Technical IndexesEthernetStandards:IEEE802.3 10BASE-TIEEE802.3u 100BASE-TX/FXIEEE802.3ab 1000BASE-TIEEE802.3z 1000BASE-XIEEE 802.3az Energy Efficient Ethernet (EEE)Forward & FilteringRate:14,880pps (10Mbps)148,800pps (100Mbps)1,488,000pps (1000Mbps)Backplane bandwidth20GbpsPacket BufferMemory:9216 bitsProcessing Type:Store-and-ForwardMax Packet Length:9K Bytes Jumbo FrameAddress Table Size:4KMAC AddressesInterfaceConnector:8x RJ45Optical Port:2x 100/1000Base-XSFPEnvironmentalOperating Temperature:-40°C to 80°C (-40°F to 176°F)Storage Temperature:-40°C to 85°C (-40°F to 185°F)Relative Humidity:5% to 95% non-condensingMTBF> 200,000 hrsElectrical and MechanicalInput Power:12~48VDC,Redundant Power (4-pin Terminal Block)Power Consumption:5W Max.Protection:Power Input Overload:Automatic ResettableReverse Polarity:PresentLED Indicators:PWR:Power StatusEthernet (Per Port):Link/ActivityFiber:Gigabit SFP Port: F9~F10Dimensions (WxDxH):95x 70x Options:DIN-Rail mountRegulatory ApprovalsISO9001, CE, RoHS, FCCEN55022:2010+AC: 2011, Class AEN 61000-3-2: 2006+A1: 2009+A2: 2009EN 61000-3-3: 2013EN55024:2010IEC 61000-4-2: 2008 (ESD)IEC 61000-4-3: 2010 (RS)IEC 61000-4-4: 2012 (EFT)IEC 61000-4-5: 2014 (Surge)IEC 61000-4-6: 2013 (CS)IEC 61000-4-8: 2009 (PFMF)Fiber Switch Ordering Industrial8-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet SwitchSFP Options► SFP option. Please select your SFP on our SFP Options Page► SFP module is to be purchased separately.Mounting Options► Default DIN-Rail Bracket installed.Power Options► Open Wire for Terminal Block.► Power Supply is to be purchased usPaymentWe accept
