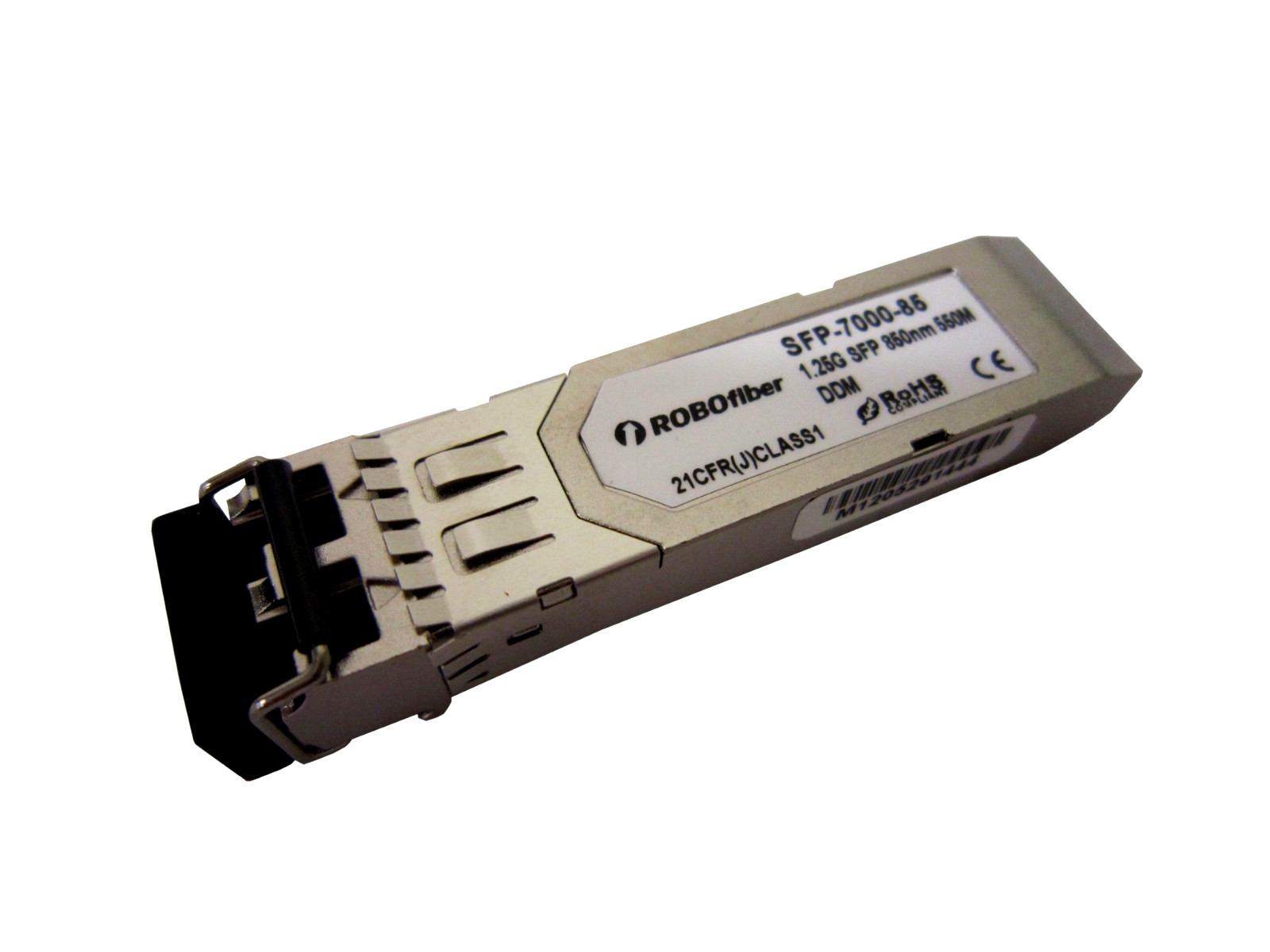

TheSFP-7000-85 is a Gigabit Ethernet SFP (Small Form Pluggable) optical module with 1.25G data rate and LC optical connector. It operates as 1000Base-SX standard, covering a range of 550m on multimode fiber 50/125um cable or up to 275m on 62.5/125um multimode fiber cable. It can be used in any modern Ethernet switch equipped with SFP (miniGBIC) slots, aswell as on any of the fiber optic media converters with SFP slot provided on by sales_fo4all.The opticalmodule has been tested and found 100% compatible with various Ethernetswitches from major manufacturers like: Cisco, Nortel, Extreme, ZyXEL,D-Link or Netgear.Technical Specifications:
Operating media :MM - multimode fiber 50/125um (550m - distance covered) or 62.5/125um (max. distance 275m only)
Data rate : 1.25G
Optical connector : LC
Wavelength :850nm
Max. Output Power(dBm) : -4 dBm
Min. Output Power (dBm) : -9.5 dBm
Sensitivity (dBm) : -18 dBm
Power budget (dB) : 8.5 dB
Diode type : VCSEL
Allunits are new. All products sold by Fiber Optic for All come with 2 years manufacturer warranty.
