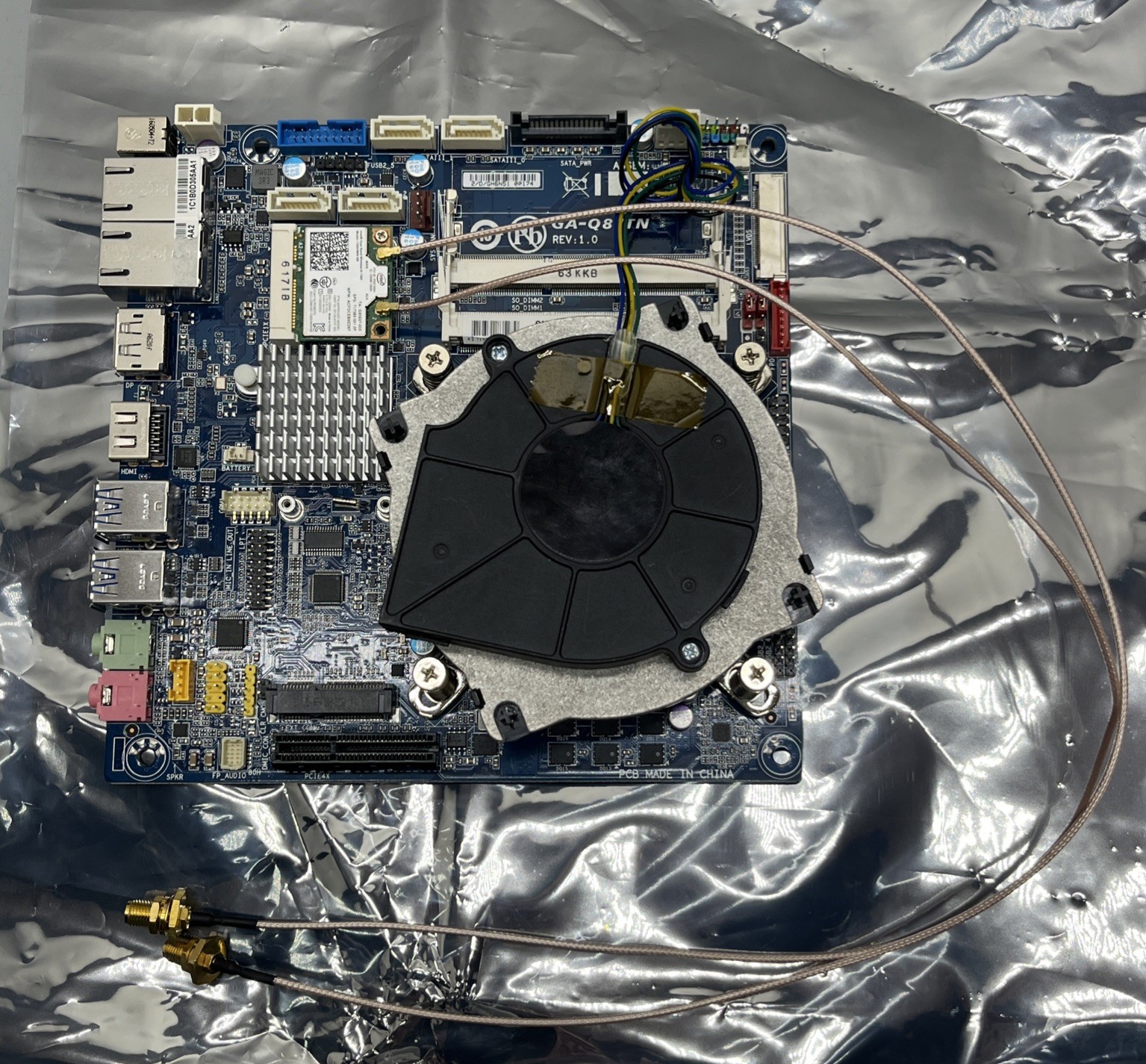

Gigabyte ITX DDR3 Motherboard GA-Q87TN PCI Express x4 w/ Heatsink WIFI For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Gigabyte GA-Q87TN PCI Express x4, Onboard audio w/ Heatsink & WIFI included Only items pictured are included. - No Ram- No CPU- No I/O Shield Key Specifications:
CPU Support:Intel Core i7/i5/i3/Pentium/Celeron (LGA1150, up to 84W TDP).
Chipset:Intel® Q87 Express.
Memory:2 x DDR3 SO-DIMM (up to 16GB).
Form Factor:Thin Mini-ITX (170mm x 170mm).
Graphics:Integrated Intel HD Graphics with HDMI, DisplayPort, LVDS.
Expansion:1 x PCIe x4 (25W max).
Storage:SATA III ports, mSATA slot.
Networking:Realtek GbE LAN.
USB:USB 3.0, USB 2.0 ports.
Audio:Realtek ALC887 codec.
Power:DC-in (12V-19V), supports various power adapters.
Special Features:LVDS/Backlight power jumpers, TPM header, supports Intel Wireless Display.
Ideal For:
All-in-One (AIO) PCs.
Small Form Factor (SFF) systems.
Embedded/Industrial PCs (IPC) due to DC power flexibility.
