Dear valued buyer, thank you for viewing our page. We will provide you best service and high quality products. Every Item will be inspect before ship it out, we ensure it qualified in orders, and everyone will be packaged carefully. You must be happy to do business with us.
we specialize in computer accessories and so on. we only sell original parts please buy with confidence. Motherboard model

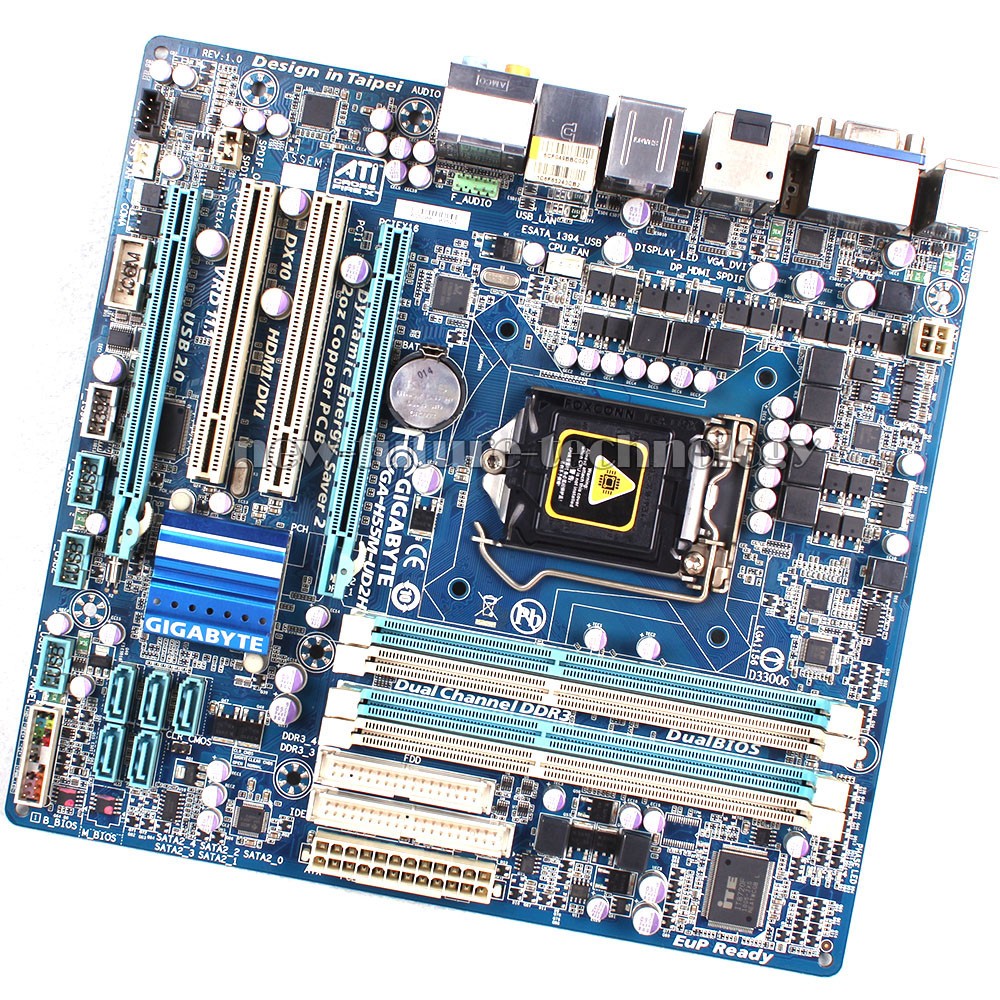

GA-H55M-UD2H

Package Included

1 x Motherboard.

2x sata cable(free gift).

1 xI/O back panel.

We accept PayPal payment ONLY.

This item will be shippedworldwild by mail as soon as possible.

We only ship to address,please give us the exact address and phone# through .

Please note The tax of import duty is not included in the item price or shipping fees. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to offerding or buying.

1.Standard shipping :

Usually To United States be shipped via ePacket (delivered by USPS) , other countries will be shipped via AIR MAIL ,not expedited shipping.

Shipping time(Standard shipping)

Area

Normally delivery time

USA

10-20 days

European Union

12-25 days

Australia Canada Europe Countries

12-25 days

Asia countries

15-30 days

Other countries

15-40 days

it maybe arrive late,if you want to get it fast, please choose expedited shipping when buying.

My items has still not arrived ?

Read the shipping details firstto determine the expected delivery time , if your items has not

arrived within that time(weekends and holidays were not included ),please email us.

2. Expedited shipping:

USA ,UK, Europe,CA ,Usually need 3-5 days arrive.other country 4-7 days,it must add 20-35USD shipping fee(according to your country).

1. Customer should make initial contact in7 days from receiving the order. Products must be returned in originalcondition.

2. Please contact us before returning itemsand we will provide the shipping address. DO NOT send without communication.

3. Both shipping cost: The cost of itemshipping back is buyer's responsibility, the resend shipping cost is seller's.

4. Please do not return any items without an authorization number or other instructions by us. Any packages that are send without our knowledge will be refused and no replacements will be issued. Wrong item ordered or non defective part returns require a 20% restocking fee. All products are marked with serial number and QC badge.Any products returned without our serial number and QC badge will be rejected as not our parts..

General information:

CPU

1. Support for an Intel® Core™ i7 series processor/Intel® Core™ i5 series processor/ Intel® Core™ i3 series processor in the LGA1156 package
2. L3 cache varies with CPU

(Please refer "CPU Support List" for more information.)

Chipset

1. Intel® H55 Express Chipset

Memory

1. 4 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory (Note 1)
2. Dual channel memory architecture
3. Support for DDR3 2200+/1800/1600/1333/1066/800 MHz memory modules
4. Support for non-ECC memory modules
5. Support for Extreme Memory Profile (XMP) memory modules

* To reach DDR3 2200 MHz and above, you are required to use with Intel Core i7/Core i5 CPU without HD Graphics and install a discrete graphics card.
When using Intel Core i5/Core i3/ Pentium CPU with HD Graphics, the maximum memory speed supported is 1666 MHz
* Please refer "Memory Support List" for more information.

Onboard Graphics

Integrated in the Chipset:

1. 1 x D-Sub port (Note 2)
2. 1 x DVI-D port (Note 2) (Note 3) (Note 4)
3. 1 x HDMI port(Note 2) (Note 4)
4. 1 x DisplayPort (Note 2) (Note 4)

Audio

1. Realtek ALC889 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF In/Out
5. Support for CD In

LAN

1. 1 x RTL8111D chip (10/100/1000 Mbit)

Expansion Slots

1. *1 x PCI Express x16 slot, running at x16 (PCIEX16) (Note 5)
   (The PCIEX16 slot conforms to PCI Express 2.0 standard.)
2. *1 x PCI Express x16 slot, running at x4 (PCIEX4) (Note 6)
3. 2 x PCI slots

Multi-Graphics Technology

1. Support for ATI CrossFireX™ technology(Note 6)

Storage Interface

Chipset:

1. 5 x SATA 3Gb/s connectors supporting up to 5 SATA 3Gb/s devices
2. 1 x eSATA 3Gb/s connector on the back panel supporting up to 1 SATA 3Gb/s device

JMicron JMB368 chip:

1. 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices

iTE IT8720 chip:

1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB

1. Integrated in the Chipset
2. Up to 12 USB 2.0/1.1 ports (6 on the back panel, 6 via the USB brackets con- nected to the internal USB headers)

IEEE 1394

1. T.I. TSB43AB23 chip
2. Up to 2 IEEE 1394a ports (1 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)

Internal I/O Connectors

1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 1 x floppy disk drive connector
4. 1 x IDE connector
5. 5 x SATA 3Gb/s connectors
6. 1 x CPU fan header
7. 1 x system fan headers
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x CD In connector
11. 1 x S/PDIF In header
12. 1 x S/PDIF Out header
13. 3 x USB 2.0/1.1 headers
14. 1 x IEEE 1394a header
15. 1 x serial port header
16. 1 x clearing CMOS jumper

Back Panel Connectors

1. 1 x PS/2 keyboard or PS/2 mouse port
2. 1 x D-Sub port (Note 2)
3. 1 x DVI-D port (Note 2) (Note 3) (Note 4)
4. 1 x HDMI port (Note 2) (Note 4)
5. 1 x DisplayPort(Note 2)(Note 4)
6. 1 x IEEE 1394a port
7. 1 x optical S/PDIF Out connector
8. 6 x USB 2.0/1.1 ports
9. 1 x eSATA 3Gb/s connector
10. 1 x RJ-45 port
11. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/ Side Speaker Out/Line In/Line Out/Microphone)

I/O Controller

1. iTE IT8720 chip

H/W Monitoring

1. System voltage detection
2. CPU/System temperature detection
3. CPU/System/Power fan speed detection
4. CPU overheating warning
5. CPU/System/Power fan fail warning
6. CPU/System fan speed control (Note 7)

BIOS

1. 2 x 64 Mbit flash
2. Use of licensed AWARD BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features

1. Support for @BIOS
2. Support for Q-Flash
3. Support for Xpress BIOS Rescue
4. Support for Download Center
5. Support for Xpress Install
6. Support for Xpress Recovery2
7. Support for EasyTune
8. Support for Dynamic Energy Saver™ 2
9. Support for Smart 6™
10. Support for Auto Green
11. Support for Q-Share

Form Factor

1. MicroATX Form Factor; 24.4cm x 23cm

Remark

1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

Note

(Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) To use the onboard D-Sub, DVI-D, HDMI, and DisplayPort ports, you must install an Intel CPU with integrated graphics.
(Note 3) The DVI-D port does not support D-Sub connection by adapter.
(Note 4) You can use only one of the onboard digital graphics ports (e.g. DisplayPort, HDMI, and DVI-D) for output when in the BIOS Setup program or when during the POST screens.
(Note 5) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(Note 6) The PCIEX16 slot operates at up to x4 mode when ATI CrossFireX™ is enabled.
(Note 7) Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
(Note 8) Available functions in EasyTune may differ by motherboard model.
