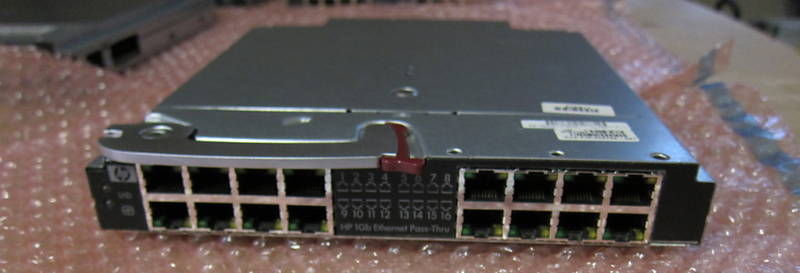

HP 1GB Etherner Pass-Thru Module 406740-B21 for c Class Blade System C7000
Dear customer,
When there might be a difference between the automatic generated specifications by the system, and the hand written/typed description, then please be aware that the only correct description is what's written by our selves here in the description.
Specifications above might be slightly different.
Thanks for your understanding.
HP 1GB Etherner Pass-Thru Module 406740-B21 forC Class Blade System C7000
The HP 1Gb Ethernet Pass-Thru Module for c-Class BladeSystem is designed for those customers desiring an unmanaged direct connection between each server blade within the enclosure and an external network device such as a switch, router or hub. Ideal for datacenters with existing network infrastructure, the HP 1Gb Ethernet Pass-Thru Module delivers sixteen internal 1Gb downlinks and sixteen external 1Gb RJ-45 copper uplinks, providing a 1:1 non-switched, non-blocking path between the server and the network. Designed to fit into a single I/O bay of the c-Class enclosure, the Ethernet Pass-Thru Module should be installed in pairs to provide redundant uplink paths to your network.What's newIntroducing the HP 1Gb Ethernet Pass-Thru Module for c-Class BladeSystem. Data center managers requiring a direct 1Gb copper link from each server blade to the network will find this an excellent solution.Performance
- Full Duplex 1G Ethernet only.
- Sixteen RJ-45 ports in a single bay form factor.
- 1:1 non blocking architecture.
- Wire speed
Management
- No need for LAN management inside the enclosure.
- Power, temperature and status can be monitored by the Onboard Administrator.
- I2C communications support for iLO.
If something is not on the picture it's not included unless stated otherwise.
