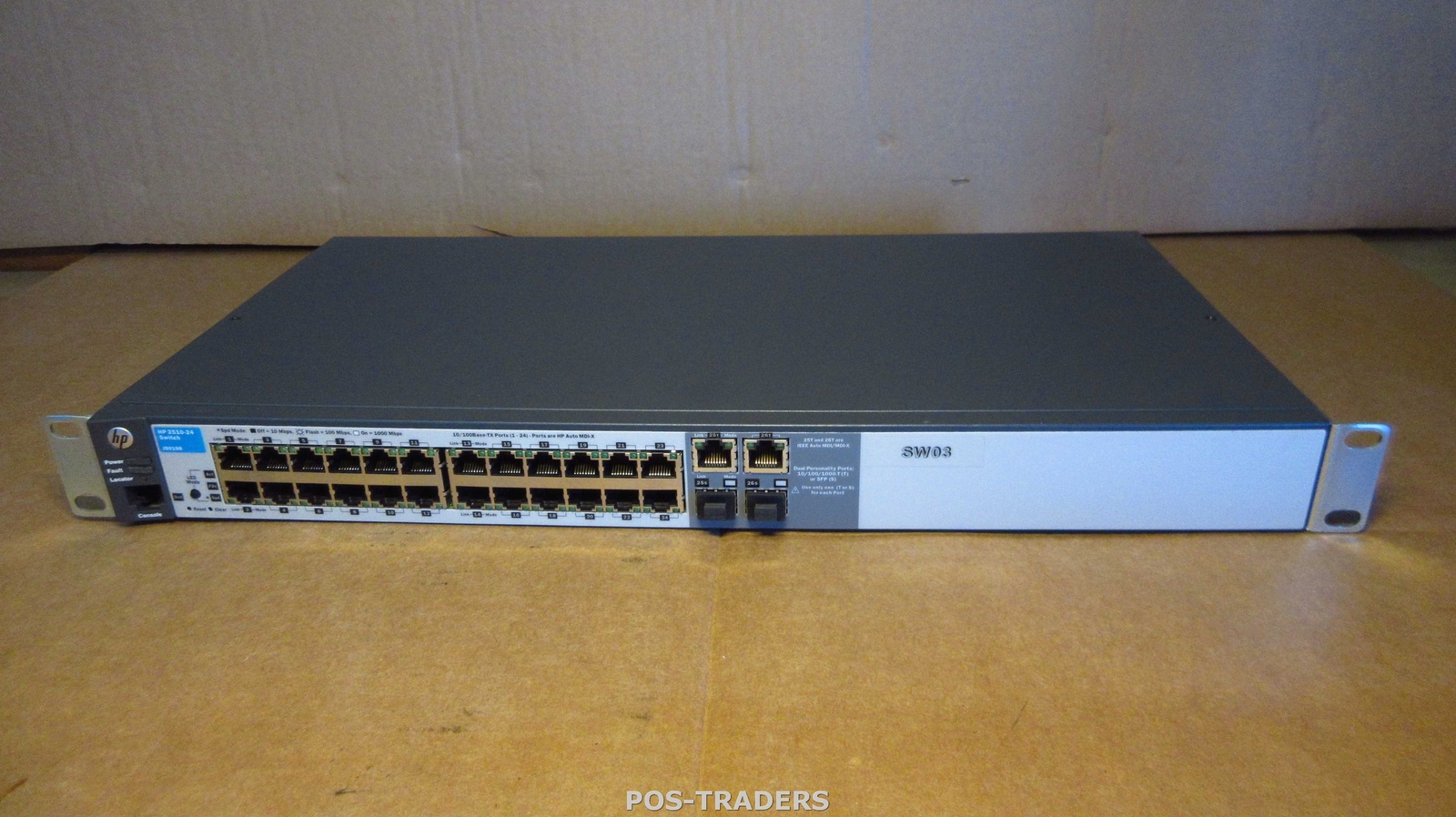

HP J9019B ProCurve 2510-24 Network Switch 24-Port 10/100 + 2x SFP + RACK EARS For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
24 RJ-45 auto-sensing 10/100 ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX)
Media Type: Auto-MDIX
Duplex: half or full
2 dual-personality ports: each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T; IEEE 802.3u Type 100Base-TX; IEEE 802.3ab 1000Base-T Gigabit Ethernet) or an open mini-GBIC slot (for use with mini-GBIC transceivers)
1 RJ-45 serial console port
Physical Characteristics
Dimensions: 9.3(d) x 17.42(w) x 1.73(h) in. (23.62 x 44.25 x 4.39 cm) (1U height)
Weight: 4.89 lb. (2.22 kg), Fully loaded
Memory and Processor
MIPS 32 @ 264 MHz
8 MB flash
64 MB SDRAM
Packet buffer size: 384 KB
Mounting
Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); horizontal surface mounting only
Performance
100 Mb Latency: < 4.9 µs (64-byte packets)
1000 Mb Latency: < 2.6 µs (64-byte packets)
Throughput: up to 6.5 million pps (64-byte packets)
Switching capacity: 8.8 Gbps
MAC address table size: 8,000 entries
Environment
Operating temperature: 32ºF to 113ºF (0ºC to 45ºC)
Operating relative humidity: 15% to 95% @ 104ºF (40ºC), non-condensing
Non-operating/Storage temperature: -40ºF to 158ºF (-40ºC to 70ºC)
Non-operating/Storage relative humidity: 15% to 95% @ 149ºF (65ºC), non-condensing
Altitude: up to 10,000 ft. (3 km)
Acoustic: Power: 0 dB no fan
Electrical Characteristics
Maximum heat dissipation: 68 BTU/hr (71.74 kJ/hr)
Voltage: 100-127 / 200-240 VAC
Current: 0.7 / 0.4 A
Power consumption: 20W
Frequency: 50 / 60 Hz
Notes: Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Comes as shown on picture, if something is not on the picture it's not included unless stated otherwise
