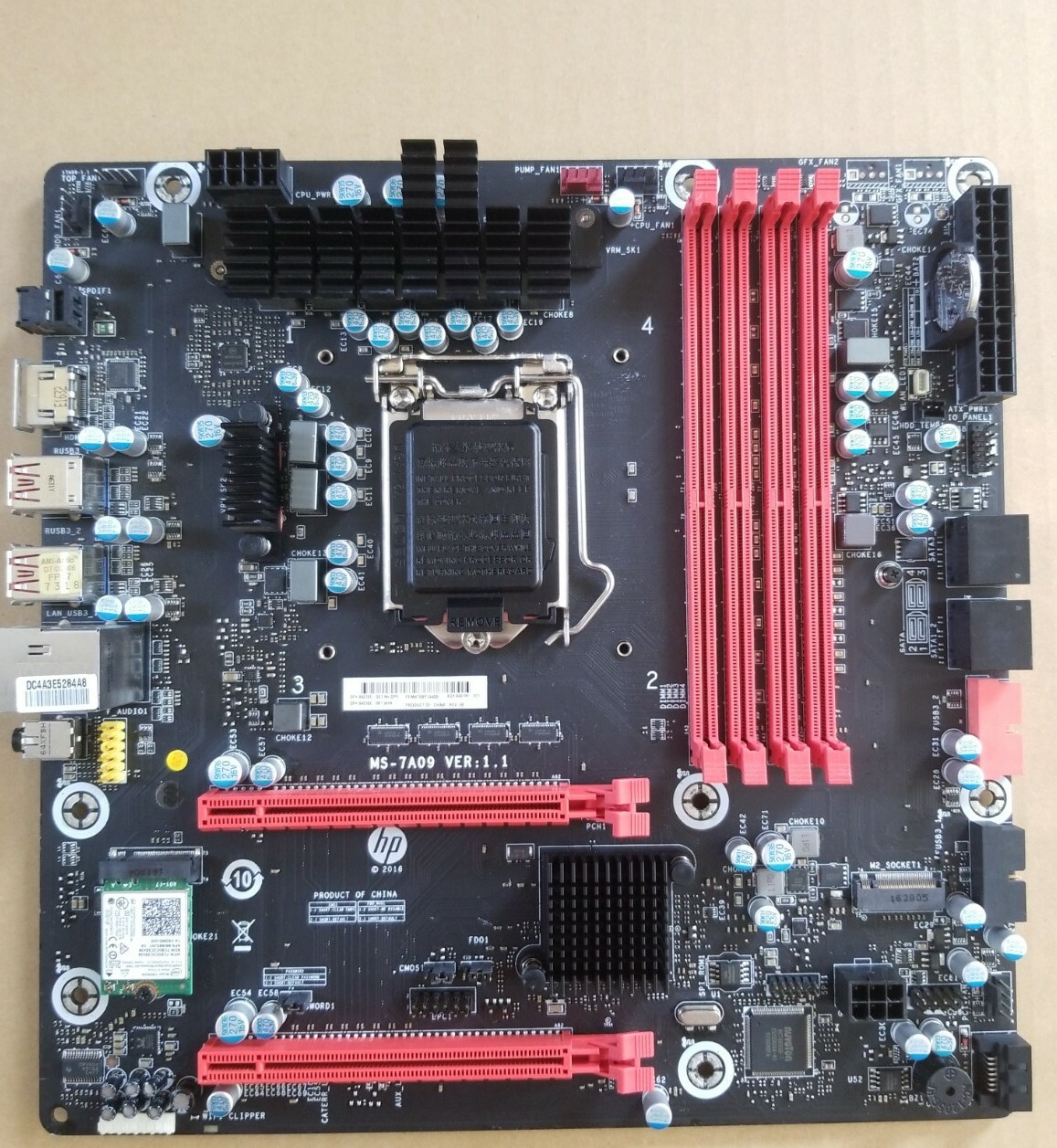

Figure: The Munich-S motherboardMotherboard description

• HP name: Munich-S
• SSID: 81B6

Form Factor

• uATX
• Dimensions: 24x24 cm (9.4x9.4 in)

Chipset

• Z170

Processor upgrade information

• TDP: Up to 91 W
• Socket type: LGA 1151
• Motherboard supports the following processor upgrades:ProcessorTDPIntegrated GraphicsIntel Core i7-6700K (Skylake) 4.0 GHz Quad Core91 WIntel HD Graphics (GT2)Intel Core i7-6700 (Skylake) 3.4 GHz Quad Core65 WIntel HD Graphics (GT2)Intel Core i3-6600K (Skylake) 3.5 GHz Quad Core91 WIntel HD Graphics (GT2)Intel Core i5-6400 (Skylake) 2.7 GHz Quad Core65 WIntel HD Graphics 530

Memory upgrade information

• Dual channel (2 DIMMs per channel) memory architecture
• Four DDR4 UDIMM (288-pin) sockets
• Supports PC4-17000 (DDR4-2133)
• Supports 8 GB UDIMMs
• Supports up to 4 GB on 32-bit systemsNOTE:32-bit systems cannot address a full 4.0 GB of memory.
• Supports up to 32 GB (unbuffered) on 64-bit computersNOTE:Maximum memory shown reflects the capability of the hardware and can be limited further in the operating system.

VideoIntegrated graphics

• Integrated Intel HD GraphicsNOTE:Integrated video is not available if a graphics card is installed.

AudioIntegrated audio

• Audio Codec: ALC1150
• Audio jack presence detectionNOTE:An internal speaker is not included with integrated audio. External speakers or headphones are required to hear sound.NOTE:Integrated audio is not available if a sound card is installed.

NetworkLAN: 1000BASE-T

• Technology: Realtek RTL8161
• Data transfer speeds: up to 10/100/1000 Mb/s
• Transmission standards: 1000BASE-T Ethernet

Expansion Slots

• Two PCI Express x16 (Gen 3.0)
• One M.2 socket 1, key A
• One M.2 socket 3, key M

I/O Ports and JumpersBack I/O portsNOTE:The configuration might vary depending on your model.JumpersFigure: Clear CMOS and clear password jumpers in the default positions
