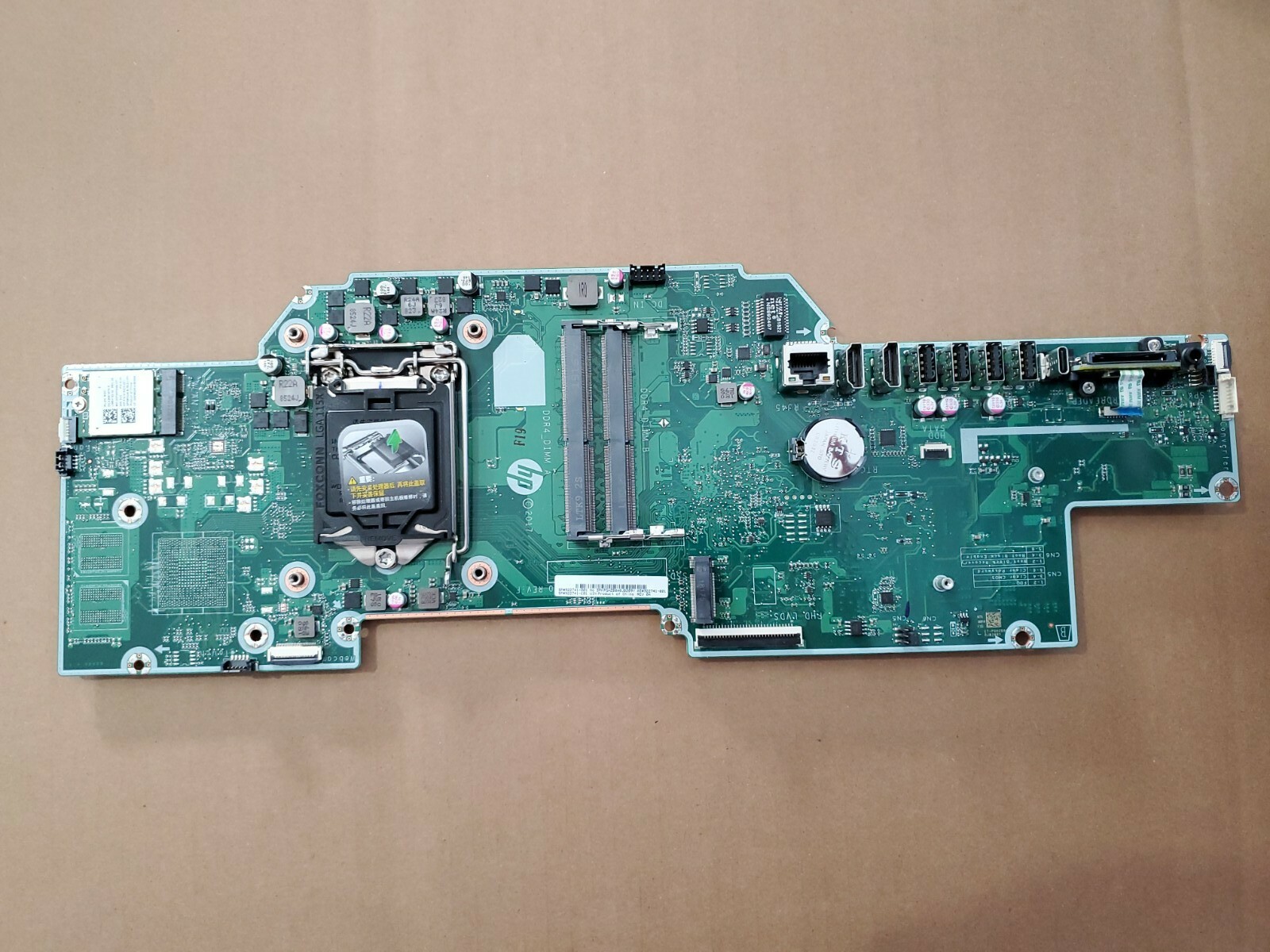

HP PAVILION AIO 24-X 24-X011 Kazon-UF INTEL MOTHERBOARD 922741-601 922741-001 For Sale
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
HP PAVILION AIO 24-X 24-X011 Kazon-UF INTEL MOTHERBOARD 922741-601 922741-001
Price: US $129.99
Compatible WithHP PAV 24-X009 AIO PC US/CANHP PAV 24-X010 AIO PC USHP PAV 24-X011 AIO PC USHP PAV 24-X012DS AIO PC USHP PAV 24-X015Z AIO PC USHP PAV 24-X016 AIO PC USHP PAV 24-X020 AIO PC USHP PAV 24-X021 AIO PC USHP PAV 24-X025XT AIO PC USHP PAV 24-X026 AIO PC USHP PAV 24-X030 AIO PC USHP PAV 24-X035QE AIO PC USHP PAV 24-X037C AIO PC USHP Pav 24-x001ni AiO PC SAHP Pav 24-x001nl DT PC ITLHP Pav 24-x001ur DT PC RUSSHP Pav 24-x002no AiO PC NRLHP Pav 24-x002ur DT PC RUSSHP Pav 24-x003ni DT PC SAHP Pav 24-x003nl AiO PC ITLHP Pav 24-x003ur DT PC RUSSHP Pav 24-x004ur DT PC RUSSHP Pav 24-x005na DT PC UKHP Pav 24-x005no DT PC NRLHP Pav 24-x005ur DT PC RUSSHP Pav 24-x006ur DT PC RUSSHP Pav 24-x007na DT PC UKHP Pav 24-x007ur DT PC RUSSHP Pav 24-x008ur DT PC RUSSHP Pav 24-x009ur DT PC RUSSHP Pav 24-x010kr AiO PC KORHP Pav 24-x010ur DT PC RUSSHP Pav 24-x011kr AiO PC KORHP Pav 24-x012np DT PC PORTHP Pav 24-x013kr AiO PC KORHP Pav 24-x014jp AiO PC JPN2HP Pav 24-x015jp AiO PC JPN2HP Pav 24-x016d AiO PC SINGHP Pav 24-x017d AiO PC SINGHP Pav 24-x019d AiO PC SINGHP Pav 24-x019nl AiO PC ITLHP Pav 24-x020kr AiO PC KORHP Pav 24-x030nz AiO PC SWIS2HP Pav 24-x030ur DT PC RUSSHP Pav 24-x040nf AiO PC FRHP Pav 24-x042nf AiO PC FRHP Pav 24-x049ns AiO PC SPHP Pav 24-x050ng DT PC GRHP Pav 24-x050no DT PC NRLHP Pav 24-x050ns DT PC SPHP Pav 24-x050ur DT PC RUSSHP Pav 24-x051nf DT PC FRHP Pav 24-x051ng DT PC SWIS2HP Pav 24-x051ns AiO PC SPHP Pav 24-x051ur DT PC RUSSHP Pav 24-x052nf DT PC FRHP Pav 24-x053nf AiO PC FRHP Pav 24-x053ng DT PC GRHP Pav 24-x054nf AiO PC FRHP Pav 24-x054ns DT PC SPHP Pav 24-x055ng DT PC GRHP Pav 24-x057ns DT PC SPHP Pav 24-x058ns DT PC SPHP Pav 24-x059ns AiO PC SPHP Pav 24-x061nd DT PC NLHP Pav 24-x070na AiO PC UKHP Pav 24-x070nf DT PC FRHP Pav 24-x070ur DT PC RUSSHP Pav 24-x071nf DT PC FRHP Pav 24-x082ns AiO PC SPHP Pav 24-x083ns AiO PC SPHP Pav 24-x090nz AiO PC SWIS2HP Desktop PCs - Motherboard Specifications, Kazon-UFFigure: Kazon-UF motherboard top viewMotherboard description
HP name: Kazon-UF
SSID: 838C
Form Factor
Customized: 39.5x13.3 cm (15.6x5.2 in)
Chipset
H270
Processor upgrade information
TDP: 35 W
Socket type: LGA 1151
Motherboard supports the following processor upgrades:ProcessorTDPIntegrated GraphicsIntel Core i7-7700T (Kabylake) 2.9 GHz Quad Core35 WIntel HD Graphics 630Intel Core i5-7400T (Kabylake) 2.4 GHz Quad Core35 WIntel HD Graphics 630Intel Core i3-7100T (Kabylake) 3.4 GHz Dual Core35 WIntel HD Graphics 630Intel Pentium G4560T (Kabylake) 2.9 GHz Dual Core35 WIntel HD Graphics 610
Memory uprade information
Dual channel memory architecture
Two DDR4 SODIMM (260-pin) sockets
Supports up to PC4-19200 (DDR4-2400)
Supports 2 GB, 4 GB, and 8 GB DDR4 SODIMMs
Supports up to 4 GB on 32-bit systemsNOTE:32-bit systems cannot address a full 4.0 GB of memory.
Supports up to 16 GB (unbuffered) on 64-bit systemsNOTE:Maximum memory shown reflects the capability of the hardware and can be limited further in the operating system.
