Used HP Smart Array P212 / 013218-001 HP Smart Array P212 512MB Cache · 6Gb/s SAS / SATA RAID Controller · PCIe x8

HP Smart Array P212 RAID controller with a 512MB cache module and full-height bracket. Internal and external SAS connectivity provides flexible storage connections for compatible server systems.

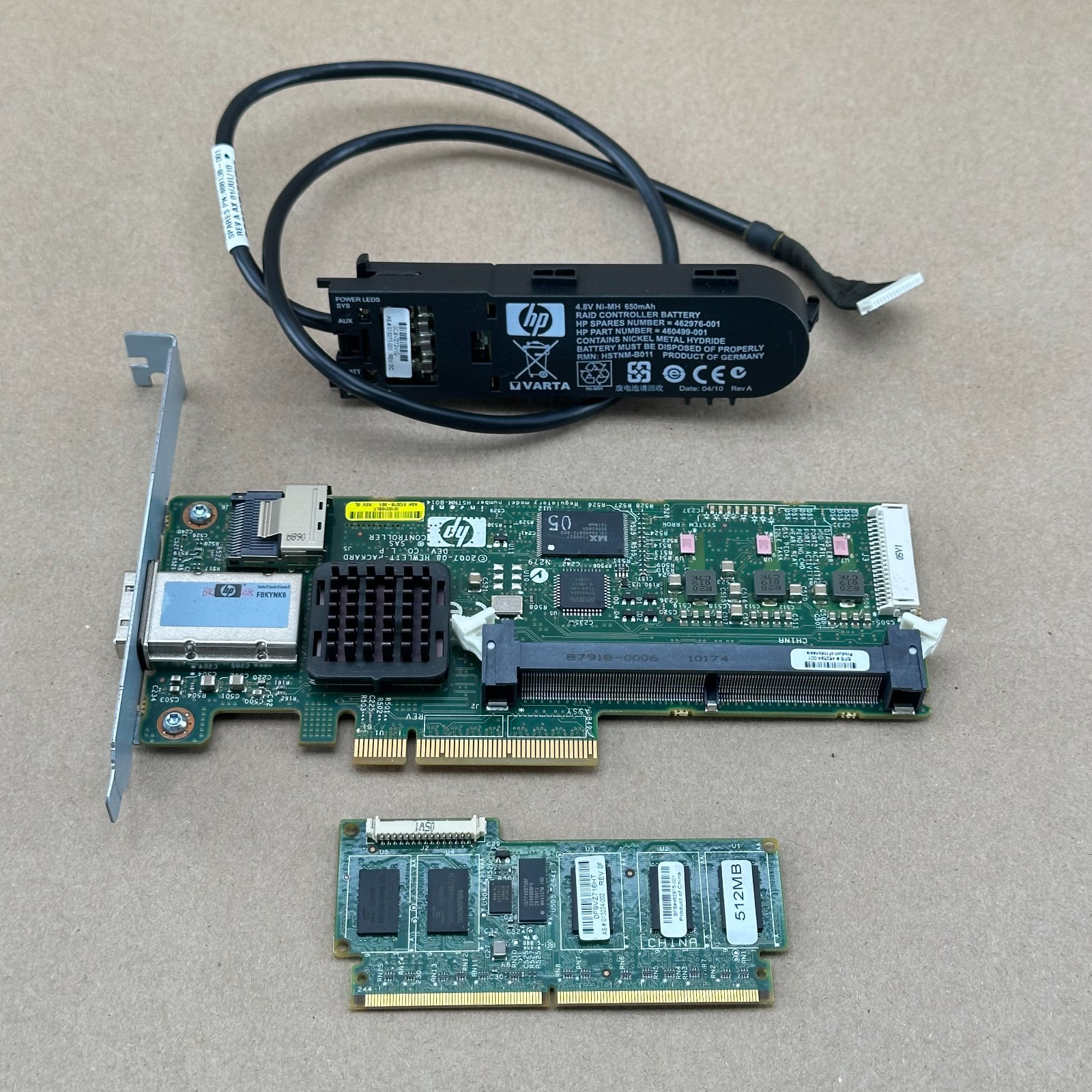

Controller, 512MB cache, battery pack and cable in one set. Controller and cache were pulled from working equipment; they have not been separately tested.

Condition

Used, with normal cosmetic wear. Controller and cache were pulled from working equipment and have not been separately tested after removal.

Specifications Brand / modelHP Smart Array P212 Controller assembly013218-001 Controller spare462594-001 Host interfacePCI Express 2.0 x8 Drive interfacesSAS up to 6Gb/s; SATA up to 3Gb/s SAS connections1 internal x4 Mini-SAS + 1 external x4 Mini-SAS; 8 physical links Cache included512MB DDR2-800 Cache assembly / spare013224-002 / 462975-001 BracketFull-height bracket installed Battery part / spare460499-001 / 462976-001 Battery rating4.8V, 650mAh, Ni-MH; suspected faulty Included

1 × HP Smart Array P212 controller with full-height bracket
1 × HP 512MB cache module
1 × HP battery pack, old so it may not work
1 × Battery-to-cache cable

Applications / Solutions

Server maintenance: Replace a P212 controller in a compatible existing system.Storage connectivity: Connect internal drive backplanes and supported external SAS storage.Lab builds: Explore Smart Array storage configuration with compatible server hardware.
