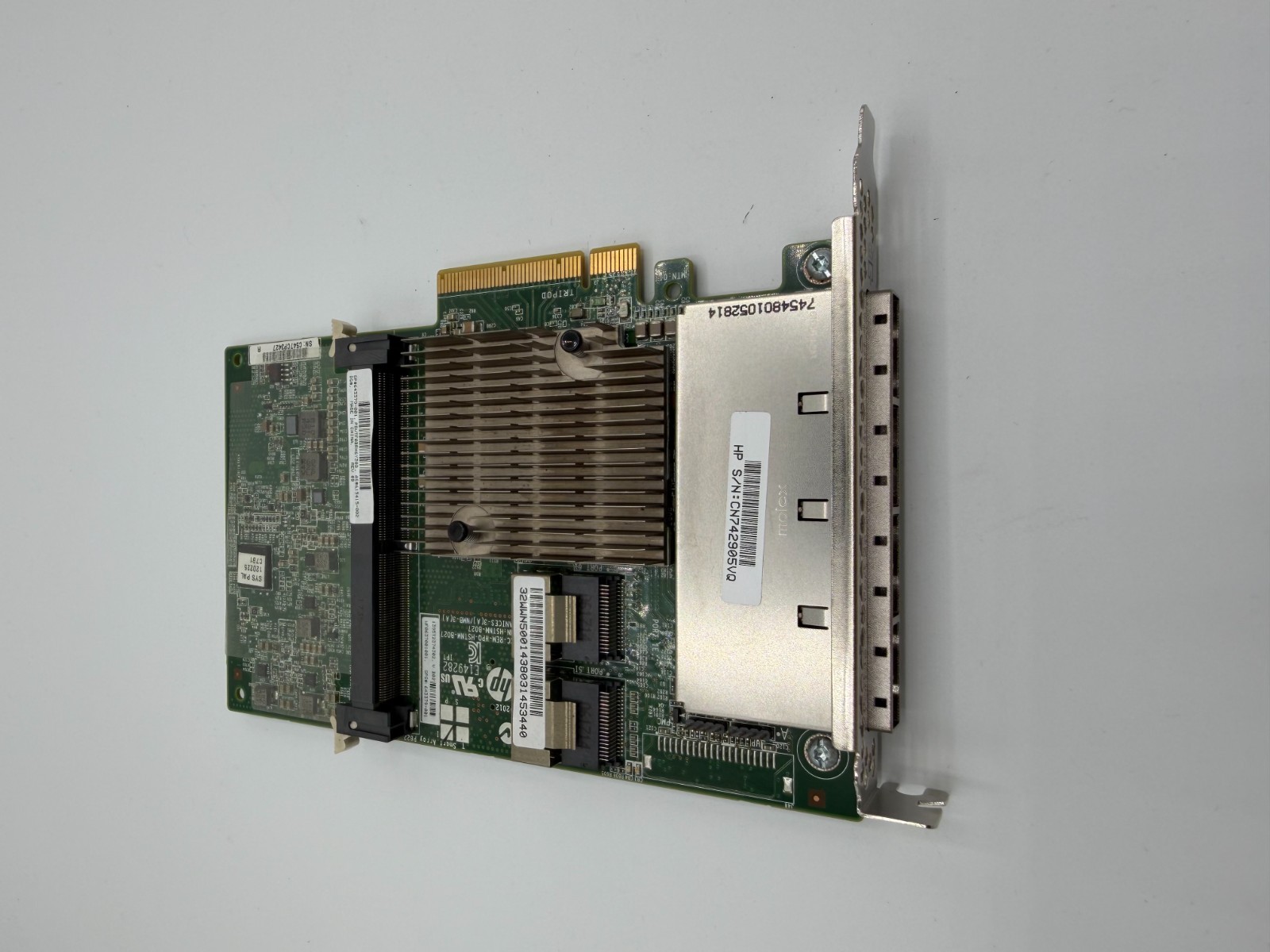

HP Smart Array P822 SAS RAID controller - full-height PCIe controller with four external mini-SAS ports and two internal ports. Board only, no cache module. Removed from service, fully tested and working.
Identification read from the card's own labels:
- Assembly number: 615415-002
- Spare part number: 643379-001
- Regulatory model: HSTNM-B027
- Serial number: C547CP3427
- Interface: PCI Express 3.0 x8
- Ports: 4 external mini-SAS plus 2 internal (marked PORT 5I and PORT 6I), 6Gb/s SAS and SATA
- Bracket fitted: full height
What is included: the one controller board shown in the photos, and nothing else.
What is not included: this is important - there is no FBWC cache module and no capacitor pack or battery. The cache slot on the board is empty. Also not included: SAS cables, low-profile bracket, drivers, documentation, or any server. Without a cache module the controller cannot run write-back caching.
Condition and defects: cosmetically clean with light handling marks. All six SAS ports and the gold-finger edge connector are undamaged and the bracket is straight. Please review all photos - they are of the actual card you will receive.
Testing status: tested and working. The controller was installed in a server, detected by the host, initialised normally and saw attached drives. It is sold in working order.
Shipping: ships from Fort Worth, Texas, in an anti-static bag with protective padding.
