** OPEN BOX / UNUSED** FREE SHIPPING
HP USB-C 100W G6 Docking Station
OVERVIEW
HP's current-generation business docking station. One USB-C cableconnects your laptop to up to three displays, 2.5 Gigabit Ethernet,and five USB ports while delivering up to 100W of charging power.
Uses HP's native USB-C model. It is not a DisplayLink dock, sothere are no video compression drivers to install and no softwarelayer between your laptop and your monitors. Video runs overDisplayPort Alt Mode directly.PORTS AND CONNECTIONS
Host connection: • USB-C cable, 10 Gbps, with up to 100W Power Delivery
Video outputs: • 2x DisplayPort 1.4 • 1x HDMI 2.1
Network: • 1x RJ-45, 2.5 Gigabit Ethernet (2.5GbE)
USB downstream: • 2x USB-C 3.2 Gen 2 (10 Gbps) with data and 15W power out • 1x USB-A 3.2 Gen 2 (10 Gbps) charging port • 2x USB-A 3.2 Gen 1 (5 Gbps) charging ports
Other: • Mechanical power button with RGB LED status indicator • Nano security lock slot • DC barrel power inputDISPLAY SUPPORT
Up to three external displays. Actual resolution depends on yourlaptop's USB-C video bandwidth and Display Stream Compression support:
• 1 display: up to 4K (3840x2160) @ 120Hz • 2 displays: up to dual 4K @ 120Hz • 3 displays: up to triple 4K @ 60Hz
High-resolution hosts with DisplayPort 1.4 and DSC hit the numbersabove. Lower-bandwidth hosts fall back to combinations such as dualQHD @ 120Hz or triple FHD @ 120Hz. Your laptop must supportDisplayPort Alt Mode over USB-C for external video to work at all.POWER
• Up to 100W Power Delivery to the host laptop (PD 3.1) • 120W power adapter included • Input: 19.5V, 6.15A • PD profiles: 5V/3A, 9V/3A, 12V/5A, 15V/5A, 20V/5A • 15W accessory power on each downstream USB-C portBUSINESS AND MANAGEMENT FEATURES
• HP Wolf Security with HP Sure Start firmware protection • HP Quick Connect (wakes the workspace on approach) • Wake-on-LAN from S4/S5, warm and cold dock • MAC address pass-through • Disconnected firmware updates • Cloud management and telemetry via Poly Lens • Power consumption monitoring module • Serviceable design with replaceable components
HP Quick Connect, Wake-on-LAN, MAC address pass-through, andpower button behavior are built around supported HP notebooks. Onnon-HP hardware the dock functions as a standard USB-C dock.COMPATIBILITY
Works with most laptops that support DisplayPort Alt Mode,Thunderbolt 3 Alt Mode, or USB4 over USB-C. Charging requires hostsupport for USB-C Power Delivery.
Operating systems listed by HP: • Windows 10 22H2 and newer • Windows 11 23H2 and newer • macOS Sonoma 14 and newer • ChromeOS M133 and newer • Ubuntu Linux 22.04 LTS (kernel 5.15) and newerWHAT'S INCLUDED

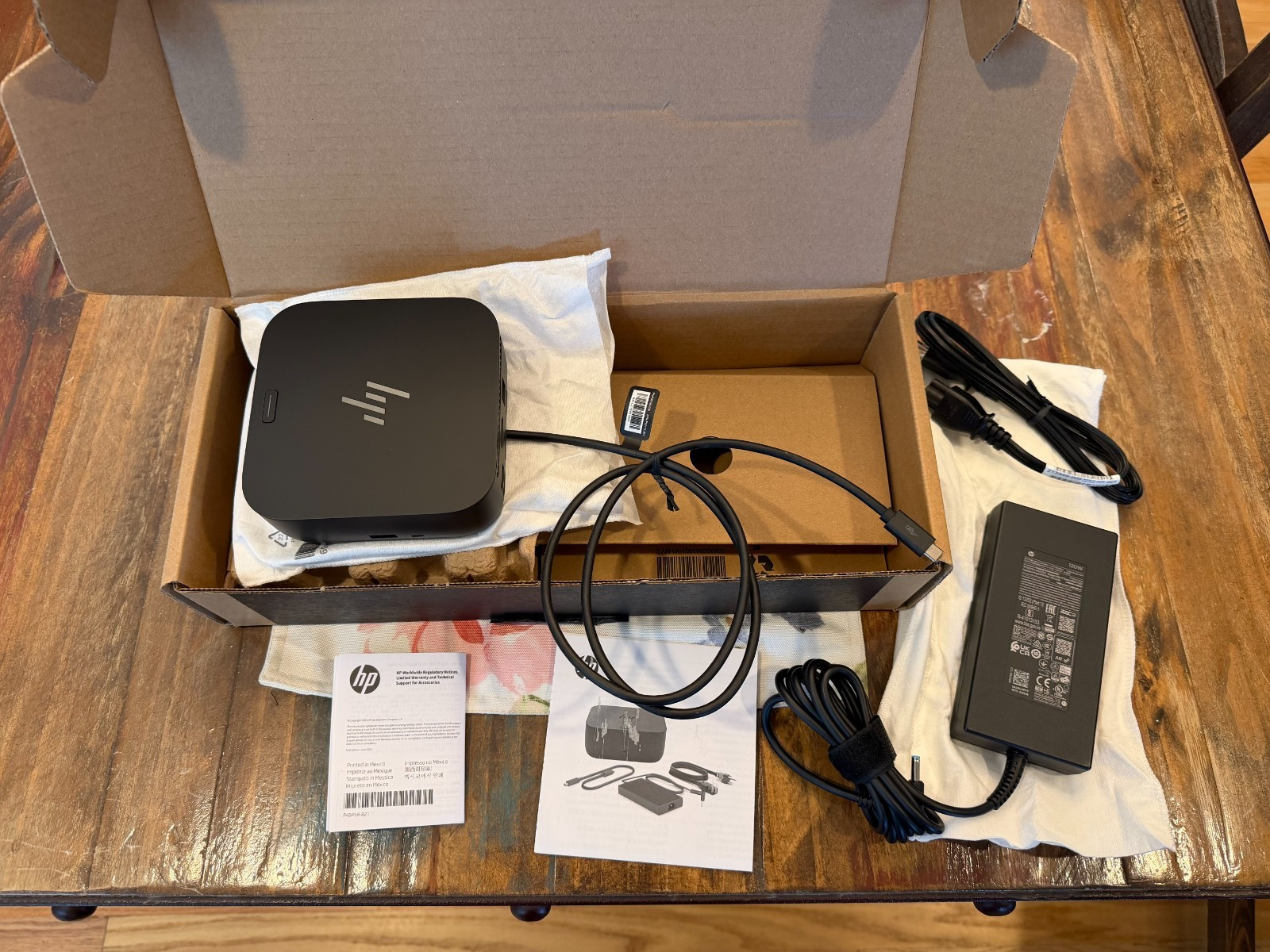

• HP USB-C 100W G6 Dock with attached USB-C host cable • 120W AC power adapter • Power cord • Original documentation
