HPE 1600W FLEX SLOT PLATINUM HOT PLUG LOW HALOGEN POWER SUPPLYSpare P39384-001 - Option Kit P38997-B21 - Regulatory HSTNS-PL62 - 80 PLUS Platinum
STOP - THIS IS A 200-240V UNIT. IT WILL NOT RUN ON 120V.The rating label lists one input range and one only: 200-240V, 50-60Hz, 8.7A. There is no 100-127V range and no derated low-line mode. Plugged into an ordinary US 120V wall outlet this power supply will not come up at all.
To use it you need high-line power - a 208V or 240V rack circuit, an L6-20/L6-30 or C13/C19 PDU fed from 208/240V, or equivalent. This is completely normal in a datacenter or a properly wired rack and completely impossible on a standard household circuit. Please confirm what your rack actually delivers before buying. If you are not sure, tell me what your PDU and wall receptacle look like and I will help you work it out.
WHAT THIS ISThe HPE 1600W Flex Slot Platinum hot-plug power supply, 80 PLUS Platinum rated, hot-pluggable into the Flex Slot bays used across HPE ProLiant Gen10 and Gen10 Plus servers - DL360, DL380, DL560, DL580, ML350 and various Apollo and Synergy configurations. Always check your server's parts list against the numbers below rather than going by chassis model alone.

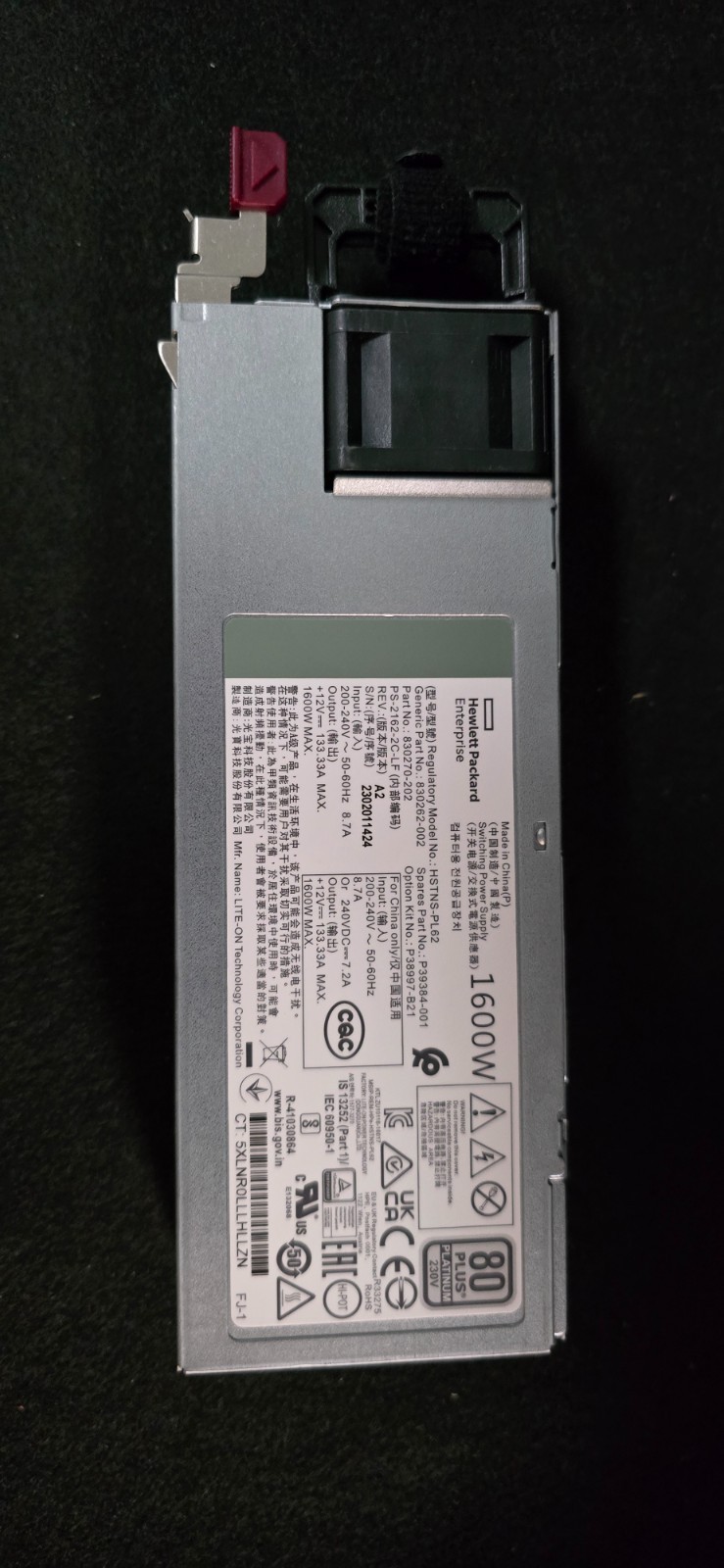

SPECIFICATIONS - read off the unit's own label- Spares Part No.: P39384-001- Option Kit No.: P38997-B21- Generic Part No.: 830262-002- Part No.: 830270-202- Regulatory Model No.: HSTNS-PL62- Internal code: PS-2162-2C-LF, Rev A2- Output: +12V, 133.33A max, 1600W max- Input: 200-240V AC, 50-60Hz, 8.7A (or 240VDC 7.2A)- Efficiency: 80 PLUS Platinum at 230V; the fan label reads 94%- Hot plug, Flex Slot form factor- Manufacturer: LITE-ON Technology Corporation- Made in China
DO NOT MIX WATTAGES IN A REDUNDANT PAIRHPE requires that redundant power supplies in the same chassis be matched - same model and same wattage. Mixing a 1600W with a 750W or 800W unit is not a supported configuration and the server will complain.
This is not theoretical for me. These three came out of service precisely because we ordered 1600W units when the chassis already had 750W supplies, and we needed a matching 750W for the redundant pair. We ran on the 1600W units while we waited for the correct ones to arrive, then swapped them out. So if you are buying one of these to pair with an existing supply, make sure the existing one is also a 1600W Flex Slot unit.
CONDITIONUsed, roughly two weeks of service in a production server, then pulled. Cosmetically and functionally as-new - no scratches, clean gold edge connector, intact latch and handle, no dust in the fan, no burn smell. They were working when removed from a running server. I have not bench-tested them under load since, so they are sold as working-when-pulled rather than tested by me.
QUANTITYThree available. Buy one, two or all three. The listed price is per power supply.
WHAT YOU GETOne power supply per unit purchased, as pictured. No power cord, no blanking panel, no rails and no documentation are included.
SHIPPINGShips from the USA, packed to protect the edge connector.
Questions welcome - particularly about voltage or whether this matches your existing supply. Please ask before buying.
