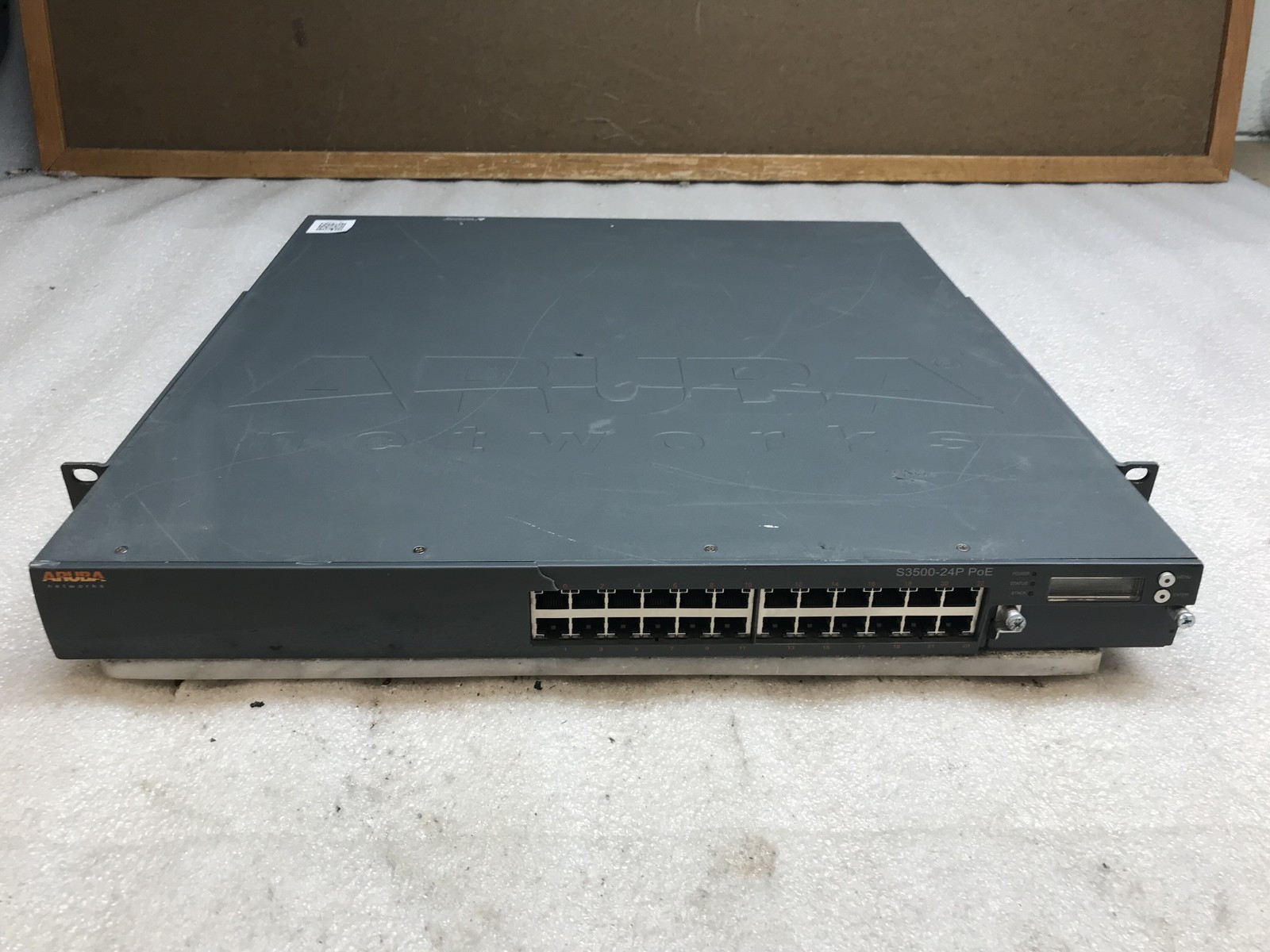

Listing Grid template example Product Photo Description HPE Aruba Networks S3500-24P 24 Port Gigabit Switch PoE+ 400W w/ Rack Ears HPE Aruba Networks S3500-24P 24 Port Gigabit Switch PoE+ 400W w/ Rack Ears

The HPE Aruba Networks S3500-24P is a robust managed switch designed for high-performance networking environments. Featuring 24 Gigabit Ethernet ports with PoE+ support and a 400W power budget, this switch is ideal for powering and connecting multiple devices while ensuring efficient network management and Gigabit Ethernet Ports

PoE+ Support with 400W Power Budget

Managed Switch

Layer 3 Switching

Stackable for Network Expansion

Includes Rack Ears for Mounting

No SFP Ports Available

Key Features

• Advanced Layer 3 Features for Efficient Routing
• High PoE Budget Supports Multiple Power-Hungry Devices
• Stackable Design Enhances Network Scalability
• Comprehensive Management Interface for Easy Configuration
• Robust Build with Rack Mounting Options

Important Notes

• Minor faceplate damage

Included

• Power Cable
• Rack Ears

Not Included

• Network Card Slot: 0
• SC Serial #: AU0003360 (Date: 09/02/11)

SC Model Name: ArubaS3500-24P

• Mgmt Port HW MAC Addr: 00:1a:1e:12:56:c1
• HW MAC Addr: 00:1a:1e:12:56:c0 to 00:1a:1e:12:56:ff
• CPLD Version: Rev: 0.11 (0x0.b)
• PoE Firmware Version: 4.1.5 (Build: 1)
• CPU Assembly #: 2010057E (Rev: 04.00)
• CPU Serial #: AB35058993 (Date: 09/01/11)
• Fantray: Present (Version: 2)
• Power Supply 0: Present (600W)
• : 12V System Voltage Ok
• : 56V PoE Voltage Ok
• Power Supply 0 Serial #: QCS112901LC (Date: 07/21/11)
• Power Supply 0 Model No: 2510056
• Power Supply 0 Vendor Model No: DCJ6002-02P (Rev: 66.0)
• Power Supply 1: Absent
• System Temperature: CPU Temp: 43C
• : DPE Temp: 37C
• : DDR Temp: 33C
• : USB Temp: 27C
• : Uplink Temp: 32C
• : Ambient Temp: 26C
• : Phy1 Temp: 25C
• : Phy2 Temp: 26C
• System Voltages: 3300mV Sense: 3360.0 mV
• : 2500mV Sense: 2464.0 mV
• : 1800mV Sense: 1808.0 mV
• : 1000mV Sense: 1000.0 mV
• : 1000mV MAC: 988.0 mV
• : 1800mV VDD: 1832.0 mV
• : 5000mV 5VDD: 4998.0 mV
• : 5000mV 5VSB: 4974.0 mV
• : 900mV VTT: 916.0 mV
• Fantray Fan Tachometers: FAN 0: 4623RPM (Low Speed)
• : FAN 1: 4655RPM (Low Speed)
• : FAN 2: 5075RPM (Normal Speed)
• : FAN 3: 4639RPM (Low Speed)
• LinecardPower Budget(W)Power Consumption(W)GuardBand(mW)PoE ManagementCisco CompatibilityConfig Card Slot: 0
• SC Serial #: AU0003496 (Date: 09/03/11)

SC Model Name: ArubaS3500-24P

• Mgmt Port HW MAC Addr: 00:1a:1e:12:48:81
• HW MAC Addr: 00:1a:1e:12:48:80 to 00:1a:1e:12:48:bf
• CPLD Version: Rev: 0.11 (0x0.b)
• PoE Firmware Version: 4.1.5 (Build: 1)
• CPU Assembly #: 2010057E (Rev: 04.00)
• CPU Serial #: AB35058786 (Date: 09/01/11)
• Fantray: Present (Version: 1)
• Power Supply 0: Present (600W)
• : 12V System Voltage Ok
• : 56V PoE Voltage Ok
• Power Supply 0 Serial #: QCS112901NL (Date: 07/23/11)
• Power Supply 0 Model No: 2510056
• Power Supply 0 Vendor Model No: DCJ6002-02P (Rev: 66.0)
• Power Supply 1: Absent
• System Temperature: CPU Temp: 43C
• : DPE Temp: 38C
• : DDR Temp: 37C
• : USB Temp: 29C
• : Uplink Temp: 33C
• : Ambient Temp: 25C
• : Phy1 Temp: 26C
• : Phy2 Temp: 28C
• System Voltages: 3300mV Sense: 3376.0 mV
• : 2500mV Sense: 2464.0 mV
• : 1800mV Sense: 1808.0 mV
• : 1000mV Sense: 998.0 mV
• : 1000mV MAC: 984.0 mV
• : 1800mV VDD: 1840.0 mV
• : 5000mV 5VDD: 4998.0 mV
• : 5000mV 5VSB: 4974.0 mV
• : 900mV VTT: 918.0 mV
• Fantray Fan Tachometers: FAN 0: 4500RPM (Low Speed)
• : FAN 1: 4639RPM (Low Speed)
• : FAN 2: 4639RPM (Low Speed)
• : FAN 3: 4591RPM (Low #show poe Budget(W)Power Consumption(W)GuardBand(mW)PoE ManagementCisco CompatibilityConfig Specifications Functional Condition:
  F4 - Hardware Functional

  Equipment in this category has all hardware components tested and verified working properly. There are no missing or damaged components or parts essential to primary functions. Software may not be not loaded or configured.

  Cosmetic Condition:
  C3 - Used Fair

  Moderate scratches or scuffs. Possible small dings or dents. Some discoloration may be present. Hinges may be a little loose.

  Data Sanitization:
  S3 - Data Clear

  Device has been sanitized by one of the following methods: Factory Reset, NIST 800-88 Clear, or DOD 5220.22


  Port Count
  24 Port Speed
  Gigabit Management Type
  Managed Poe Support
  PoE+ Poe Budget
  400 Stackable
  YES Layer
  Layer 3 Sfp Ports
  NO Function Tests Powers On
  Passed Management Interface Access
  Passed Port Connectivity
  Passed PoE Output
  Passed Link Lights
  Passed Factory Reset
