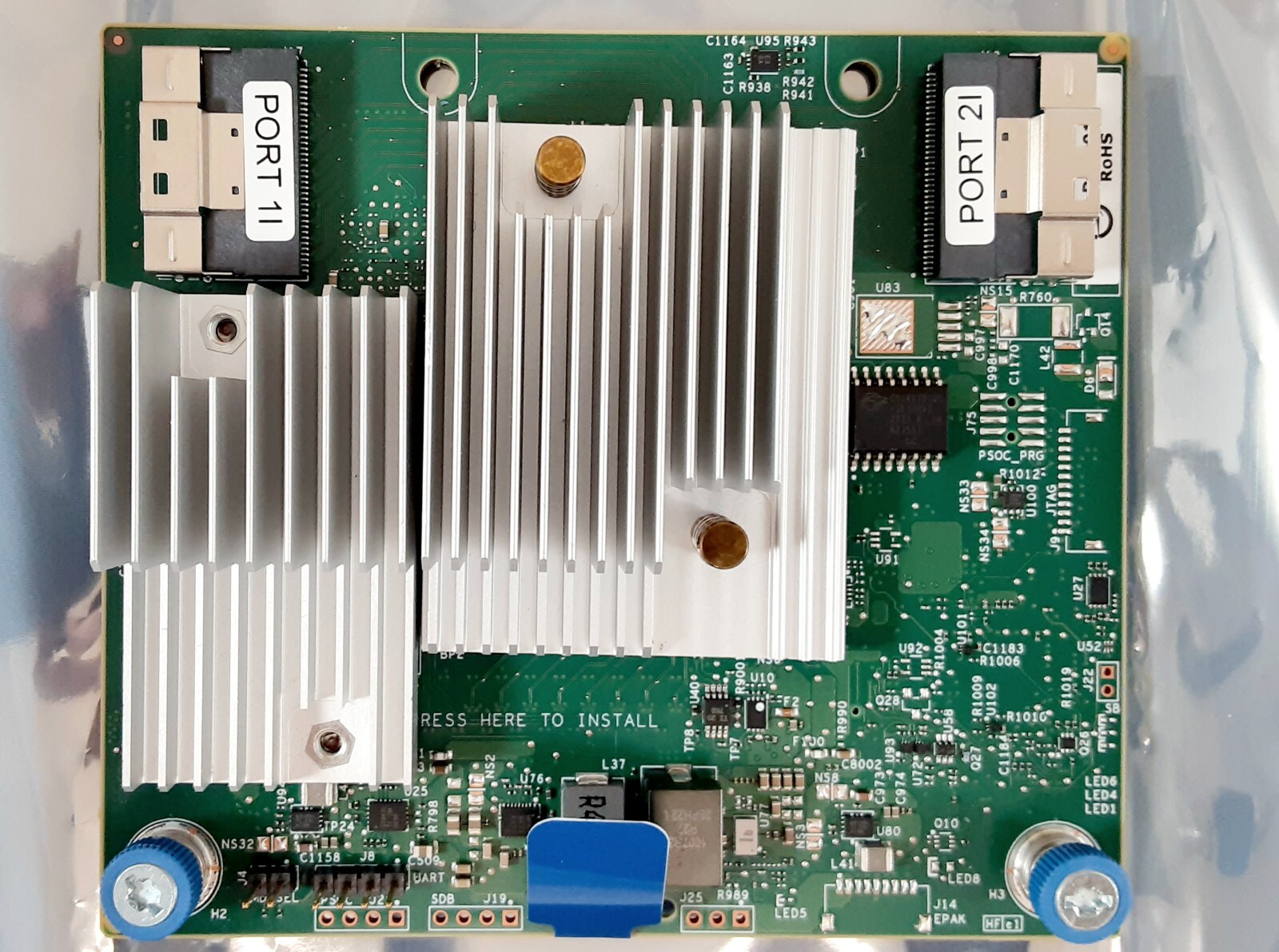

HPE Broadcom MegaRAID MR216i-a SAS Controller
Key Features |Powerful Performance
Broadcom MegaRAID Storage Controllers for HPE Gen10 Plus feature Broadcom MR416i and Broadcom MR216i controllers with impressive performance including up to 13,700 Mbs of bandwidth, 3M random read IOPS, and 240K RAID5 random write IOPS.
2nd Generation Tri-Mode SerDes
Broadcom MegaRAID Storage Controllers for HPE Gen10 Plus is enabled with SerDes for exceptional support of NVMe4/SAS3/SATA protocols.
With Tri-Mode support, achieve the scalability and flexibility you need for shifting business environments.
Enhanced Security
Broadcom MegaRAID Storage Controllers for HPE Gen10 Plus is built with the HPE Silicon Root of Trust for firmware authentication and support for self-encrypting drives to help ensure protection for data at rest and prevention of malware.
Software Supported
Broadcom MegaRAID Storage Controllers for HPE Gen10 Plus support all major OS's including but not limited to Windows, Linux®, and VMware®, full tool suite including command line interface, web-based management, and out-of-band management support.
MemoryCache MemoryNoMiscellaneousPlatform SupportedPCInterfaces/PortsTotal Number of SAS Ports16Number of SAS Ports (Internal)16Physical CharacteristicsWeight (Approximate)4.37 ozForm FactorPlug-in ModuleGeneral InformationProduct TypeSAS ControllerManufacturer Part NumberP26325-B21ManufacturerHewlett Packard EnterpriseProduct ModelMR216i-aProduct NameBroadcom MegaRAID MR216i-a SAS ControllerProduct LineMegaRAIDBrand NameHPETechnical InformationHost InterfacePCI Express 4.0 x16Device SupportedServerRAID Levels1100Controller Type12Gb/s SASRAID SupportedYes
