HPE Smart Array P840 4GB FBWC 12Gb SAS RAID 761880-001 DL360 Gen9 Cable Kit For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

HPE Smart Array P840 4GB FBWC 12Gb SAS RAID 761880-001 DL360 Gen9 Cable Kit

Price: US $79.99

HPE Smart Array P840/4GB FBWC 12Gb SAS RAID Controller — DL360 Gen9 Card with Cable Kit (766205-B21)

Complete original HPE option kit, opened but unused, fully tested and working by us before listing.

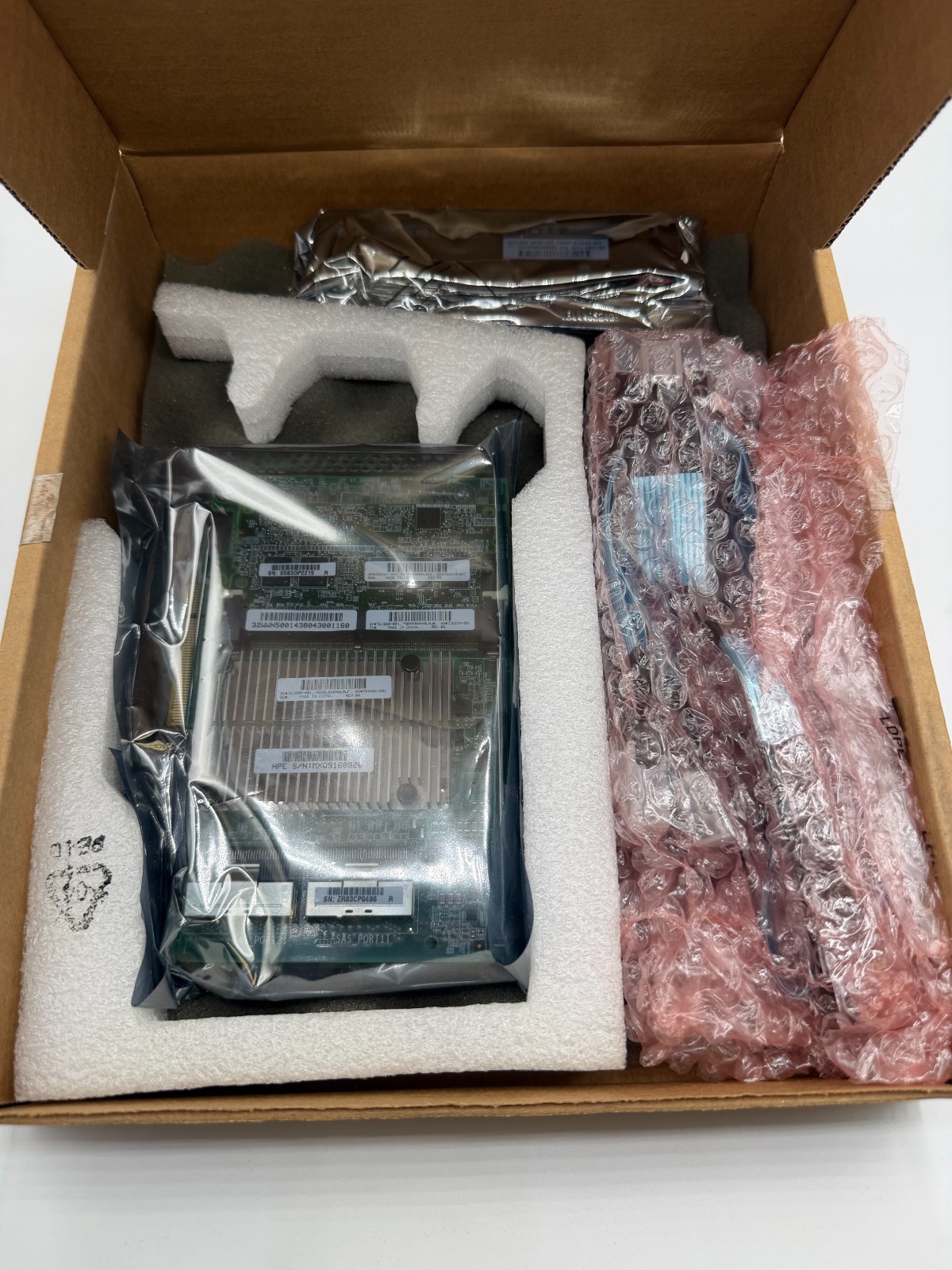

What is included

HPE Smart Array P840 12Gb SAS RAID controller — spare 761880-001, assembly 726899-001 / 784486-001
4GB Flash Backed Write Cache (FBWC) module, HPE 726815-002, fitted to the card
DL360 Gen9 SAS cable kit as shipped inside option 766205-B21
Original HPE retail box — the serial number on the box matches the serial on the board (MXQ8160920)

What is NOT included

HPE Smart Storage Battery / capacitor pack is not included. HPE never shipped one inside this kit. You need one (for example 727258-B21, spare 815983-001) for flash-backed write caching if your server does not already have it.
No drives, no server, no riser, no software and no interface: PCI Express 3.0 x8
Storage interface: 12 Gb/s SAS, 6 Gb/s SATA
Ports: 2 internal x8 ports, 16 physical links, internal only
Cache: 4 GiB DDR3-1866 flash-backed write cache
RAID levels: 0, 1, 10, 5, 50, 6, 60, 10 ADM
Drives: up to 16 direct attached, up to 200 using SAS expanders
Form factor: full height, half length — this is NOT a low profile card

Fitment

This is the DL360 Gen9 specific option. The P840 is a full height card and goes in the primary riser slot of a DL360 Gen9; HPE's own cable matrix directs DL360 Gen9 buyers to this kit because it contains the required cables. The P840 itself is a standard full height PCIe card supported in a range of HPE ProLiant Gen9 servers, but the cables in this kit are the DL360 Gen9 ones. Please confirm compatibility with your own server before buying.

Condition

Open box. Tested and working: installed in a server, detected by the host and initialised normally with the 4GB cache module recognised. Cosmetically clean, the card was still sealed in its anti-static bag, gold-finger edge connector and both internal mini-SAS ports undamaged, bracket straight.

Part numbers

766205-B21 · 761880-001 · 726899-001 · 784486-001 · 726815-002 · 726897-B21 · 761874-B21

Ships free from the United States. Packed to protect the card and its cables.
