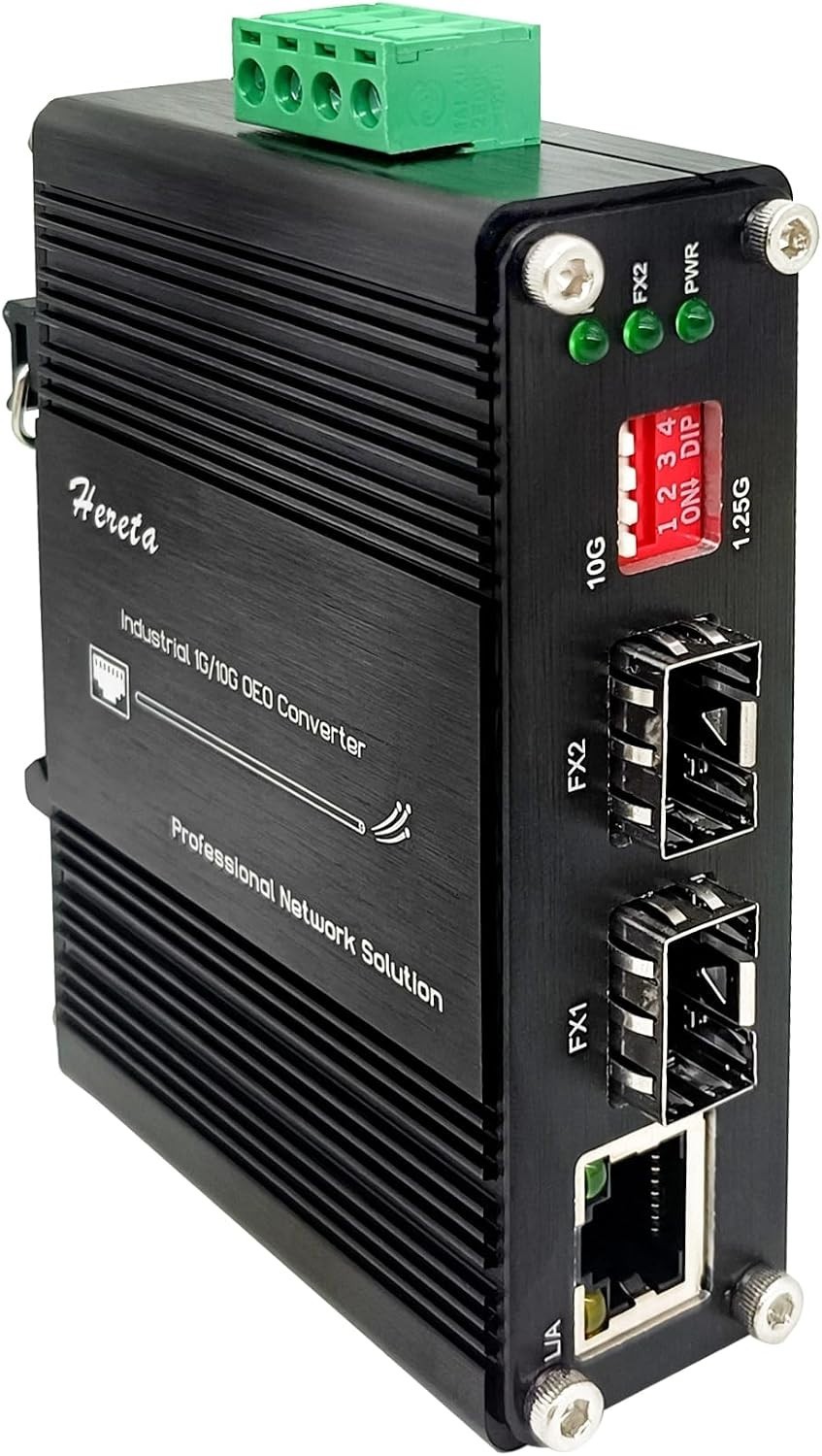

The Hereta ETH-IMC2402-OEO is an industrial 10G OEO (optical-electrical-optical) fiber media converter. It provides two standard open SFP+ slots for FIBER to FIBER connection of 10Gbps equipment, functioning as a fiber media converter or as a fiber repeater for long-distance transmission. It operates in temperatures from -40F to 176F.

The unit includes one RJ45 port. When only the copper and fiber ports are connected, it links FIBER to COPPER 1Gbps Ethernet equipment, functioning as a fiber-to-copper media converter for long-distance transmission up to 120km.

The converter supports OEO 3R functionality (Regeneration, Reshaping, Re-timing) with low latency, is hot-swappable, and has a full status LED display. It supports 1310nm/1550nm/CWDM/DWDM optical wavelengths and DDM function, loop-back, and Jumbo Frame. Fiber data rate switching between 1.25G and 10G is set via DIP button.

The housing is an IP40 aluminum case supporting DIN-rail and wall mounting. It accepts a wide DC12~48V power input, includes a dual redundancy system, and provides 6kV lightning protection. Included components are the industrial 10G fiber media converter, an L-shaped wall mount bracket, and a Quick Start Guide.

Specifications:
Brand: Hereta
Model: ETH-IMC2402-OEO
MPN: ETH-IMC2402-OEO
UPC: 717211074682
Data Transfer Rate: 10 Gbps
Range: up to 120 km
SFP+ Slots: 2 (standard open)
RJ45 Port: 1 (1Gbps Ethernet)
Connector Type: RJ45 + SFP
3R Functions: Regeneration, Reshaping, Re-timing
Optical Wavelengths: 1310nm/1550nm/CWDM/DWDM
Supported Features: DDM, loop-back, Jumbo Frame, hot-swap
Data Rate Switching: 1.25G/10G via DIP button
Operating Temperature: -40F to 176F
Housing: Aluminum, IP40 rated
Mounting: DIN-rail / wall mount
Power Input: DC 12~48V
Redundancy: Dual redundancy system
Lightning Protection: 6kV
Item Dimensions: 3.7 in D x 2.7 in W x 1.2 in H
Item Weight: 8.64 oz
Compatible Devices: IP Camera
Included Components: Industrial 10G Fiber Media Converter, L-shaped wall mount bracket, Quick Start Guide
Warranty: 2 Years
