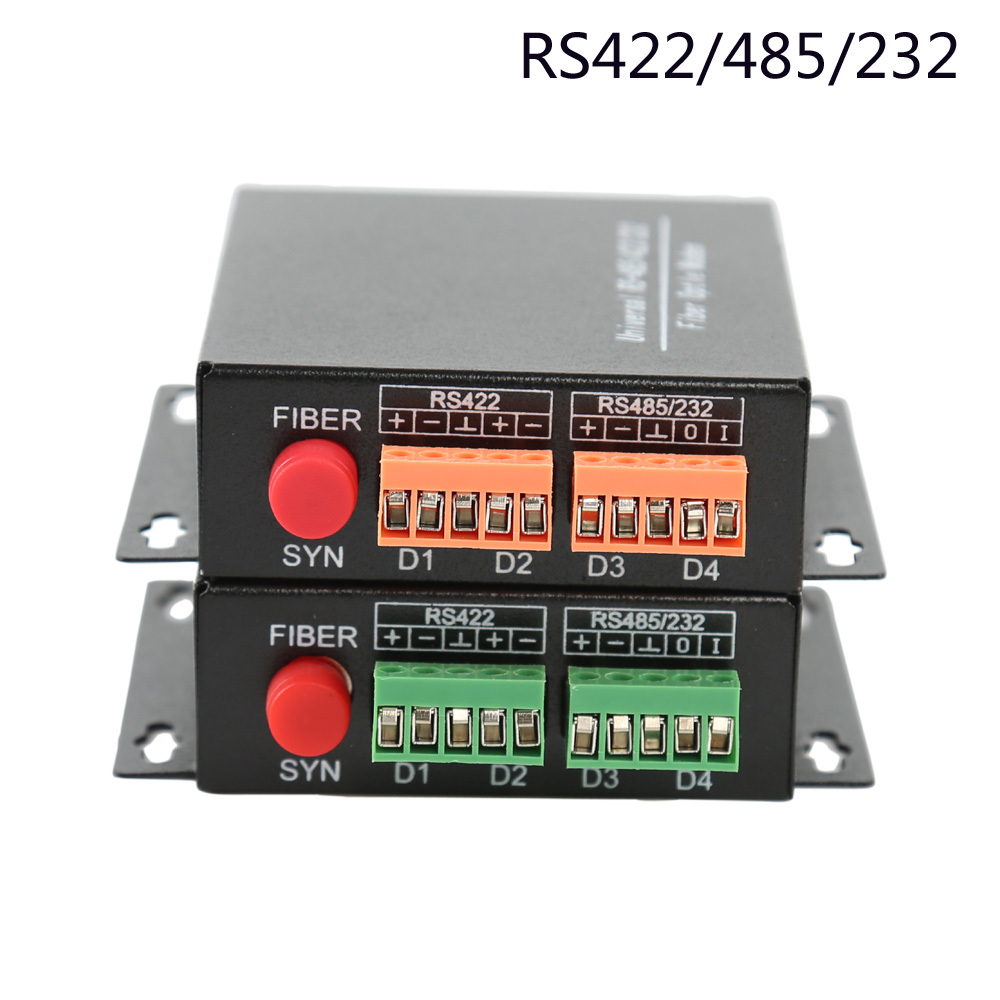

High Quality Bi-directionalRS-485/422/232Data Fiber MediaConverters -1Pair(Transmitter& Receiver)

Don't settle for low cost,generic,poor quality, not quality Transmitter & Receiver !

Default ship singlemode version (0~20Km), Multimode version (0~2Km) can be customzed,contact us if need.

INSSURE EVERY SHIPMENT, WE GUARANTEE, NEXT TIME YOU WILL ORDER MORE.

Product Features:

• It can simultaneously support two-way RS-485 data (half duplex) or one-way RS-422 Data(full duplex)& 232 Data
• Adaptive single multimode fiber
• Zero delay automatic forwarding
• Asynchronous transmission, multipoint use, RS-485/422 interface with fiber optic converter
• Automatically detect the serial port rate, identification and control data transfer direction
• Maximum communication rate> 500Kbp
• 12V1ADC voltage input, external power supply
• FC interface
• Wavelength: 1310nm / 1550nm
• Interface provides 1500W surge protection, 15KV ESD protection
• Multimode communication reaches 0~0.5 km, single-mode reach 20km
• RS-485/422 supports 32-point polling (customizable 128 points)
• Range of applications:industrial automation and control, access control, card, car parks and other systems

Communication Index

• Standards Conform : EIA RS-485, RS-422.
• RS-485 signals : A +, B-, GND
• RS-422 signal: R +, R-, T +, T-, GND
• Fiber optic signal: IN, OUT
• Work type: asynchronously work, point to point
• Direction control :Data flow direction control using automatic control technology, automatic identification and control data transfer direction
• Baud : 0-500Kbps, automatically detects signal rate
• Optical fiber wavelength: 1310nm / 1550nm
• Electrical port transmission distance : RS-485/422 1000 m
• Optical port transmission distance : 0~0.5 km for multimode, single mode up to 20 km
• Interface protection :600W surge protection, 1500V ESD protection
• Load capacity: RS-485/422 port supports 32 nodes (customizable 128 points)
• Electrical outlet : five terminals

Environmental Index :

• Operating temperature -25℃to 70℃
• Storage temperature -40℃to 85℃
• Humidity 5% to 95%

Package include:

• 1 pair Transmitter & Receiver
• 2x power supply (US/EU/UK/AU available)
• 1x instruction

Shipping :We Ship to Worldwide, the items will be shipped within 1~2 business days after your full payment !We ship it by epacket ,EMS, FedEx,DHL, China Post air mail as agreed...

Payment :Paypal.

ReturnPolicy:

2. All returned items MUST BE in the original packaging and you MUST PROVIDE us with the shipping tracking number, specific reason for the return, and your po#.

WarrantyandGuarantee:

1.Two years Warranty, Buy with confidence!
