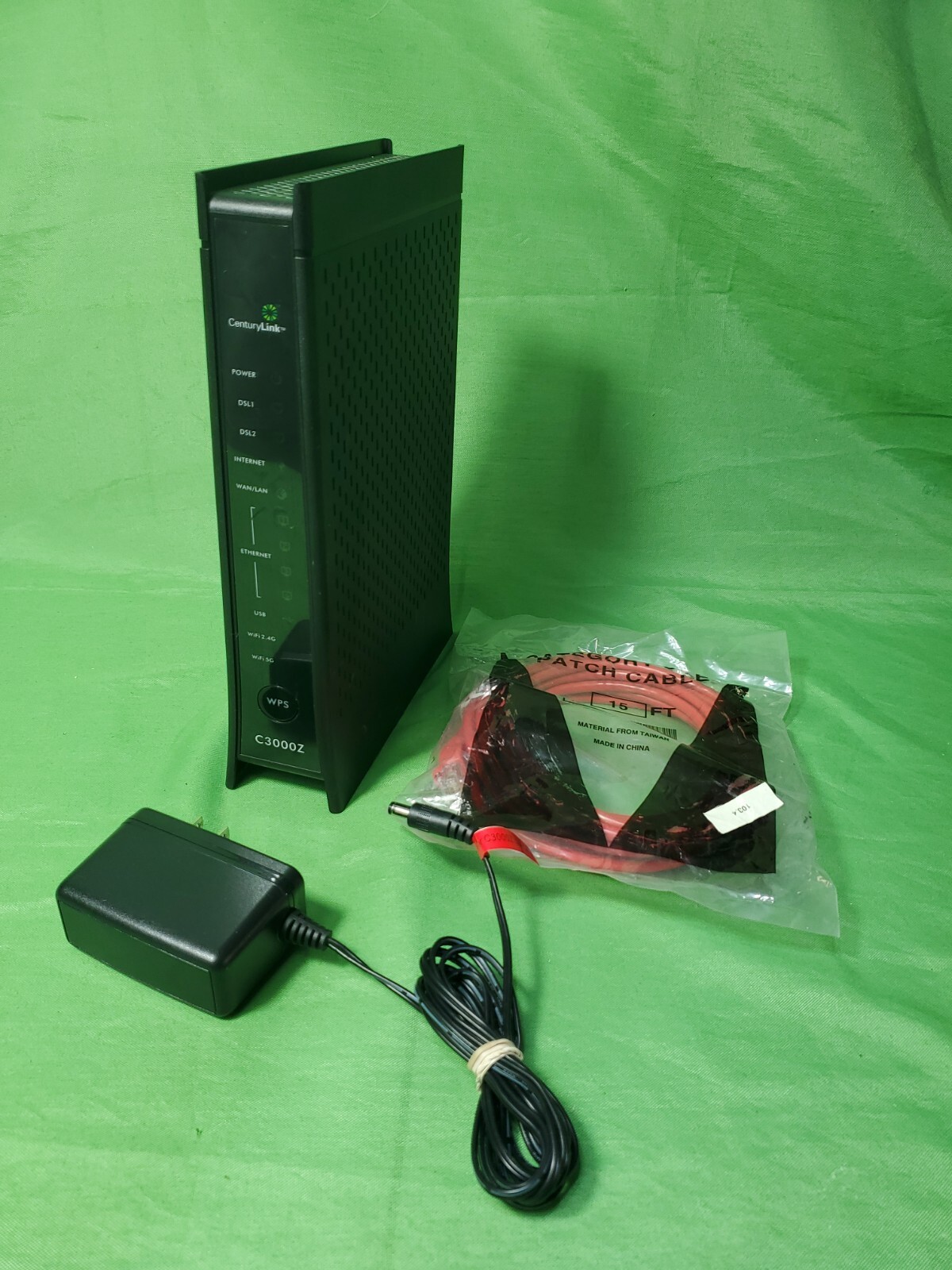

ZyXEL C3000Z Modem CenturyLink. Works great for, high speed cable internet. Broadcast through dual wireless bands. Condition pictured.
Gigabit Ethernet WAN / LAN Port
C3000Z includes a dedicated Gigabit Ethernet WAN Port. When CPE is operating in DSL mode, this port will work as a 5th Gigabit LAN Port. Carrier-class Wi-Fi for Seamless Mobility C3000Z offers dual-band WiFi rated at AC2200 and delivers speed of up to 1.7 Gbps* over 5Ghz and 450 Mbps* over 2.4Ghz. High powered Wi-Fi on both 5GHz and 2.4GHz APs extend coverage, unleashing the best wireless experience for homes with growing number of Wi-Fi devices. In addition, the ability to create multiple Wi-Fi networks with up to 4 SSIDs helps operators easily create separate WLAN networks for video, data and guests. Enhanced Security Features Forms Robust Protection Enhanced security ensures the protection of traffic from the WAN to the LAN. Through ZyXEL’s implementation of dual Ethernet firewalls (NAT and SPI), the C3000Z is able to identify and manage malicious content and applications. And, as part of its wireless security design, the C3000Z supports WPA2/WPA and features a hardware WPS button allowing customers to enjoy easy setup using a simple button. These features simplify the end user’s ability to set up and utilize a secure, wireless network.
ADSL1 – up to 7 Mbps
ADSL2 - up to 20 Mbps (40 Mbps pair-bonded)
VDSL2 – up to 100 Mbps (140 Mbps pair-bonded)
Fiber (GPON) – up to 940 Mbps
Note: Listed speeds reflect the maximum download speed the technology can deliver on CenturyLink services. In-home speeds may differ based on router setup, devices and other factors.
System Specifications
DSL:
• VDSL2 (G.993.2) Bonding
- 200Mbps/100Mbps* down/up data rates
- Bonding mode: 8a, 8b, 8c, 8d, 12a, 12b,
17a profiles
- Single line mode: 8a, 8b, 8c, 8d, 12a, 12b,
17a,30a, 35b profiles
- vector (G.993.5)
• ADSL/2/2+ Bonding
- ADSL (T1.413), G.dmt (G.992.1),
G.lite(G.992.2), ADSL2 (G.992.3),
ADSL2+ (G.992.5) compliant
- Reach Extended ADSL2 (Annex L)
- Annex M (G.992.3 / G.992.5)
- ATM/PTM transfer mode
• G.INP value support up to INP=16
• Auto detect for bonding / single line,
VDSL2 profile, and ADSL/2/2+
fallback modes
Wireless
• 5 GHz band
- 802.11ac support
- 1.7 Gbps* data rate
- Backward compatible to 802.11a/n
- 4x4 antenna array
• 2.4 GHz band
- 802.11n support
- 450 Mbps* data rate
- Backward compatible to 802.11b/g
- 3x3 antenna array
• WPA/WPA2, WPA-PSK/WPA2-PSK
(Wi-Fi Protected Access -
Pre-Shared Key)
• WPS (Wi-Fi Protected Setup)
• Wi-Fi scheduling
• Multiple SSID (up to 4)
Router
• NAT
• SIP ALG pass-through
• NAT port forwarding
• Dynamic DNS
• DHCP server/client/relay
• RIP I/RIP II support
• UPnP support
• IPv6 (6rd, dual stack IPv4/IPv6,
DHCPv6, PPPv6, Static IPv6
• QoS
Firewall
• Stateful Packet Inspection (SPI)
• Denial of Service (DoS) prevention
Security
• VPN (IPSec, PPTP) pass-through
• URL blocking
Management
• Standard CenturyLink GUI
• TR-064
• TR-069 HTTPS support
• Logs and statistics
• Remote management control:
Telnet, Web, SSH
• CLI command via Telnet/console
Hardware Specifications
Interface:
• WAN: 1 10/100/1000Mbps Ethernet Port
• LAN: 4 x 10/100/1000Mbps Ethernet Ports
• Reset: One reset/restore factory
default button
• USB
• DSL
LED:
• Power/System
• DSL 1-2
• Internet
• WAN/LAN
• LAN1-4
• USB
• WLAN-2.4G
• WLAN-5G
• WPS
Power supply:
• 12V/2A
Physical Specifications
Item dimensions (W x D x H):
•170(W) x50 (D) x 250(H) mm
Environmental Specifications
Operating Environment:
• Temperature: 0ºC to 40ºC
• Humidity: 20% to 85% RH
Storage Environment:
• Temperature: -20ºC to 60ºC
• Humidity: 20% to 90% RH
(Non-condensing)
