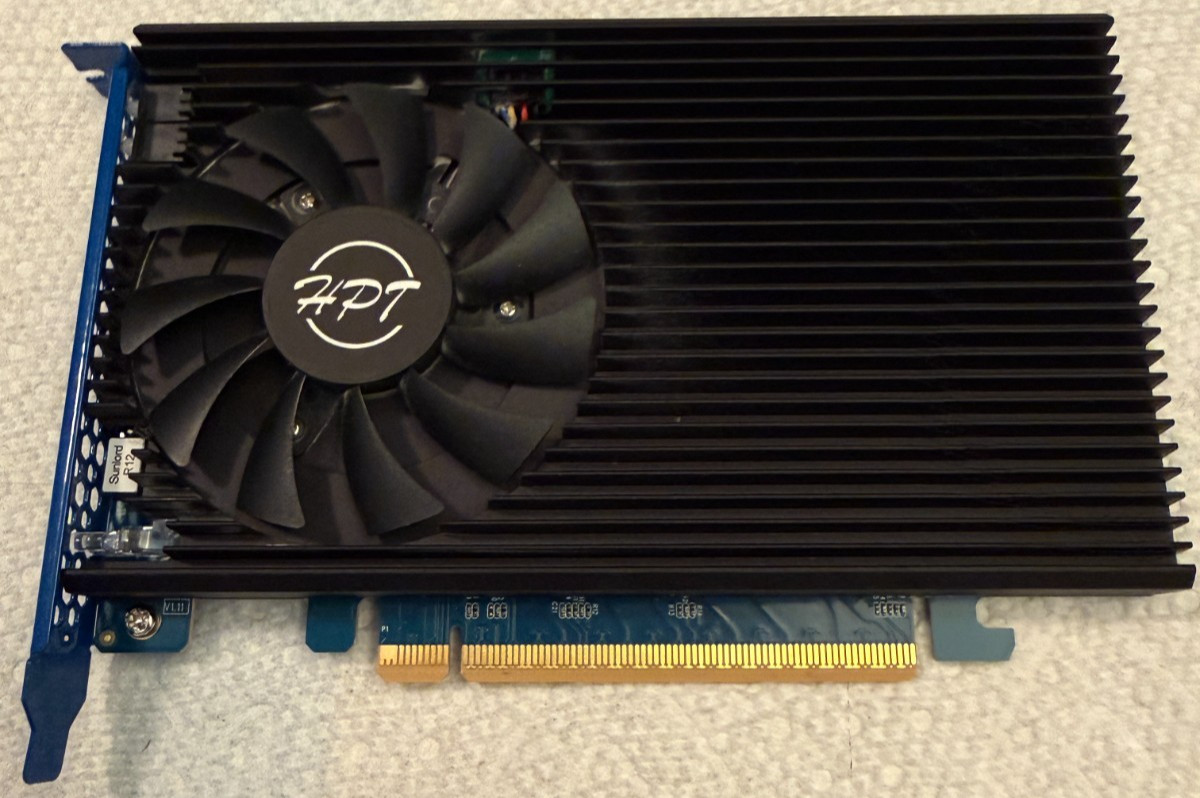

HighPoint Rocket 7604A PCIe Gen5 x16 to 4x M.2 NVMe RAID AICModel R7604A
CONDITIONUsed, like new. Original factory box and all accessories included. No cosmetic wear, bracket straight, connector fingers clean, fan spins smooth and quiet. Bench tested and fully functional.
SPECIFICATIONSHost interface: PCIe 5.0 x16Switch IC: Broadcom PEX89048, 48-lane PCIe Gen5Ports: 4 independent M.2 slots, dedicated PCIe 5.0 x4 per slotM.2 sizes supported: 2242, 2260, 2280RAID modes: 0, 1, 10, Single DiskThroughput: up to 64 GB/s theoretical, 56 GB/s real worldIOPS: up to 12 millionMaximum capacity: up to 32TBCooling: anodized aluminum heatsink with integrated low-noise fanCard length: 167mm, half-length full-heightOS support: Windows and Linux, x86 Intel/AMD and ARM
WHAT IS INCLUDEDRocket 7604A cardOriginal factory box and foam insertAccessories as originally shipped, including mounting screws and hardwareNo M.2 SSDs are included
BUYER NOTESRAID is driver-managed through the HighPoint driver and WebGUI, not a hardware RAID ASIC. Driver and management software are free downloads from the manufacturer.Host slot must be PCIe x16. Gen5 slot required for full rated bandwidth. Backward compatible with Gen4 and Gen3 at reduced speed.Ships in the original box inside a padded outer carton, antistatic bag.
Sold as tested and working.
