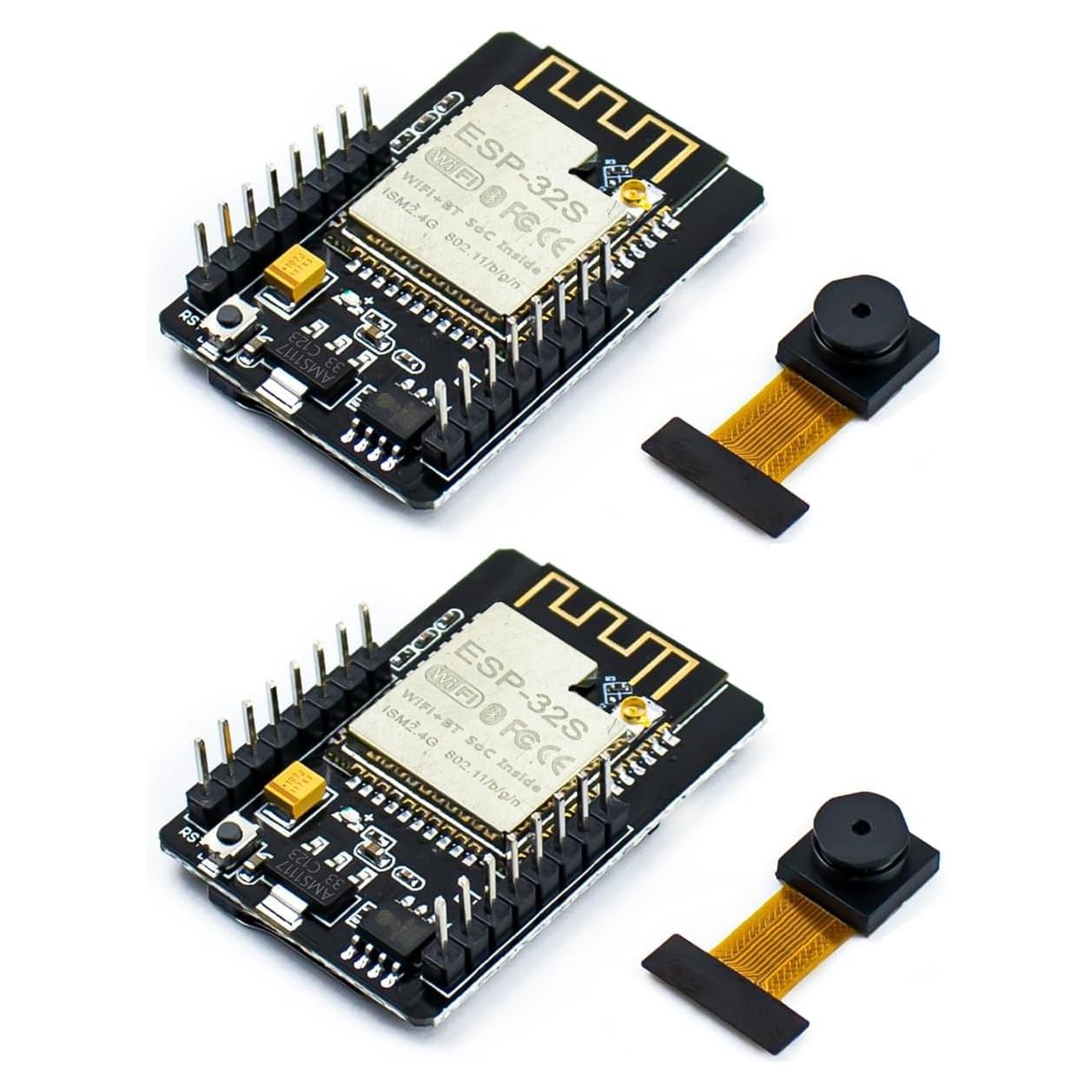

Hosyond 2Pcs ESP32-CAM Wireless WiFi+Bluetooth Development Board
Product Details

• Publisher: Hosyond
• Publication date: 0
• ISBN-13: 076-1325160632

• ESP32CAM is based on ESP32 chip and OV camera module, use low-power dual-core 32-bit CPU, which can be used as an application processor.
• The main frequency is up to 240MHz, and the computing power is up to 600 DMIPS.
• Built-in 520 KB SRAM , external 8MB PSRAM ,support UART/SPI/I2C/PWM/ADC/DAC and other interfaces;Support picture wireless upload, TF card, multiple sleep modes, STA/AP/STA+AP working mode, secondary development.
• It is an ideal solution for IoT applications. The ESP-32CAM comes in a DIP package that plugs directly into the backplane for rapid production.
• ESP-32CAM can be widely used in various IoT applications. Suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals, etc.

Parameter：Use low-power dual-core 32-bit CPU, which can be used as an application processorThe main frequency is up to 240MHz, and the computing power is up to 600 DMIPSBuilt-in 520 KB SRAM, external 8MB PSRAMSupport UART/SPI/I2C/PWM/ADC/DAC and other interfacesSupport OV2640, OV3660 and OV7670 cameras, built-in flashSupport picture wireless uploadSupport TF cardSupport multiple sleep modesEmbedded Lwip and FreeRTOSSupport STA/AP/STA+AP working modeSupport Smart Config/AirKiss one-click network configurationSupport secondary developmentSpecificationsWorking voltage 4.75-5.25VSPIFlash default 32MbitRAM internal 520KB + external 8MB PSRAMSupport interface (2Mbps) UART, SPI, I2C, PWMSupport TF card, maximum support 4GIO port 9Serial port rate default 115200bpsPower consumption Turn off the flash: 180mA@5VTurn on the flash and adjust the brightness to the maximum: 310mA@5VDeep-sleep: The lowest power consumption can reach 6mA@5VModerm-sleep: the lowest can reach 20mA@5VLight-sleep: the lowest can reach 6.7mA@5VSecurity WPA/WPA2/WPA2-Enterprise/WPSWorking temperature -20 ℃~ 70 ℃Storage environment -40 ℃~ 125 ℃,
