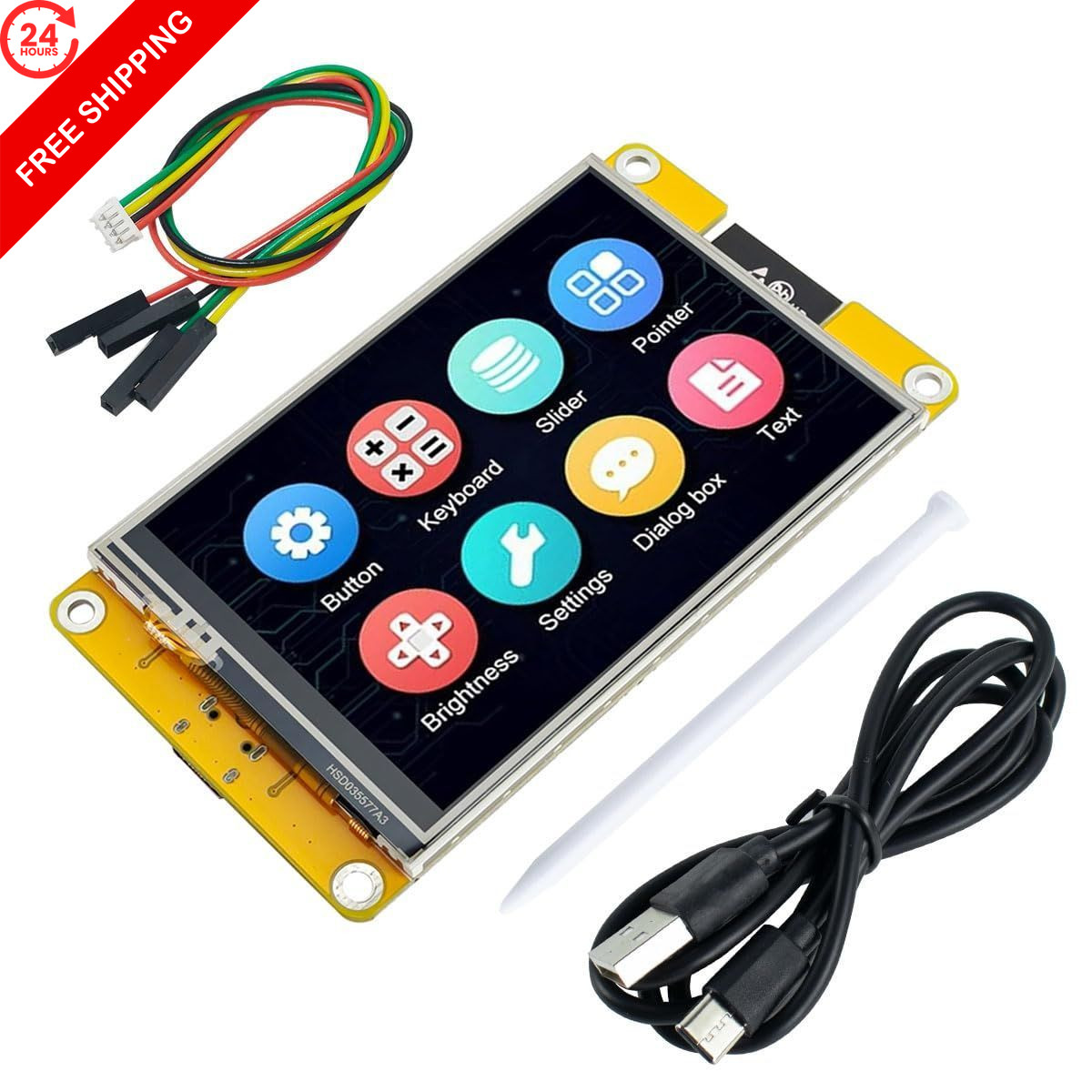

Hosyond 3.5'' 320x480 Touch Screen ESP32 Display with WiFi+BT, ST7796U 3.5"
Product Details

• Publisher: Hosyond
• Publication date: 0
• Item weight: 127 g

• Controller: Adopts ESP32-32E module, dual-core MCU, integrated Wi-Fi and Bluetooth, main frequency up to 240MHz, memory of 520KB SRAM and 448KB ROM, 4MB flash memory.
• Touch Screen: 3.5-inch LCD color screen, resolution of 320x480, supports 16-bit RGB 65K color display, rich colors, with resistive touch function.
• Rich Expansion Interface: Equipped with TF card slot, serial port interface, temperature and humidity sensor interface (DHT11 interface) and reserved IO interface.
• Multi-function: Contains LCD display, backlight control circuit, touch screen control circuit, speaker drive circuit, photosensitive circuit and RGB-LED control circuit.
• Convenient development: Provides compatible Arduino library functions and sample programs, supports one-click download of programs, and supports Arduino IDE, ESP IDE, Micropython and Mixly development.

Features:●3. 5-inch color screen, support 16 BIT RGB 65K color display, display rich colors●320X480 resolution●The sample program has been programmed in the factory and can be plugged in●With TF card slot for easy expansion storage●Provide arduino library functions and sample programs to facilitate rapid secondary development●Support one-click download program●Military-grade process standards, long-term stable work●Supports lithium battery power supply, supports both charging and discharging, and has over charging and over discharging protectionProduct Parameters:Display color: RGB 65K colorSize: 3.5 inchType: TFTDriver chip: ST7796Resolution: 320*480(Pixel)Effective display area: 55.2*85(mm)Module size: 55.34*101.5(mm)View: >60°Operating temperature: -20℃~70℃storage temperature: -30℃~80℃Operating Voltage: 5VPower consumption: About 115mAProduct weight: About 50gPackage includes:1 x 3.5'' ESP32 Dispaly Module1 x USB Cable1 x Touch Pen1 x 4Pin Connector Cable1 x Packaging box for display
