IBM BladeCenter BNT Nortel L2/3 Switch Module 32R1860 32R1869

Dear customer,

When there might be a difference between the automatic generated specifications by the system, and the hand written/typed description, then please be aware that the only correct description is what's written by our selves here in the description.
Specifications above might be slightly different.
Thanks for your understanding.

MODULE ONLY

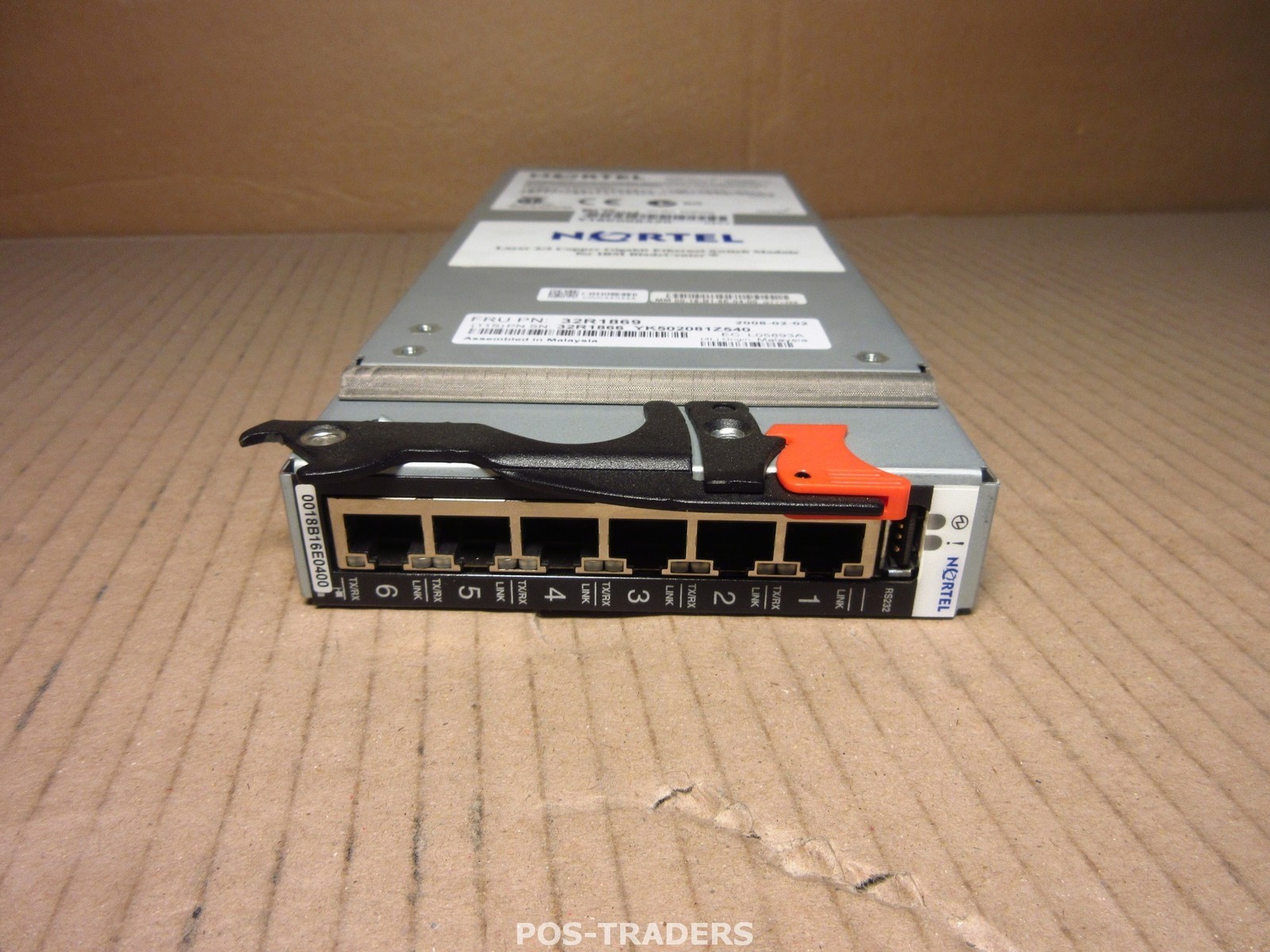

See photos for actual item!

Price isfor 1 item

BNT Layer 2/3 Copper Gb Ethernet Switch

This product is for IBM BladeCenterIBM OPTION:32R1860
IBM FRU:32R1869

Features and specificationsThe IBM BladeCenter Layer 2/3 Copper and Fiber Gigabit Ethernet Switch Modules for standard mode of operation includes the following features and functions:

• Internal ports
  • 14 internal full-duplex Gigabit ports, one connected to each of the blade servers in the BladeCenter unit
  • Two internal full-duplex 10/100 Mbps ports connected to the management module
• External ports
  • Copper switch: Six 1000BASE-T copper RJ-45 connections for making 10/100/1000 Mbps connections
  • Fiber switch: Six 1000BASE-SX SFP transceiver-based LC fiber connections for making 1000 Mbps connections
  • An RS-232 serial port that provides an additional means to install software and configure the switch module
• Scalability and performance
  • Autosensing 10/1000/1000 Mbps external Ethernet ports for bandwidth optimization
  • Non-blocking architecture with wire-speed forwarding of traffic
  • Media access control (MAC) address learning: automatic update, supports up to 16 K MAC addresses
  • Up to 128 IP interfaces per switch
  • Static, EtherChannel, and LACP (IEEE 802.3ad) link aggregation, up to 6 Gb of total bandwidth per switch, up to three trunk groups, and up to six ports per group
  • Support for jumbo frames (up to 9216 bytes)
  • Broadcast/multicast storm control
  • IGMP snooping for limit flooding of IP multicast traffic (IGMP V1, V2, and V3)
  • IGMP filtering to control multicast traffic for hosts participating in multicast groups (IGMP V1, V2, and V3)
  • Configurable traffic distribution schemes over trunk links based on source/destination IP addresses, MAC addresses, or both
  • Fast port forwarding and fast uplink convergence for rapid STP convergence

Comes as shown on picture, if something is not on the picture it's not included unless stated otherwise.
