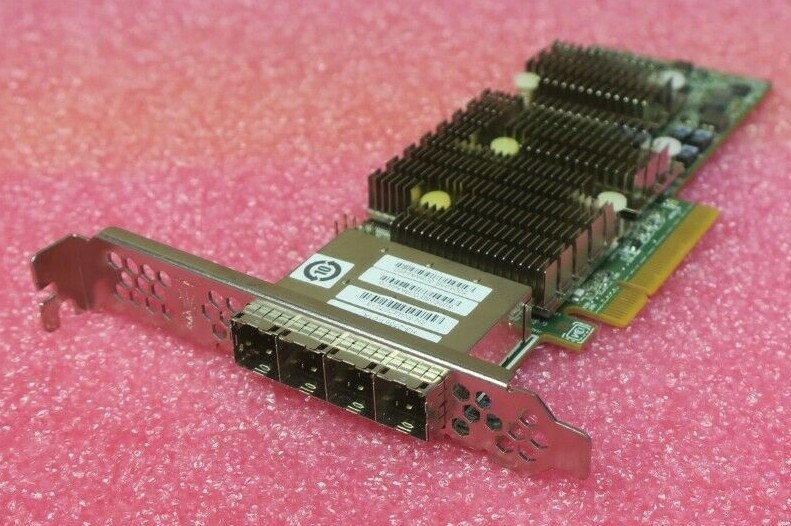

IBM LSI Quad-Port 9206-16e 4x Mini-SAS HD 6Gb/s SAS Host Bus Adapter HBA 00Y7062 For Sale
|
 When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
IBM LSI Quad-Port 9206-16e 4x Mini-SAS HD 6Gb/s SAS Host Bus Adapter HBA 00Y7062IBM P/N:00Y7062Model:9206-16e In Good Condition, Full Working OrderTested2 Year WarrantyLow Profile Card With Full Height BracketIncluded - 1 x IBM LSI Quad-Port 9206-16e 4x Mini-SAS HD 6Gb/s SAS Host Bus Adapter HBA 00Y7062
Overview
- IO Controller: Two, LSISAS2308/ Fusion MPT 2.0
- Storage Connectivity Data Transfer Rates: 16 ports; 6Gb/s SAS 2.1 compliant
- SAS Bandwidth:
- Half Duplex
- 2400MB/s, x4, 6Gb/s SAS lanes
- Port Configurations:
- 16 ea, x1 ports (individual drives)
- 4 ea, x4 wide ports
- 2ea , x8 wide ports
- Host Bus: x8 lane, PCI Express 3.0 compliant
- PCI Data Burst Transfer Rates:
- Half Duplex
- 8000MB/s, x8, PCIe 3.0
- Physical Dimensions: 68.90 x 167.65 mm
- Connectors: Four (x4) mini-SAS HD external connector(SFF8644)
- Brackets: Full height and low profile card
- Cable Support: Passive Copper, Active Copper, Active Optical
- Operating Voltage: +12V +/-8%; 3.3V +/-9%
- PCI Power (Nominal): 25.8W
- Device Support: 1024-SAS/SATA devices
VAT @ 20% INCLUDED IN PRICE - VAT INVOICE PROVIDED £80 excluding VATVAT IS NOT PAYABLE BY PURCHASERS OUTSIDE OF THE UKCS 278874 -9  |
| | |
