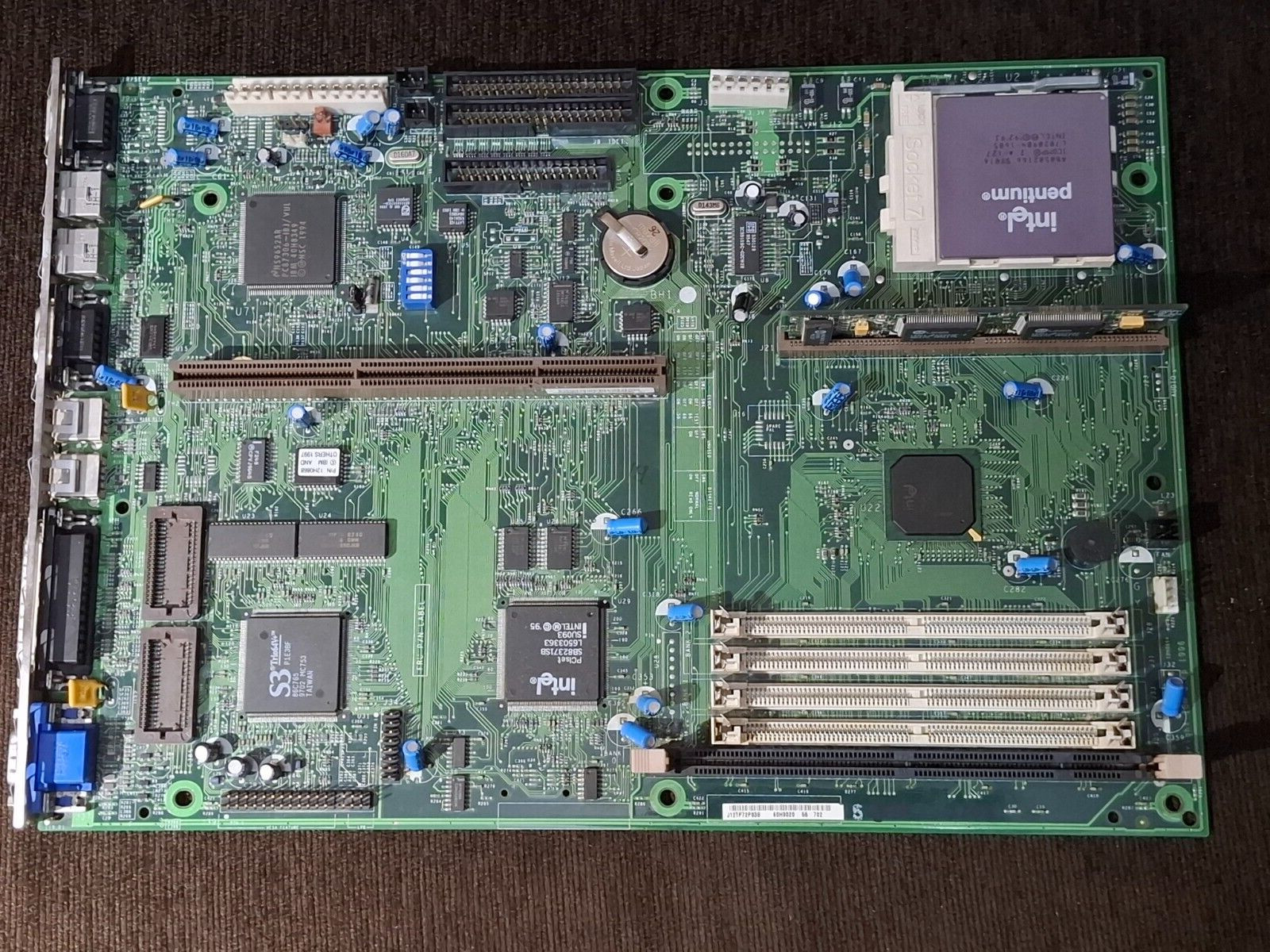

Motherboard IBM PC 330SERIES TYPE 6577 9BT System Board 60H9020 Socket 7 +CPU Intel Pentium SY016/A80502166/(Without fan andheatsink) + IBM 07H1150-256KB L2 CacheModule 40H8145 forCOAST Slot to Expand the Level 2 + Backpanel.
The Motherboard IBM PC 330 SERIES TYPE 6577 9BT SystemBoard 60H9020 Socket 7 with Chipset INTEL 82439JHX (430HX - Triton II) + CPU Intel Pentium SY016/A80502166/(Without fan andheatsink) + IBM 07H1150-256KB L2 Cache Module 40H8145for COAST Slot to Expand the Level 2 + Backpanel is in perfect condition! Ready configuration.
It has been tested and workswithout notice!
Photos are of the actualitems you will receive!
Please read the descriptioncarefully!
It has been tested and works without notice!Please read thedescription carefully.NO Books/paperwork,drivers, software,/ or support included(sorry).Photos are of the actual items you will receive.
1
Power connector (5 V)
2
Modem ring
3
LAN Wake-Up
4
Modem ring
5
Password jumper (CMOS clear)
6
Auxiliary power
7
On/Off switch
8
Configuration switch set
9
Diskette connector
10
Primary IDE connector
11
Secondary IDE connector
12
Battery
13
Power connector (3.3 V)
14
Voltage Regulator connector (P55C only)
15
Processor upgrade socket
16
Cache memory module connector
17
Power LED connector
18
Hard disk access LED connector
19
SIMM connectors (Bank 1/2)
20
DIMM connector (Bank 0)
21
Riser connector
22
VESA passthrough connectors
23
Video upgrade sockets
24
Video port
25
ECP/EPP parallel port
26
USB ports (1, 2)
27
Serial (A) port
28
Mouse port
29
Keyboard port
30
Infrared port
The following tables contain the switch and jumper setting information. (D)indicates the default setting.
Speed
SW1-1
SW1-2
SW1-3
SW1-4
75 MHz
Off
Off
On
On
90 MHz
Off
Off
On
Off
100 MHz
Off
Off
Off
On
120 MHz
On
Off
On
Off
133 MHz
On
Off
Off
On
150 MHz
On
On
On
Off
166 MHz
On
On
Off
On
200 MHz
Off
On
Off
On
Description
SW1-5
SW1-6
Normal
Diskette
Operation
N/A
Off (D)
Read-Only
Diskette
Operation
On
Jumper
Setting
Description
J15
1-2
2-3 (D)
Password Disabled Password Enabled
Search Keywords
Hint Category
Hardware Maintenance Information
Date Created
25-03-97
Last Updated
30-04-98
Brand
IBM PC
Product Family
PC 330
Machine Type
6577
Model
65779BT
General information
Type
CPU / Microprocessor
Market segment
Desktop
Family
Intel Pentium
CPU part number
§ A80502166is an OEM/tray microprocessor
166 MHz
Bus speed
66 MHz
Clock multiplier
2.5
Package
296-pin Ceramic Staggered Pin Grid Array (SPGA)
1.95" x 1.95" (4.95 cm x 4.95 cm)
Socket
Socket 7
Upgrade options
Pentium MMX overdrive 200
S-spec numbers
Part number
Instruction set
x86
P5
Processor codename
P54CS
Core stepping
cC0
CPUIDs
52C
252C
0.35 micron
3.3 million transistors
Data width
32 bit
Data bus width
64 bit
Floating Point Unit
Level 1 cache size
Level 2 cashe size
8 KB 2-way set associative code cache
8 KB 2-way set associative write-back data cache
256KB or 512KB (with Cache Module and COAST Level 2 Expansion Slot).
Physical memory
4 GB
Up to 2 processors
Low power features
§ System Management Mode
§ Clock Control
§ SL power-management features
On-chip peripherals
§ Memory Management Unit
§ Local Advanced Programmable Interrupt Controller
Electrical / Thermal parameters
3.135V / 3.3V / 3.6V
0°C - 70°C
5.4 Watt / 15.3 Watt
Thermal Design Power
14.5 Watt
Pentium 166 MHz Overclocking
Notes on sSpec SY016/A80502166/
• This is a second-hand processor without a heatsink and fan.
• Allows passive cooling due to low consumption (TDP-14,5W)
• L2 cache size: 256KB or 512KB (with Cache Module and COAST Level 2 Expansion slot).
