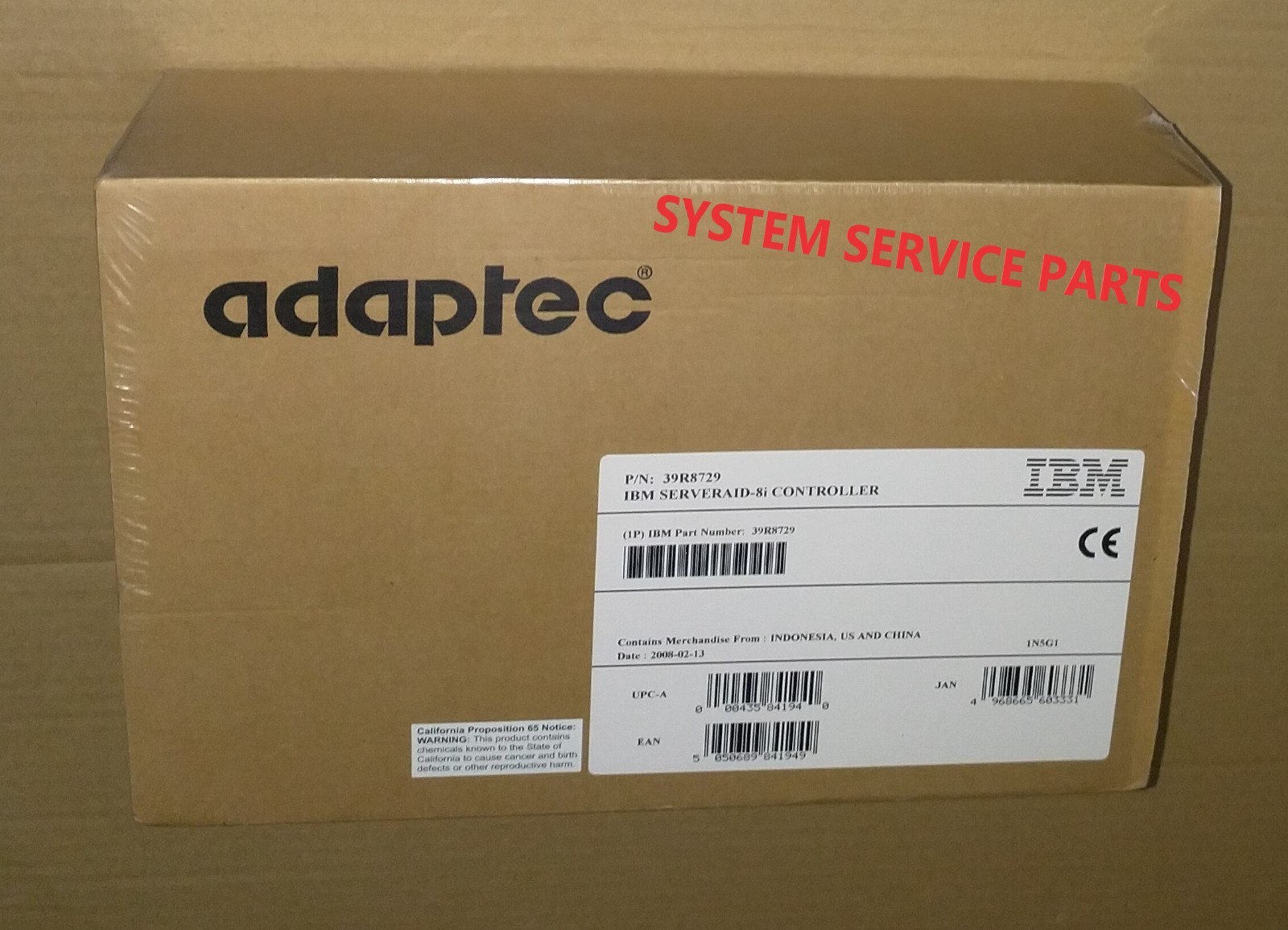

IBM ServeRAID 8i RAID CONTROLLER KIT PCI-X 64BIT 256MB CACHE 39R8731 39R8729 NEW For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

IBM ServeRAID 8i RAID CONTROLLER KIT PCI-X 64BIT 256MB CACHE 39R8731 39R8729 NEW

Price: CY $58.00

INCLUDED in the Package :1 X IBM ServeRAID-8i SAS-SATA RAID Controller CARD +

: 1 X IBM BATTERY FRU : 13N2256

: 1 X IBM HOLDER KIT - blue

: 1 X Low Profile Bracket

: 1 X High Proifile Bracket

2. If possible leave your telephone #, which is required by most carriers.
3. For customers from eastern Europe (Russia, Ukraine, Slovakia, CzechRepublic, Hungary, Poland, Lativa, Romania, etc.), South America (Brazil,Chile, Argentina, etc.)
and Africa, your items will be shipped via EMS (most cases)or DHL, due to the customs problems other carriers encountered.
4. For customers from some countries in Asia, including Japan, Korea, Malaysiaand Singapore, your items will be shipped via SF, because of a fasterdelivery.

IBM FRU P/N : 39R8731
IBM P/N KIT : 39R8729
IBM ORDER P/N : 25R8117
Manuf. P/N : 4005SAS/256
UPC-A # : 000435841940
EAN # : 5050689841949
JAN # : 4968665603331
Zero Channel RAID (ZCR) controller
RAID levels : 0, 1, 5, 1E, 00, 10, 50, 1E0, 5EE
Half-length adapter
Dedicated PCI-X 64-bit ZCR slot at 133 MHz
Supports independent and adjustable stripe sizes of 256 KB and 512 KB
256 MB cache
600 MHz processor
Supports Logical Drive Migration, Global Hot Spare, Copyback, and FlashCopy
Battery backup
The card will either have a blue handle attached (for use with x260, x366, x460) or a PCI bracket attached (for use with x206m and x306m)
No connectors for disks
Battery attached
Operating temp. : 5° to 40°C (41° to 104°F)
Shipping temp. : -40° to 70°C (-40° to 158°F)
Vibration Operational : 5-500 Hz, 0.21 Grms flat spectrum 0.000089 g2/Hz Random Vibration
Shock Operational : 5 G's for 11 ms, half sine
Shock Non-Operational : 15 G 11 ms half sine
Humidity Operating : 10% to 90% RH @ 40°C (104°F) non-condensing
Humidity Non-Operating : Up to 93% RH @ 40°C (104°F)
