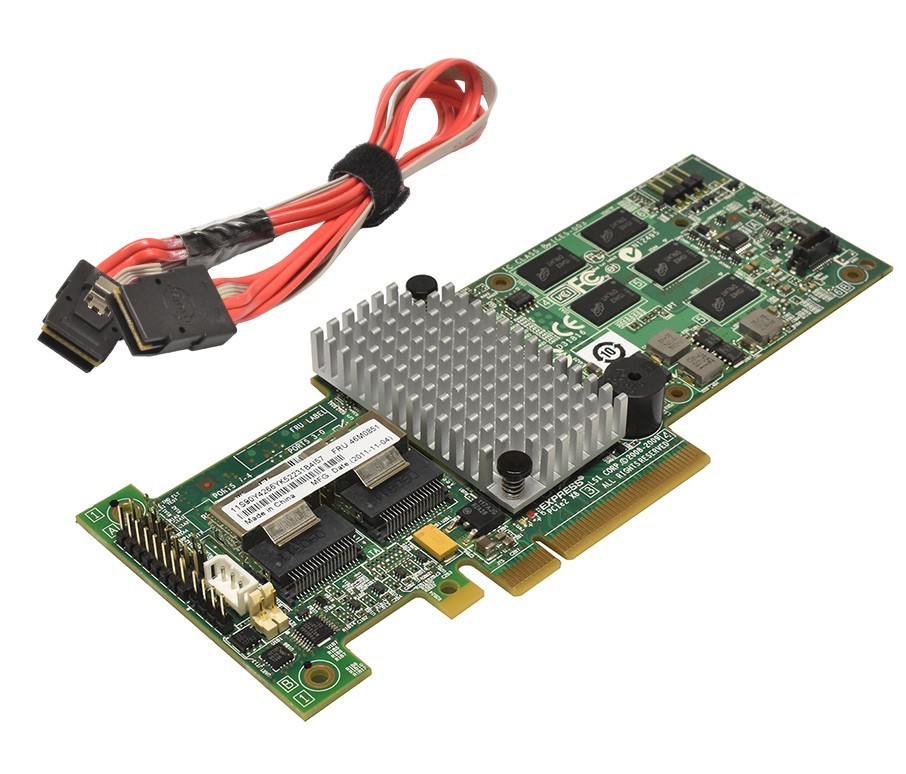

IBM ServeRAID M5015 6Gb/s RAID Controller L3-25121-79B 46M0851 + SAS Cable No Bracket
Description
IBM
ServeRAID M5015 6Gb/s RAID Controller + SAS Cable No Bracket
Model: ServeRAID M5015
MPN : L3-25121-79B
IBM FRU: 46M0851
Technical data / Specifications
Manufacturer / Manufacturer
LSI for IBM
Type / Device Type
RAID Controller
Form Factor
Low-profile (without bracket)
Interfaces / Interfaces
2x SFF-8087
Bus Interface
PCI-Express x8
RAID Levels
0, 1, 5, 10, 50, 60
Memory / Memory
512MB
Processor / Processor
LSI SAS2108 6Gbps RAID on Chip (ROC)
Data Transfer Rate
6.0 Gbps per port
OS / Operating Systems
Microsoft Windows Server 2003, 2003 R2, x64
Microsoft Windows Server 2008, 2008 R2, x64, x86
Microsoft Windows Server 2012
Red Hat Enterprise Linux 4, Linux 5, Linux 6
SUSE LINUX Enterprise Server 10, 11
Solaris 10 Operating System
VMware ESX 4.0, 4.1, ESXi 4.0, 4.1
VMware vSphere 5.0, 5.1 (ESXi)
Compatibility / Compatibility
IBM System x3100 M4, x3200 M3, x3250 M4,
x3400 M3, x3500 M3, x3550 M2, x3550 M3,
x3630 M3, x3650 M2, x3650 M3, x3690 X5,
x3755 M3, x3850 X5, x3950 X5
Standards
EN55022, EN50082, EN60950;FCC Class A,Class B;
Ul1950; UL; CSA C22.2; VCCI; AS3548; BSMI; MIC
Delivery / Scope of delivery
1x IBM ServeRAID M5015 Controller FRU 46M0851
1x SAS Cable 49Y4849
More information and details can be found on the pages of the manufacturer.
Please refer to the manufacturer's website for more information and details.
All parts are used but 100% OK!!!
All parts are used but 100% fine!!!
